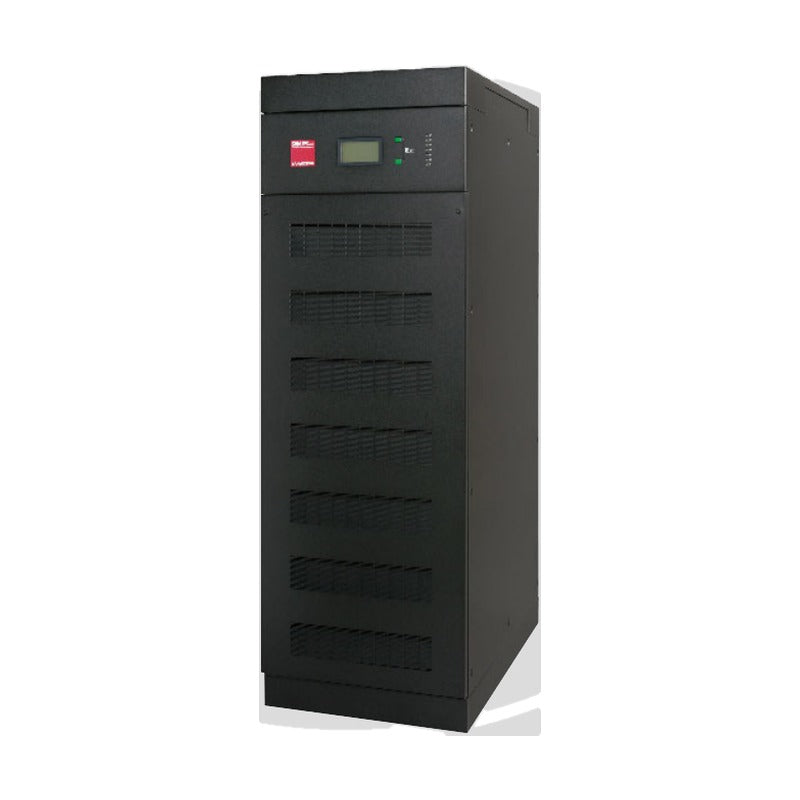

Sanyo Denki SANUPS A22A Modular UPS Cabinet (400 V 3-Phase Output)

Sanyo Denki SANUPS A22A Modular UPS Cabinet (400 V 3-Phase Output)

SANUPS A22A modular UPS cabinets accept 5 kVA inverter modules and battery modules to build 3-phase output systems.

Key features

  • Capacity scalable in 5 kVA increments with A22A502B001E inverter modules
  • Backup time extended by adding BCA22AA00E battery modules (BPA22AA00E packs)
  • 94.5% efficiency; double conversion online topology
  • Wide input range 240-460 V and 46-54 Hz (400 V / 50 Hz setting)
  • Front-access hot-swap of modules; maintenance during parallel redundant operation
  • LAN interface cards PRLANIF022A / 024A / 013B-US available

Specifications

Topology Double conversion online, modular
Input 3-phase 4-wire 380/400/415 VAC
Output 3-phase 4-wire 380/400/415 VAC
Cabinet footprint 600 x 1000 mm per bay, H 1700 mm
Paint color Black (Munsell N1.5)
Source SANUPS A22A catalog P1037B012, p. 2-5
PDA22AT04NB001E Module slots: 4 | UPS capacity: 5-20 kVA | Backup: 10-90 min | Cabinet: Half-size, 1 bay | Mass: 125 kg
PDA22AT07NB001E Module slots: 7 | UPS capacity: 5-35 kVA | Backup: 10-90 min | Cabinet: 1 bay | Mass: 160 kg
PDA22AT14NB001E Module slots: 14 | UPS capacity: 10-70 kVA | Backup: 10-90 min | Cabinet: 2 bays | Mass: 320 kg
PDA22AT21NB001E Module slots: 21 | UPS capacity: 20-105 kVA | Backup: 10-90 min | Cabinet: 3 bays | Mass: 480 kg
PDA22AT28NB001E Module slots: 28 | UPS capacity: 30-70 kVA | Backup: 30-90 min | Cabinet: 4 bays | Mass: 640 kg
PDA22AT35NB001E Module slots: 35 | UPS capacity: 40-85 kVA | Backup: 30-90 min | Cabinet: 5 bays | Mass: 800 kg
PDA22AT42NB001E Module slots: 42 | UPS capacity: 45-105 kVA | Backup: 30-90 min | Cabinet: 6 bays | Mass: 960 kg
UPS SystemsSanyo Denki
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS A22A Modular UPS Cabinet (400 V 3-Phase Output)

Brand Sanyo Denki·UPS Systems

Available part numbers (7)

PDA22AT04NB001E, PDA22AT07NB001E, PDA22AT14NB001E, PDA22AT21NB001E, PDA22AT28NB001E, PDA22AT35NB001E, PDA22AT42NB001E

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PDA22AT04NB001EModule slots: 4 | UPS capacity: 5-20 kVA | Backup: 10-90 min | Cabinet: Half-size, 1 bay | Mass: 125 kg
PDA22AT07NB001EModule slots: 7 | UPS capacity: 5-35 kVA | Backup: 10-90 min | Cabinet: 1 bay | Mass: 160 kg
PDA22AT14NB001EModule slots: 14 | UPS capacity: 10-70 kVA | Backup: 10-90 min | Cabinet: 2 bays | Mass: 320 kg
PDA22AT21NB001EModule slots: 21 | UPS capacity: 20-105 kVA | Backup: 10-90 min | Cabinet: 3 bays | Mass: 480 kg
PDA22AT28NB001EModule slots: 28 | UPS capacity: 30-70 kVA | Backup: 30-90 min | Cabinet: 4 bays | Mass: 640 kg
PDA22AT35NB001EModule slots: 35 | UPS capacity: 40-85 kVA | Backup: 30-90 min | Cabinet: 5 bays | Mass: 800 kg
PDA22AT42NB001EModule slots: 42 | UPS capacity: 45-105 kVA | Backup: 30-90 min | Cabinet: 6 bays | Mass: 960 kg
