Sanyo Denki SANUPS A23D Online UPS (30-100 kVA, 3-Phase 200 V)

Sanyo Denki SANUPS A23D Online UPS (30-100 kVA, 3-Phase 200 V)

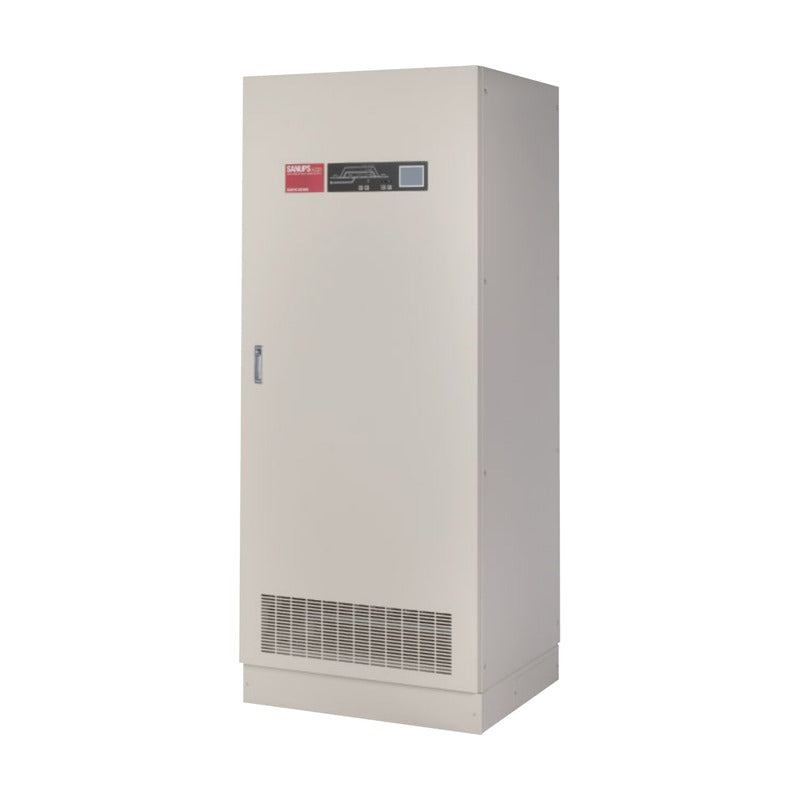

The SANUPS A23D is a 3-phase 200 V double-conversion online UPS from 30 to 100 kVA with separate battery panels.

Key features

  • Conversion efficiency over 94% (up to 95.6%)
  • Wide input voltage range reduces battery transfers and degradation
  • Walk-in function for operation with emergency generators
  • Color LCD touch panel; cooling fans and electrolytic capacitors rated 15 years
  • Battery panels for 5/10/30/60/120/180 min backup
  • Optional LAN interface card with Modbus support; I/O panels TRA23D

Specifications

Topology Double conversion online
Voltage 3-phase 3-wire 200/210/220 V
Backup time 5/10/30/60/120/180 min (panel)
Paint color Ivory (Munsell 6.6Y 8.3/0.8)
Brand SANUPS
Source SANUPS A23D catalog P1052B003, p. 2-5
A23D303 Capacity: 30 kVA / 27 kW | Inverter panel W x D x H1: 600 x 700 x 1650 mm | Mass: 335 kg
A23D503 Capacity: 50 kVA / 45 kW | Inverter panel W x D x H1: 600 x 700 x 1650 mm | Mass: 350 kg
A23D753 Capacity: 75 kVA / 67.5 kW | Inverter panel W x D x H1: 800 x 700 x 1825 mm | Mass: 560 kg
A23D104 Capacity: 100 kVA / 90 kW | Inverter panel W x D x H1: 800 x 700 x 1825 mm | Mass: 570 kg
UPS SystemsSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS A23D Online UPS (30-100 kVA, 3-Phase 200 V)

Brand Sanyo Denki·UPS Systems

Available part numbers (4)

A23D303, A23D503, A23D753, A23D104

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A23D303Capacity: 30 kVA / 27 kW | Inverter panel W x D x H1: 600 x 700 x 1650 mm | Mass: 335 kg
A23D503Capacity: 50 kVA / 45 kW | Inverter panel W x D x H1: 600 x 700 x 1650 mm | Mass: 350 kg
A23D753Capacity: 75 kVA / 67.5 kW | Inverter panel W x D x H1: 800 x 700 x 1825 mm | Mass: 560 kg
A23D104Capacity: 100 kVA / 90 kW | Inverter panel W x D x H1: 800 x 700 x 1825 mm | Mass: 570 kg
