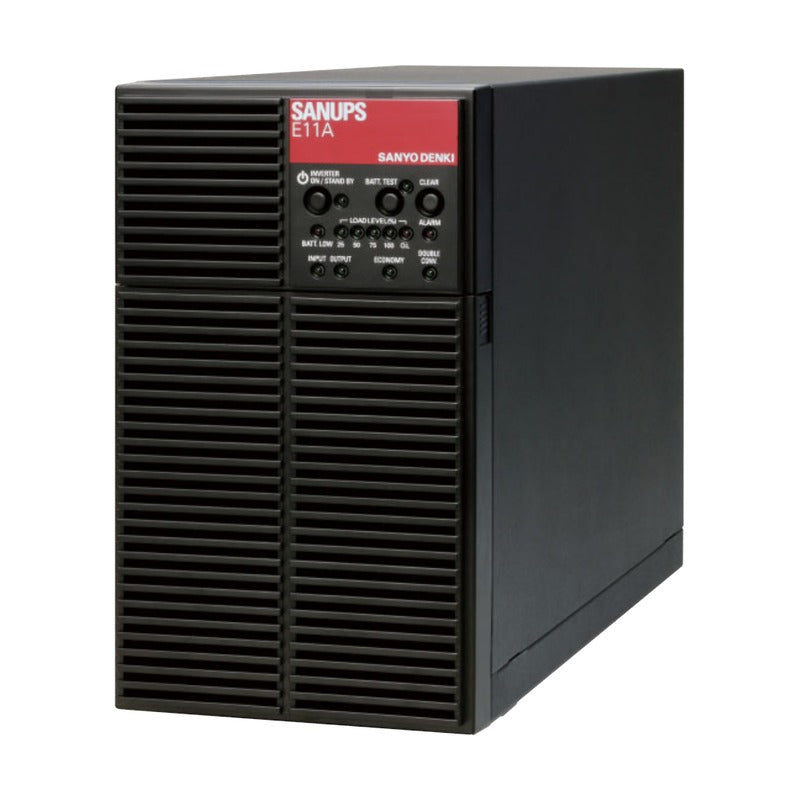

Sanyo Denki SANUPS E11A Hybrid UPS (0.35-1.5 kVA, 100 V)

Sanyo Denki SANUPS E11A Hybrid UPS (0.35-1.5 kVA, 100 V)

The SANUPS E11A is a 100 V single-phase hybrid UPS from 0.35 to 1.5 kVA that switches between double conversion, active filter and economy modes.

Key features

  • Hybrid topology: economy, active filter and double conversion modes selected automatically
  • Up to 95% conversion efficiency (1 kVA model in economy mode)
  • Automatic periodic battery self-test
  • Hot-swappable battery module (front access) on 0.75-1.5 kVA models
  • Tower (TW) and 2U rack/desktop versions; UL/CE/UKCA (UJ) models
  • Options: LAN card PRLANIF031, dry contact cards, outlet box P10037, remote switch

Specifications

Topology Hybrid
Voltage 100/110/115/120 V single-phase 2-wire
Output outlets NEMA 5-15R / 5-20R x 4
Battery Small VRLA lead-acid battery
Backup time 6 min (0.35/0.75 kVA), 5 min (1/1.5 kVA)
Source SANUPS E11A catalog P0978B011, p. 2-7
E11A102B001TWUJ Capacity: 1 kVA / 0.7 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, LAN card slot | Certification: UL/CE/UKCA
E11A102B011TWUJ Capacity: 1 kVA / 0.7 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL/CE/UKCA
E11A102B021TWUJ Capacity: 1 kVA / 0.7 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL/CE/UKCA
E11A152B001TW Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, LAN card slot | Certification: Standard
E11A152B001TWUJ Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-20P | Interface: RS-232C, LAN card slot | Certification: UL/CE/UKCA
E11A152B011TW Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: Standard
E11A152B011TWUJ Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-20P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL/CE/UKCA
E11A152B021TW Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: Standard
E11A152B021TWJ Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: Standard (as printed on p. 7)
E11A152B021TWUJ Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-20P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL/CE/UKCA
E11A351B001UJ Capacity: 0.35 kVA / 0.245 kW | Type: Compact desktop | Input plug: NEMA 5-15P | Interface: RS-232C | Certification: UL/CE/UKCA
E11A351B021UJ Capacity: 0.35 kVA / 0.245 kW | Type: Compact desktop | Input plug: NEMA 5-15P | Interface: RS-232C, transistor contact output | Certification: UL/CE/UKCA
E11A751B001TWUJ Capacity: 0.75 kVA / 0.525 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, LAN card slot | Certification: UL/CE/UKCA
E11A751B001UJ Capacity: 0.75 kVA / 0.525 kW | Type: 2U rack / desktop | Input plug: NEMA 5-15P | Interface: RS-232C, LAN card slot | Certification: UL/CE/UKCA
E11A751B011TWUJ Capacity: 0.75 kVA / 0.525 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL/CE/UKCA
E11A751B011UJ Capacity: 0.75 kVA / 0.525 kW | Type: 2U rack / desktop | Input plug: NEMA 5-15P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL/CE/UKCA
E11A751B021TWUJ Capacity: 0.75 kVA / 0.525 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL/CE/UKCA
E11A751B021UJ Capacity: 0.75 kVA / 0.525 kW | Type: 2U rack / desktop | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL/CE/UKCA
E11A102U001TWJ Capacity: 1 kVA / 0.7 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, LAN card slot | Certification: UL no. of E11A102B001TWUJ
E11A102U011TWJ Capacity: 1 kVA / 0.7 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL no. of E11A102B011TWUJ
E11A102U021TWJ Capacity: 1 kVA / 0.7 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL no. of E11A102B021TWUJ
E11A152U001TWJ Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-20P | Interface: RS-232C, LAN card slot | Certification: UL no. of E11A152B001TWUJ
E11A152U011TWJ Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-20P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL no. of E11A152B011TWUJ
E11A152U021TWJ Capacity: 1.5 kVA / 1.05 kW | Type: Tower | Input plug: NEMA 5-20P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL no. of E11A152B021TWUJ
E11A351U001J Capacity: 0.35 kVA / 0.245 kW | Type: Compact desktop | Input plug: NEMA 5-15P | Interface: RS-232C | Certification: UL no. of E11A351B001UJ
E11A351U021J Capacity: 0.35 kVA / 0.245 kW | Type: Compact desktop | Input plug: NEMA 5-15P | Interface: RS-232C, transistor contact output | Certification: UL no. of E11A351B021UJ
E11A751U001J Capacity: 0.75 kVA / 0.525 kW | Type: 2U rack / desktop | Input plug: NEMA 5-15P | Interface: RS-232C, LAN card slot | Certification: UL no. of E11A751B001UJ
E11A751U001TWJ Capacity: 0.75 kVA / 0.525 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, LAN card slot | Certification: UL no. of E11A751B001TWUJ
E11A751U011J Capacity: 0.75 kVA / 0.525 kW | Type: 2U rack / desktop | Input plug: NEMA 5-15P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL no. of E11A751B011UJ
E11A751U011TWJ Capacity: 0.75 kVA / 0.525 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, remote, EPO, card slot, OLC | Certification: UL no. of E11A751B011TWUJ
E11A751U021J Capacity: 0.75 kVA / 0.525 kW | Type: 2U rack / desktop | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL no. of E11A751B021UJ
E11A751U021TWJ Capacity: 0.75 kVA / 0.525 kW | Type: Tower | Input plug: NEMA 5-15P | Interface: RS-232C, dry contact/LAN card slot | Certification: UL no. of E11A751B021TWUJ
UPS SystemsSanyo Denki
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS E11A Hybrid UPS (0.35-1.5 kVA, 100 V)

Brand Sanyo Denki·UPS Systems

Available part numbers (32)

E11A102B001TWUJ, E11A102B011TWUJ, E11A102B021TWUJ, E11A152B001TW, E11A152B001TWUJ, E11A152B011TW, E11A152B011TWUJ, E11A152B021TW, E11A152B021TWJ, E11A152B021TWUJ + 22 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
