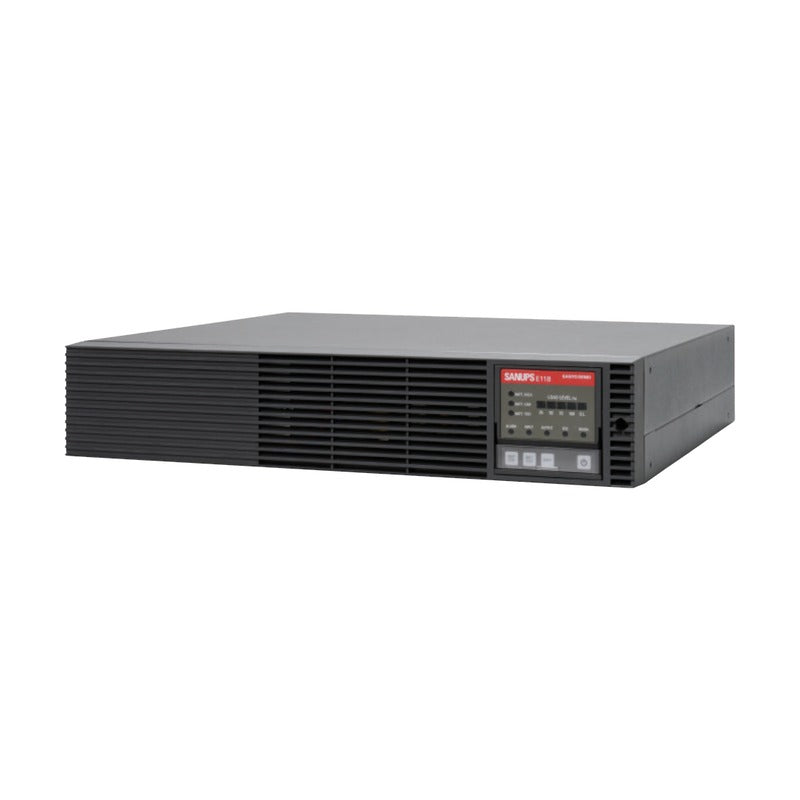

Sanyo Denki SANUPS E11B Hybrid UPS (100 V Model)

Sanyo Denki SANUPS E11B Hybrid UPS (100 V Model)

The SANUPS E11B 100 V model is a 2U hybrid UPS for single-phase loads that combines high-quality double conversion power with energy-saving economy operation.

Key features

  • Hybrid topology selects economy or double conversion mode by input conditions
  • Fixed double conversion mode versions (D) for uninterrupted transfer requirements
  • 3 min backup (5 min at PF 0.7); replacement battery packs S-BPE11B... and extended battery boxes
  • Rack or vertical installation; UL 1778 / CSA / EN 62040-1 certified UJ versions
  • RS-232C and USB PC ports, remote ON/OFF; optional dry contact and LAN cards
  • Options: vertical stands STAND2UA00, floor brackets, rack rails RM030-US, air filter FL011

Specifications

Topology Hybrid
Voltage 100/110/115/120 V single-phase
Backup time 3 min (5 min at PF 0.7)
Battery Small VRLA lead-acid battery
Height 2U (86 mm)
Source SANUPS E11B catalog P1041B012, p. 2-15
E11B102A001AM Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: A | Certification: Standard
E11B102A001AMUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: A | Certification: UL/CE/UKCA
E11B102A001DM Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: A | Certification: Standard
E11B102A001DMUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: A | Certification: UL/CE/UKCA
E11B102B001AM Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: B | Certification: Standard
E11B102B001AMUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11B102B001DM Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: B | Certification: Standard
E11B102B001DMUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11B152A001AM Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: A | Certification: Standard
E11B152A001AMUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Hybrid (auto transfer) | Revision: A | Certification: UL/CE/UKCA
E11B152A001DM Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: A | Certification: Standard
E11B152A001DMUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Fixed double conversion | Revision: A | Certification: UL/CE/UKCA
E11B152B001AM Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: B | Certification: Standard
E11B152B001AMUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11B152B001DM Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: B | Certification: Standard
E11B152B001DMUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11B202A001AM Capacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Hybrid (auto transfer) | Revision: A | Certification: Standard
E11B202A001AMT Capacity: 2 kVA / 1.6 kW | Input plug: Terminal block | Mode: Hybrid (auto transfer) | Revision: A | Certification: Standard
E11B202A001AMUJ Capacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Hybrid (auto transfer) | Revision: A | Certification: UL/CE/UKCA
E11B202A001DM Capacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Fixed double conversion | Revision: A | Certification: Standard
E11B202A001DMT Capacity: 2 kVA / 1.6 kW | Input plug: Terminal block | Mode: Fixed double conversion | Revision: A | Certification: Standard
E11B202A001DMUJ Capacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Fixed double conversion | Revision: A | Certification: UL/CE/UKCA
E11B302A001AM Capacity: 3 kVA / 2.4 kW | Input plug: NEMA L5-30P | Mode: Hybrid (auto transfer) | Revision: A | Certification: Standard
E11B302A001AMT Capacity: 3 kVA / 2.4 kW | Input plug: Terminal block | Mode: Hybrid (auto transfer) | Revision: A | Certification: Standard
E11B302A001AMUJ Capacity: 3 kVA / 2.4 kW | Input plug: NEMA L5-30P | Mode: Hybrid (auto transfer) | Revision: A | Certification: UL/CE/UKCA
E11B302A001DM Capacity: 3 kVA / 2.4 kW | Input plug: NEMA L5-30P | Mode: Fixed double conversion | Revision: A | Certification: Standard
E11B302A001DMT Capacity: 3 kVA / 2.4 kW | Input plug: Terminal block | Mode: Fixed double conversion | Revision: A | Certification: Standard
E11B302A001DMUJ Capacity: 3 kVA / 2.4 kW | Input plug: NEMA L5-30P | Mode: Fixed double conversion | Revision: A | Certification: UL/CE/UKCA
E11B102U001J Capacity: 1 kVA / 0.8 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
E11B152U001J Capacity: 1.5 kVA / 1.2 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
E11B202U001J Capacity: 2 kVA / 1.6 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
E11B302U001J Capacity: 3 kVA / 2.4 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
