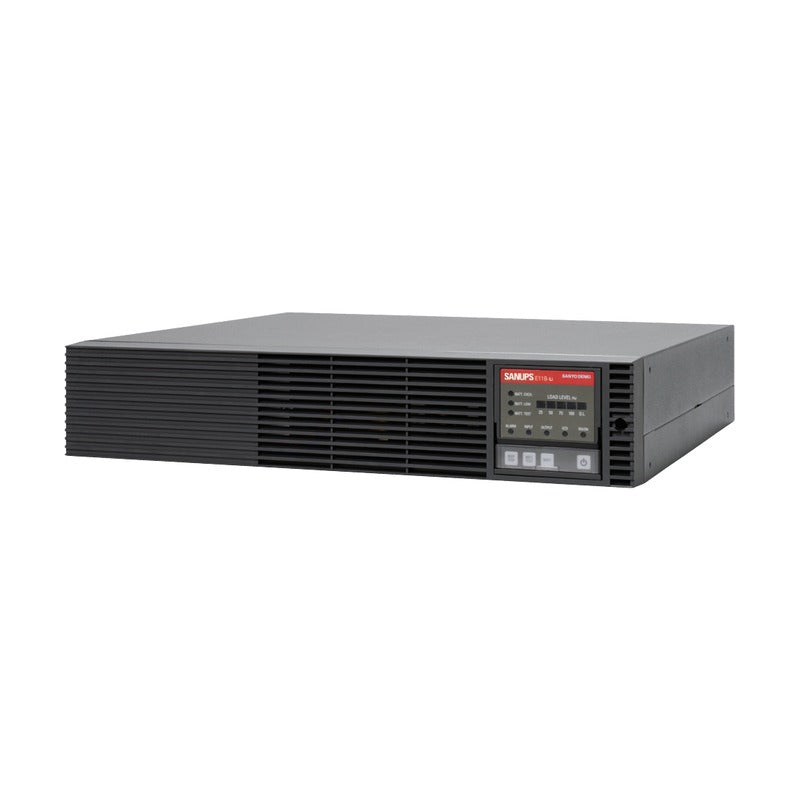

Sanyo Denki SANUPS E11B-Li Hybrid UPS (100 V Model, Li-Ion)

Sanyo Denki SANUPS E11B-Li Hybrid UPS (100 V Model, Li-Ion)

The SANUPS E11B-Li 100 V model is a 2U hybrid UPS for single-phase loads that combines high-quality double conversion power with energy-saving economy operation, using lithium-ion batteries.

Key features

  • Hybrid topology selects economy or double conversion mode by input conditions
  • Fixed double conversion mode versions (D) for uninterrupted transfer requirements
  • Lithium-ion batteries: no replacement for about 10 years (30 C); -10 to +55 C operation
  • Rack or vertical installation; UL 1778 / CSA / EN 62040-1 certified UJ versions
  • RS-232C and USB PC ports, remote ON/OFF; optional dry contact and LAN cards
  • Options: vertical stands STAND2UA00, floor brackets, rack rails RM030-US, air filter FL011

Specifications

Topology Hybrid
Voltage 100/110/115/120 V single-phase
Backup time 4 min
Battery Lithium-ion battery
Height 2U (86 mm)
Source SANUPS E11B-Li catalog P1050B007, p. 2-8
E11BL102B001AUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11BL102B001DUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11BL102C001AUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: C | Certification: UL/CE/UKCA
E11BL102C001DUJ Capacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: C | Certification: UL/CE/UKCA
E11BL152B001AUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11BL152B001DUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11BL152C001AUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Hybrid (auto transfer) | Revision: C | Certification: UL/CE/UKCA
E11BL152C001DUJ Capacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Fixed double conversion | Revision: C | Certification: UL/CE/UKCA
E11BL202B001AUJ Capacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11BL202B001DUJ Capacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11BL102U001J Capacity: 1 kVA / 0.8 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
E11BL152U001J Capacity: 1.5 kVA / 1.2 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
E11BL202U001J Capacity: 2 kVA / 1.6 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
UPS SystemsSanyo Denki
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS E11B-Li Hybrid UPS (100 V Model, Li-Ion)

Brand Sanyo Denki·UPS Systems

Available part numbers (13)

E11BL102B001AUJ, E11BL102B001DUJ, E11BL102C001AUJ, E11BL102C001DUJ, E11BL152B001AUJ, E11BL152B001DUJ, E11BL152C001AUJ, E11BL152C001DUJ, E11BL202B001AUJ, E11BL202B001DUJ + 3 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E11BL102B001AUJCapacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11BL102B001DUJCapacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11BL102C001AUJCapacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Hybrid (auto transfer) | Revision: C | Certification: UL/CE/UKCA
E11BL102C001DUJCapacity: 1 kVA / 0.8 kW | Input plug: NEMA 5-15P | Mode: Fixed double conversion | Revision: C | Certification: UL/CE/UKCA
E11BL152B001AUJCapacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11BL152B001DUJCapacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11BL152C001AUJCapacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Hybrid (auto transfer) | Revision: C | Certification: UL/CE/UKCA
E11BL152C001DUJCapacity: 1.5 kVA / 1.2 kW | Input plug: NEMA 5-20P | Mode: Fixed double conversion | Revision: C | Certification: UL/CE/UKCA
E11BL202B001AUJCapacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Hybrid (auto transfer) | Revision: B | Certification: UL/CE/UKCA
E11BL202B001DUJCapacity: 2 kVA / 1.6 kW | Input plug: NEMA L5-30P | Mode: Fixed double conversion | Revision: B | Certification: UL/CE/UKCA
E11BL102U001JCapacity: 1 kVA / 0.8 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
E11BL152U001JCapacity: 1.5 kVA / 1.2 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
E11BL202U001JCapacity: 2 kVA / 1.6 kW | Input plug: See order no. | Mode: Both modes | Revision: - | Certification: UL-registered no.
