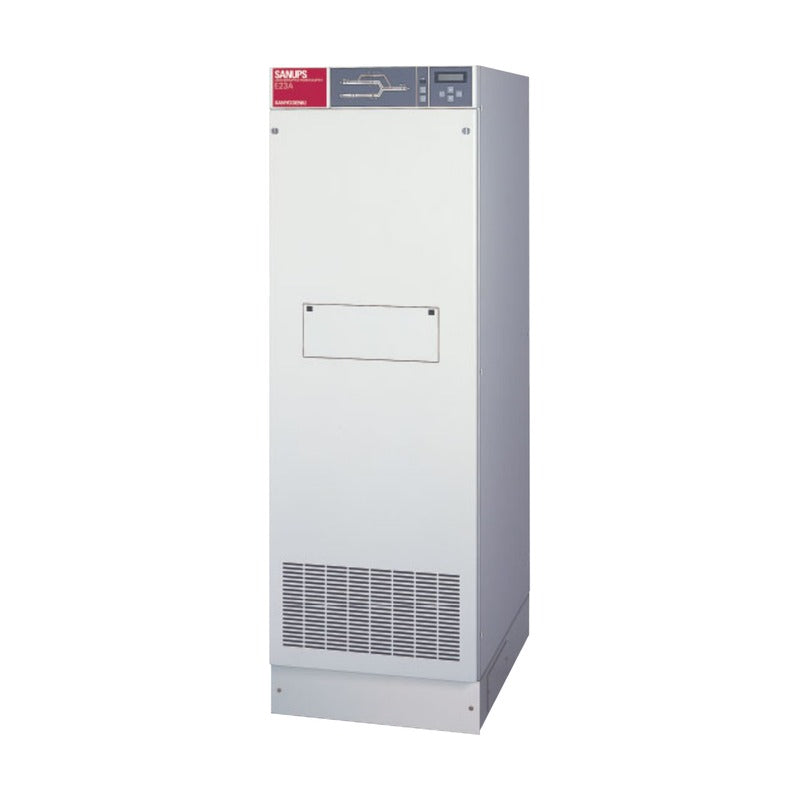

Sanyo Denki SANUPS E23A Parallel Processing UPS (20-200 kVA, 200 V)

Sanyo Denki SANUPS E23A Parallel Processing UPS (20-200 kVA, 200 V)

The SANUPS E23A is a 3-phase 200 V parallel processing UPS from 20 to 200 kVA with 97% conversion efficiency.

Key features

  • Parallel processing topology: grid feeds the load while a bi-directional inverter corrects voltage and absorbs noise
  • Conversion efficiency of 97%
  • Standard backup 8 min (20 kVA, built-in battery) or 10 min; 30/60/120/180 min options
  • Maintenance bypass circuit; I/O panels TRE23A for external bypass or Scott-T output
  • LAN interface card PRLANIF031 option (shipped installed)

Specifications

Topology Parallel processing
Voltage 3-phase 3-wire 200/205/210 V
Optional backup 30/60/120/180 min
Paint color Ivory (Munsell 6.6Y 8.3/0.8)
Brand SANUPS
Source SANUPS E23A catalog P0763B018, p. 2-5
E23A203 Capacity: 20 kVA / 16 kW | Standard backup: 8 min (built-in) | Inverter panel W x D x H1: 500 x 700 x 1400 mm | Mass: 400 kg
E23A503 Capacity: 50 kVA / 40 kW | Standard backup: 10 min | Inverter panel W x D x H1: 500 x 700 x 1650 mm | Mass: 350 kg
E23A104 Capacity: 100 kVA / 80 kW | Standard backup: 10 min | Inverter panel W x D x H1: 750 x 800 x 1825 mm | Mass: 600 kg
E23A204 Capacity: 200 kVA / 160 kW | Standard backup: 10 min | Inverter panel W x D x H1: 1500 x 800 x 1825 mm | Mass: 1200 kg
UPS SystemsSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS E23A Parallel Processing UPS (20-200 kVA, 200 V)

Brand Sanyo Denki·UPS Systems

Available part numbers (4)

E23A203, E23A503, E23A104, E23A204

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E23A203Capacity: 20 kVA / 16 kW | Standard backup: 8 min (built-in) | Inverter panel W x D x H1: 500 x 700 x 1400 mm | Mass: 400 kg
E23A503Capacity: 50 kVA / 40 kW | Standard backup: 10 min | Inverter panel W x D x H1: 500 x 700 x 1650 mm | Mass: 350 kg
E23A104Capacity: 100 kVA / 80 kW | Standard backup: 10 min | Inverter panel W x D x H1: 750 x 800 x 1825 mm | Mass: 600 kg
E23A204Capacity: 200 kVA / 160 kW | Standard backup: 10 min | Inverter panel W x D x H1: 1500 x 800 x 1825 mm | Mass: 1200 kg
