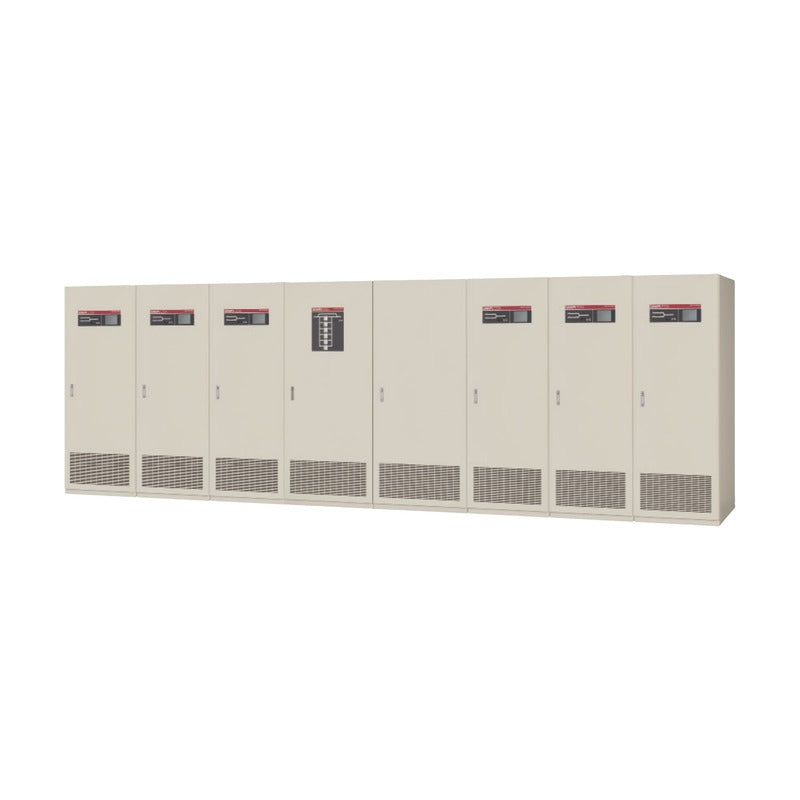

Sanyo Denki SANUPS E33A Parallel Processing UPS (100-600 kVA, 400 V)

Sanyo Denki SANUPS E33A Parallel Processing UPS (100-600 kVA, 400 V)

The SANUPS E33A is a 400 V class 3-phase parallel processing UPS from 100 to 600 kVA with 98% conversion efficiency.

Key features

  • Parallel processing topology with 98% conversion efficiency
  • Parallel operation (E33A) and parallel redundant operation (E33AR) models
  • Harmonic current compensation (2nd to 20th order) of the load
  • Standard 5/10 min backup; 30/60/120/180 min options
  • No interruption on transfer to battery operation
  • LAN interface card PRLANIF031 option

Specifications

Topology Parallel processing
Voltage 3-phase 3-/4-wire 380/400/415/420 V
Backup time 5/10 min std; 30-180 min option
Battery Small VRLA lead-acid battery
Expected life 15 years (UPS unit, 25 C average)
Source SANUPS E33A catalog P0947B008, p. 2-5
E33A104 Capacity: 100 kVA / 90 kW | Operation: Parallel operation | Heat dissipation: 2.8 kW
E33AR104 Capacity: 100 kVA / 90 kW | Operation: Parallel redundant operation | Heat dissipation: 4.8 kW
E33A204 Capacity: 200 kVA / 180 kW | Operation: Parallel operation | Heat dissipation: 5.6 kW
E33AR204 Capacity: 200 kVA / 180 kW | Operation: Parallel redundant operation | Heat dissipation: 7.6 kW
E33A304 Capacity: 300 kVA / 270 kW | Operation: Parallel operation | Heat dissipation: 8.4 kW
E33AR304 Capacity: 300 kVA / 270 kW | Operation: Parallel redundant operation | Heat dissipation: 9.8 kW
E33A404 Capacity: 400 kVA / 360 kW | Operation: Parallel operation | Heat dissipation: 11.2 kW
E33AR404 Capacity: 400 kVA / 360 kW | Operation: Parallel redundant operation | Heat dissipation: 11.2 kW
E33A504 Capacity: 500 kVA / 450 kW | Operation: Parallel operation | Heat dissipation: 14.0 kW
E33AR504 Capacity: 500 kVA / 450 kW | Operation: Parallel redundant operation | Heat dissipation: 14.0 kW
E33A604 Capacity: 600 kVA / 540 kW | Operation: Parallel operation | Heat dissipation: 16.9 kW
UPS SystemsSanyo Denki
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS E33A Parallel Processing UPS (100-600 kVA, 400 V)

Brand Sanyo Denki·UPS Systems

Available part numbers (11)

E33A104, E33AR104, E33A204, E33AR204, E33A304, E33AR304, E33A404, E33AR404, E33A504, E33AR504 + 1 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E33A104Capacity: 100 kVA / 90 kW | Operation: Parallel operation | Heat dissipation: 2.8 kW
E33AR104Capacity: 100 kVA / 90 kW | Operation: Parallel redundant operation | Heat dissipation: 4.8 kW
E33A204Capacity: 200 kVA / 180 kW | Operation: Parallel operation | Heat dissipation: 5.6 kW
E33AR204Capacity: 200 kVA / 180 kW | Operation: Parallel redundant operation | Heat dissipation: 7.6 kW
E33A304Capacity: 300 kVA / 270 kW | Operation: Parallel operation | Heat dissipation: 8.4 kW
E33AR304Capacity: 300 kVA / 270 kW | Operation: Parallel redundant operation | Heat dissipation: 9.8 kW
E33A404Capacity: 400 kVA / 360 kW | Operation: Parallel operation | Heat dissipation: 11.2 kW
E33AR404Capacity: 400 kVA / 360 kW | Operation: Parallel redundant operation | Heat dissipation: 11.2 kW
E33A504Capacity: 500 kVA / 450 kW | Operation: Parallel operation | Heat dissipation: 14.0 kW
E33AR504Capacity: 500 kVA / 450 kW | Operation: Parallel redundant operation | Heat dissipation: 14.0 kW
E33A604Capacity: 600 kVA / 540 kW | Operation: Parallel operation | Heat dissipation: 16.9 kW
