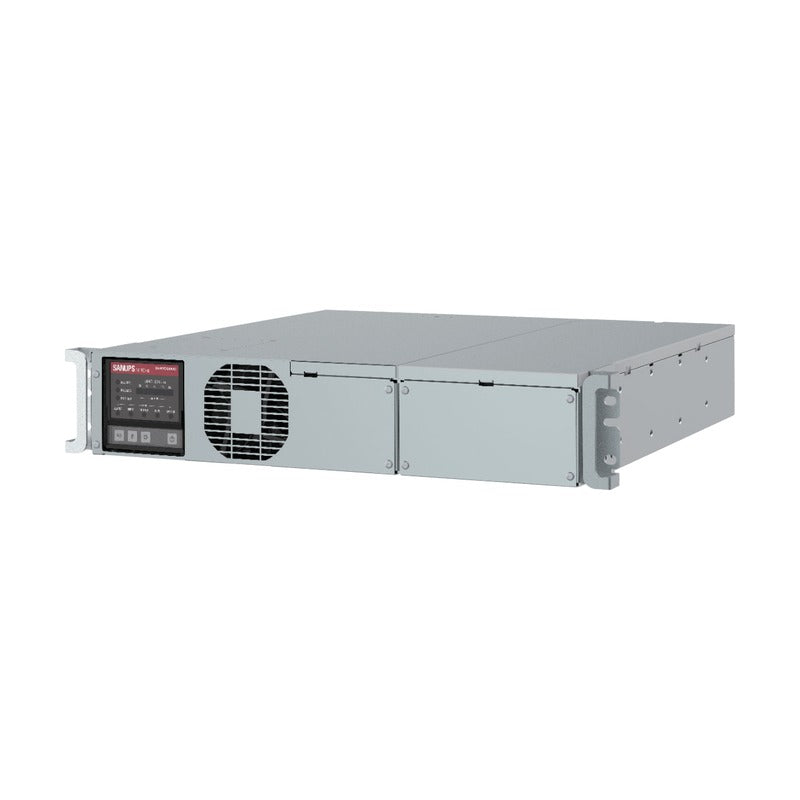

Sanyo Denki SANUPS N11D-C Standby UPS (2-3 kVA, 200 V, EDLC)

Sanyo Denki SANUPS N11D-C Standby UPS (2-3 kVA, 200 V, EDLC)

The SANUPS N11D-C is a slim 200 V standby UPS with electric double-layer capacitors (EDLC) for voltage sag and momentary outage protection.

Key features

  • 200% overload capacity (for 0.2 s) during EDLC operation
  • EDLC rapid charging; meets SEMI F47 voltage sag immunity requirements
  • Reuses regenerative power from decelerating motors (2.4 kWs max.)
  • Rack-mounted, wall-mounted and floor-standing types A/B
  • Up to 98.6% efficiency; approx. 30 dB operating noise

Specifications

Topology Standby
Voltage 200/208/220/230 V single-phase 2-wire
Energy storage Electric double-layer capacitor
Transfer time 10 ms or less
Brand SANUPS
Source SANUPS N11D-C catalog P1066B002, p. 2-6
S-N11DC202AFS Capacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Floor-standing type B | LED panel: Side
S-N11DC202AFT Capacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Floor-standing type A | LED panel: Front
S-N11DC202ARS Capacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Rack-mounted | LED panel: Front
S-N11DC202AWT Capacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Wall-mounted | LED panel: Front
S-N11DC302AFS Capacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Floor-standing type B | LED panel: Side
S-N11DC302AFT Capacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Floor-standing type A | LED panel: Front
S-N11DC302ARS Capacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Rack-mounted | LED panel: Front
S-N11DC302AWT Capacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Wall-mounted | LED panel: Front
UPS SystemsSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS N11D-C Standby UPS (2-3 kVA, 200 V, EDLC)

Brand Sanyo Denki·UPS Systems

Available part numbers (8)

S-N11DC202AFS, S-N11DC202AFT, S-N11DC202ARS, S-N11DC202AWT, S-N11DC302AFS, S-N11DC302AFT, S-N11DC302ARS, S-N11DC302AWT

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-N11DC202AFSCapacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Floor-standing type B | LED panel: Side
S-N11DC202AFTCapacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Floor-standing type A | LED panel: Front
S-N11DC202ARSCapacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Rack-mounted | LED panel: Front
S-N11DC202AWTCapacity: 2 kVA / 1.6 kW | EDLC backup: 2.8 s | Installation: Wall-mounted | LED panel: Front
S-N11DC302AFSCapacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Floor-standing type B | LED panel: Side
S-N11DC302AFTCapacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Floor-standing type A | LED panel: Front
S-N11DC302ARSCapacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Rack-mounted | LED panel: Front
S-N11DC302AWTCapacity: 3 kVA / 2.4 kW | EDLC backup: 1.5 s | Installation: Wall-mounted | LED panel: Front
