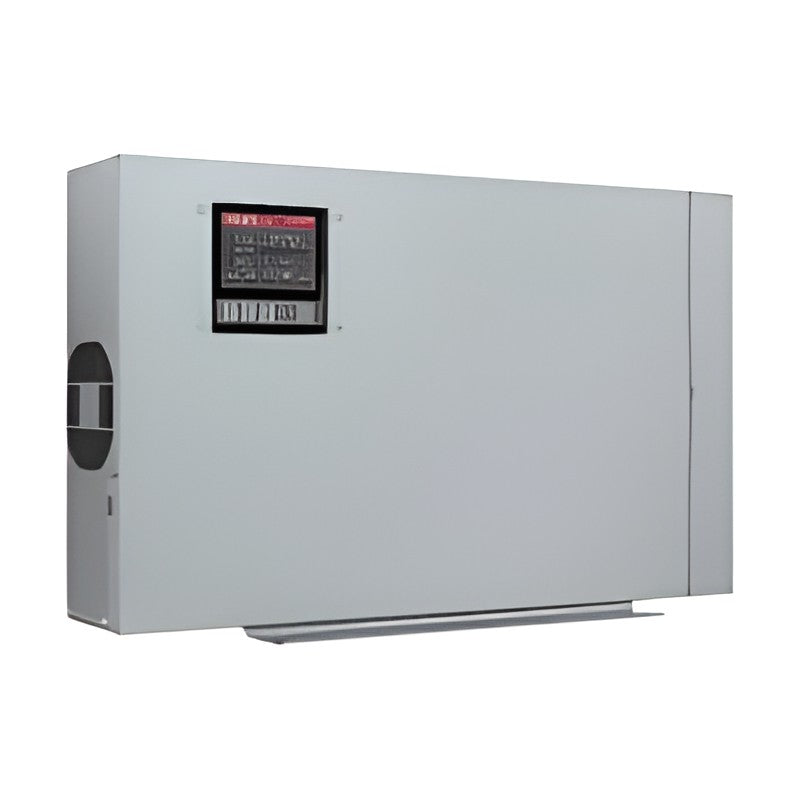

Sanyo Denki SANUPS N11D Standby UPS (2-3 kVA, 200 V, Lead-Acid)

The SANUPS N11D is a slim 200 V standby UPS with 200% overload capacity, combining a UPS unit with lead-acid battery units.

Key features

200% overload capacity (for 1 s), suited to elevators, robots and motor-driven machinery
Up to 98.6% conversion efficiency and approx. 30 dB operating noise
Slim wall-mounted design plus floor-standing types A and B
Battery unit can be installed separately from the UPS unit
Interface: EPO / remote ON-OFF input, Form C dry contact outputs; LAN card option

Specifications

Topology	Standby
Voltage	200/208/220/230 V single-phase 2-wire
Battery	Small VRLA lead-acid battery
Transfer time	10 ms or less
Material	Uncoated ZAM steel sheet
Source	SANUPS N11D catalog P1064B001, p. 2-6

S-N11D202AFS6		Capacity: 2 kVA / 1.6 kW \| Backup: 5 min \| Installation: Floor-standing type B \| LED panel: Side \| Battery unit: BCN11D6SA
S-N11D202AFS8		Capacity: 2 kVA / 1.6 kW \| Backup: 9 min \| Installation: Floor-standing type B \| LED panel: Side \| Battery unit: BCN11D8SA
S-N11D202AFT6		Capacity: 2 kVA / 1.6 kW \| Backup: 5 min \| Installation: Floor-standing type A \| LED panel: Front \| Battery unit: BCN11D6SA
S-N11D202AFT8		Capacity: 2 kVA / 1.6 kW \| Backup: 9 min \| Installation: Floor-standing type A \| LED panel: Front \| Battery unit: BCN11D8SA
S-N11D202AWT6		Capacity: 2 kVA / 1.6 kW \| Backup: 5 min \| Installation: Wall-mounted \| LED panel: Front \| Battery unit: BCN11D6SA
S-N11D202AWT8		Capacity: 2 kVA / 1.6 kW \| Backup: 9 min \| Installation: Wall-mounted \| LED panel: Front \| Battery unit: BCN11D8SA
S-N11D302AFS8		Capacity: 3 kVA / 2.4 kW \| Backup: 5 min \| Installation: Floor-standing type B \| LED panel: Side \| Battery unit: BCN11D8SA
S-N11D302AFT8		Capacity: 3 kVA / 2.4 kW \| Backup: 5 min \| Installation: Floor-standing type A \| LED panel: Front \| Battery unit: BCN11D8SA
S-N11D302AWT8		Capacity: 3 kVA / 2.4 kW \| Backup: 5 min \| Installation: Wall-mounted \| LED panel: Front \| Battery unit: BCN11D8SA

UPS SystemsSanyo Denki

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS N11D Standby UPS (2-3 kVA, 200 V, Lead-Acid)

Brand Sanyo Denki·UPS Systems

Available part numbers (9)

S-N11D202AFS6, S-N11D202AFS8, S-N11D202AFT6, S-N11D202AFT8, S-N11D202AWT6, S-N11D202AWT8, S-N11D302AFS8, S-N11D302AFT8, S-N11D302AWT8
