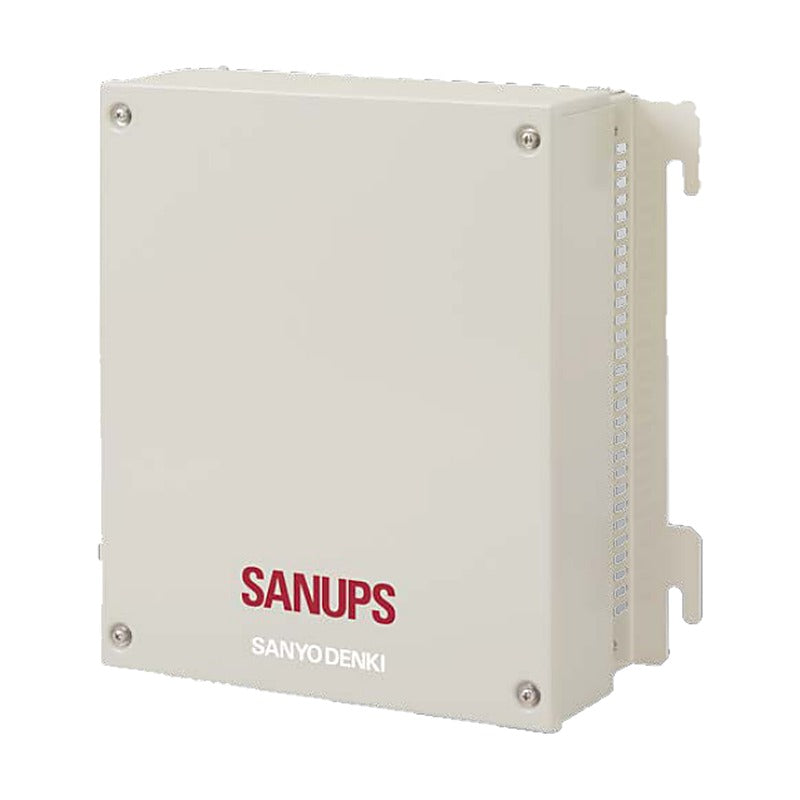

Sanyo Denki SANUPS W75A Rectifier (11 kW, Wind/Hydro Power)

The SANUPS W75A is an 11 kW full-wave rectifier that converts 3-phase generator output from wind and hydro systems into DC for SANUPS W73A inverters.

Key features

11 kW rated output, ideal for 10 kW systems
Brake function (DC voltage rise control with external shunt resistor)
Generator speed contact output and temperature rise alarm output
IP65 enclosure in SUS430 stainless steel; passive air cooling
Applicable to biomass and geothermal generation systems

Specifications

AC input	3-phase 300 VAC (106-420 V), 0-400 Hz
DC output	420 VDC rated, 26 ADC
Efficiency	99%
Protection rating	IP65
Mass	Approx. 10 kg
Source	SANUPS W75A catalog P1047B001, p. 1-2

W75A113

Rated output: 11 kW | Circuit: Full-wave rectifier | Cooling: Passive air cooling

UPS SystemsSanyo Denki

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS W75A Rectifier (11 kW, Wind/Hydro Power)

Brand Sanyo Denki·UPS Systems

Available part numbers (1)

W75A113

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
