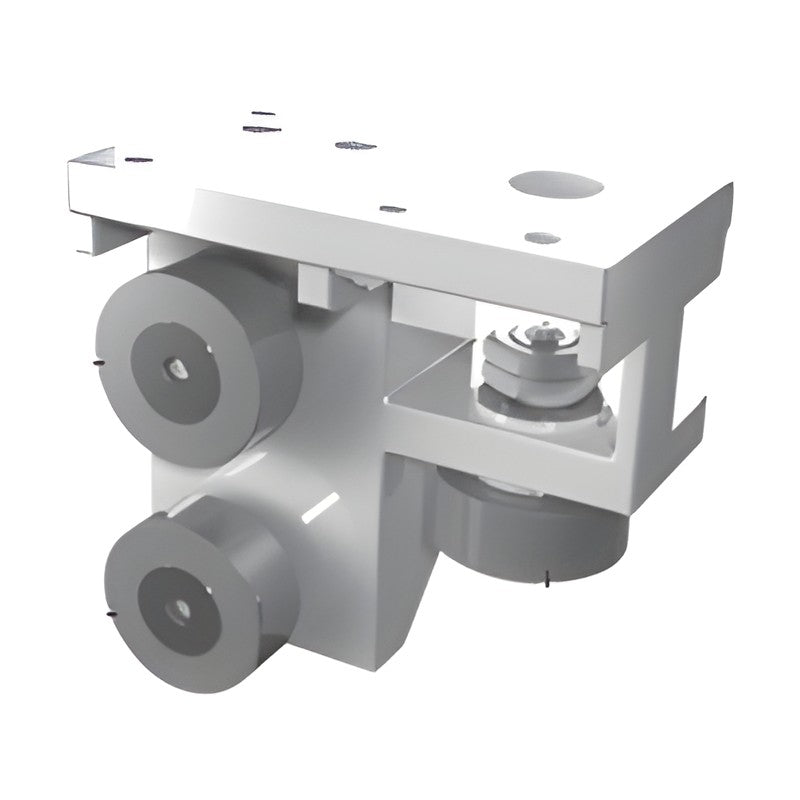

SBC Linear 903X Robot Carrier Carriage, 3 Rollers

SBC Linear 903X Robot Carrier Carriage, 3 Rollers

Three-cam-roller carriage for the SBC robot carrier guide system, running on flat or rack rails for high-load, high-speed gantry travel.

Key features

  • Concentric (fixed) and eccentric (adjustable) cam rollers allow zero-clearance adjustment for high speed under high load
  • Runs on SBC flat rail or rack rail with a carrier pinion for a complete drive system
  • Cam rollers: lubricate every 10,000 km of travel

Specifications

Static load rating Co 82 kN
Dynamic load rating C1 (10 km) 43.1 kN
Dynamic load rating C2 10.8 kN
Max. roller speed 1800 min-1
Size coefficient Kr 2.827
Roller diameter 90 mm
Mounting 4 x M16 tapped through, 2 x ø12H7 dowel
Base plate 190 x 250 mm
9031R Hand: Right | Roller 1/2/3: BR/ER/ER | Rollers: 3
9032R Hand: Right | Roller 1/2/3: BR/ER/BR | Rollers: 3
9033R Hand: Right | Roller 1/2/3: ER/BR/ER | Rollers: 3
9034R Hand: Right | Roller 1/2/3: BR/BR/BR | Rollers: 3
9031L Hand: Left | Roller 1/2/3: BR/ER/ER | Rollers: 3
9032L Hand: Left | Roller 1/2/3: BR/ER/BR | Rollers: 3
9033L Hand: Left | Roller 1/2/3: ER/BR/ER | Rollers: 3
9034L Hand: Left | Roller 1/2/3: BR/BR/BR | Rollers: 3
Linear GuidesSBC Linear
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC Linear 903X Robot Carrier Carriage, 3 Rollers

Brand SBC Linear·Linear Guides

Available part numbers (8)

9031R, 9032R, 9033R, 9034R, 9031L, 9032L, 9033L, 9034L

How to order

Send the SBC Linear part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9031RHand: Right | Roller 1/2/3: BR/ER/ER | Rollers: 3
9032RHand: Right | Roller 1/2/3: BR/ER/BR | Rollers: 3
9033RHand: Right | Roller 1/2/3: ER/BR/ER | Rollers: 3
9034RHand: Right | Roller 1/2/3: BR/BR/BR | Rollers: 3
9031LHand: Left | Roller 1/2/3: BR/ER/ER | Rollers: 3
9032LHand: Left | Roller 1/2/3: BR/ER/BR | Rollers: 3
9033LHand: Left | Roller 1/2/3: ER/BR/ER | Rollers: 3
9034LHand: Left | Roller 1/2/3: BR/BR/BR | Rollers: 3
