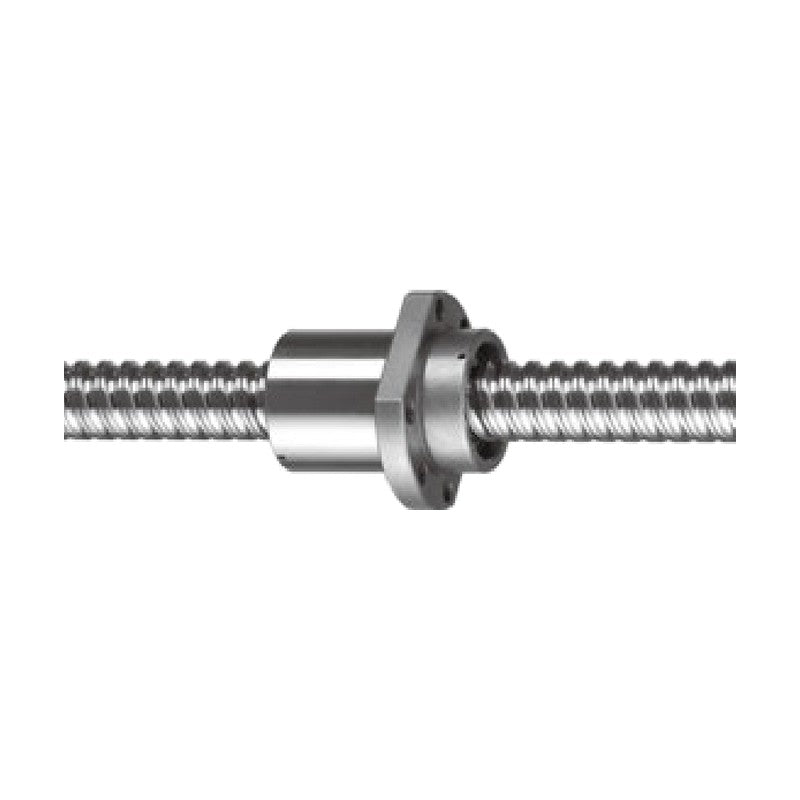

SBC Linear SDH DIN Long-Lead Rolled Ball Screw Nut

DIN-style long-lead flanged nuts for SBC rolled ball screws, leads 10-40 mm.

Key features

Follows DIN 69051-5; screw shaft rolled to high accuracy with thread-ground nut raceways
High-accuracy lead in P3, P5 and T7 grades
High rigidity, high accuracy and smooth motion; standard sizes held in stock

Specifications

Standard	DIN 69051-5
Axial backlash Sa	0.05-0.06 mm

SDH1610		Screw shaft dia.: 15.9 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 2.8 \| Nut dia. D1 (g6): 28 mm \| Nut length: 45 mm \| Ca: 7 kN \| Coa: 12 kN \| Nut mass: 0.29 kg \| Max. length: 3000 mm
SDH1616		Screw shaft dia.: 15.9 mm \| Lead: 16 mm \| Ball diameter: 3.175 mm \| Circuits: 3.6 \| Nut dia. D1 (g6): 28 mm \| Nut length: 48 mm \| Ca: 7.1 kN \| Coa: 14 kN \| Nut mass: 0.29 kg \| Max. length: 3000 mm
SDH2020		Screw shaft dia.: 19.6 mm \| Lead: 20 mm \| Ball diameter: 3.5 mm \| Circuits: 3.6 \| Nut dia. D1 (g6): 36 mm \| Nut length: 54 mm \| Ca: 10.8 kN \| Coa: 18.6 kN \| Nut mass: 0.45 kg \| Max. length: 4000 mm
SDH2525		Screw shaft dia.: 24.6 mm \| Lead: 25 mm \| Ball diameter: 3.5 mm \| Circuits: 3.6 \| Nut dia. D1 (g6): 40 mm \| Nut length: 64 mm \| Ca: 13.1 kN \| Coa: 26 kN \| Nut mass: 0.55 kg \| Max. length: 5000 mm
SDH3220		Screw shaft dia.: 31.6 mm \| Lead: 20 mm \| Ball diameter: 5.6 mm \| Circuits: 5.6 \| Nut dia. D1 (g6): 56 mm \| Nut length: 83 mm \| Ca: 47.2 kN \| Coa: 83.2 kN \| Nut mass: 1.4 kg \| Max. length: 6000 mm
SDH3232		Screw shaft dia.: 32 mm \| Lead: 32 mm \| Ball diameter: 4.7625 mm \| Circuits: 3.6 \| Nut dia. D1 (g6): 56 mm \| Nut length: 83 mm \| Ca: 17.2 kN \| Coa: 53.9 kN \| Nut mass: 1.4 kg \| Max. length: 6000 mm
SDH4020		Screw shaft dia.: 39.6 mm \| Lead: 20 mm \| Ball diameter: 5.55 mm \| Circuits: 5.6 \| Nut dia. D1 (g6): 63 mm \| Nut length: 83 mm \| Ca: 52.2 kN \| Coa: 103.6 kN \| Nut mass: 1.6 kg \| Max. length: 6000 mm
SDH4040		Screw shaft dia.: 39.6 mm \| Lead: 40 mm \| Ball diameter: 7.144 mm \| Circuits: 3.6 \| Nut dia. D1 (g6): 70 mm \| Nut length: 102 mm \| Ca: 59.7 kN \| Coa: 108.9 kN \| Nut mass: 2.4 kg \| Max. length: 6000 mm
