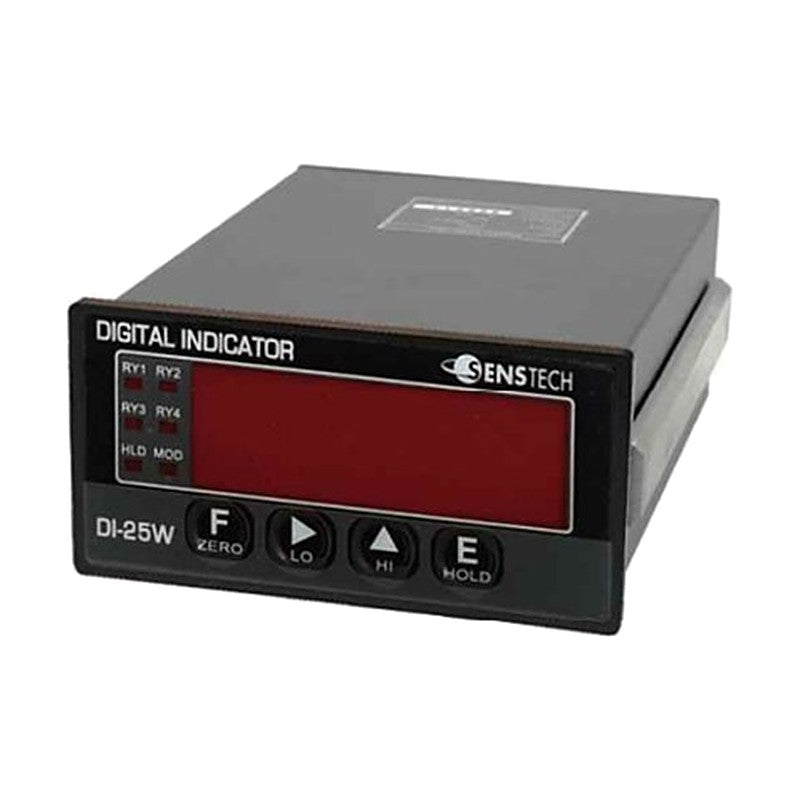

Senstech DI Series Digital Indicator (load cell, LVDT, LPS)

Senstech DI Series Digital Indicator (load cell, LVDT, LPS)

Senstech DI series panel digital indicators read strain-gauge sensors (DI-10W, DI-100), differential-transformer HBT/LVDT probes (DI-25W) and voltage/current-output sensors (DI-20W).

Key features

  • 24-bit A/D conversion; 200 SPS (DI-10W/20W/25W) or 7,000 SPS (DI-100)
  • Peak and sample hold, upper/lower comparator with OK/NG judgement
  • 4 relay contact outputs and analog output (16-bit DAC)
  • One-touch auto zero and calibration by real load or sensor output
  • MODBUS RTU; options BCD, RS-232C, RS-485, RS-422A
  • Watchdog automatic recovery

Specifications

Display range -19,999 to +99,999
Display 7-segment LED, 14 mm
Analog output DC 0 to 10 V or 4 to 20 mA
Relay contacts 250 VAC / 30 VDC, 3 A
Power supply AC 90 to 240 V, 50/60 Hz (DC 24 V option OP-10)
Operating temperature -10 to 50 C
Humidity 80 % RH or less, no condensation
Options OP-01 BCD, OP-02 RS-232C, OP-03 RS-485, OP-04 RS-422A
Source Senstech DI series pages
DI-10W Sensor: Strain gauge (load cell, torque) | Input: 0.5 to 3 mV/V | Speed: 200 SPS | Size: 96 x 48 x 128 mm
DI-20W Sensor: Voltage/current output, LPS | Input: DC 0-10 V or 4-20 mA | Speed: 200 SPS | Size: 96 x 48 x 128 mm
DI-25W Sensor: HBT/LVDT probes | Input: 0.9 V/V std., 2 Vrms 5 kHz | Speed: 200 SPS | Size: 96 x 48 x 128 mm
DI-100 Sensor: Strain gauge (torque) | Input: 0.5 to 3 mV/V | Speed: 7,000 SPS | Size: 98 x 98 x 111 mm
Digital IndicatorSenstech
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Senstech DI Series Digital Indicator (load cell, LVDT, LPS)

Brand Senstech·Digital Indicator

Available part numbers (4)

DI-10W, DI-20W, DI-25W, DI-100

How to order

Send the Senstech part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DI-10WSensor: Strain gauge (load cell, torque) | Input: 0.5 to 3 mV/V | Speed: 200 SPS | Size: 96 x 48 x 128 mm
DI-20WSensor: Voltage/current output, LPS | Input: DC 0-10 V or 4-20 mA | Speed: 200 SPS | Size: 96 x 48 x 128 mm
DI-25WSensor: HBT/LVDT probes | Input: 0.9 V/V std., 2 Vrms 5 kHz | Speed: 200 SPS | Size: 96 x 48 x 128 mm
DI-100Sensor: Strain gauge (torque) | Input: 0.5 to 3 mV/V | Speed: 7,000 SPS | Size: 98 x 98 x 111 mm
