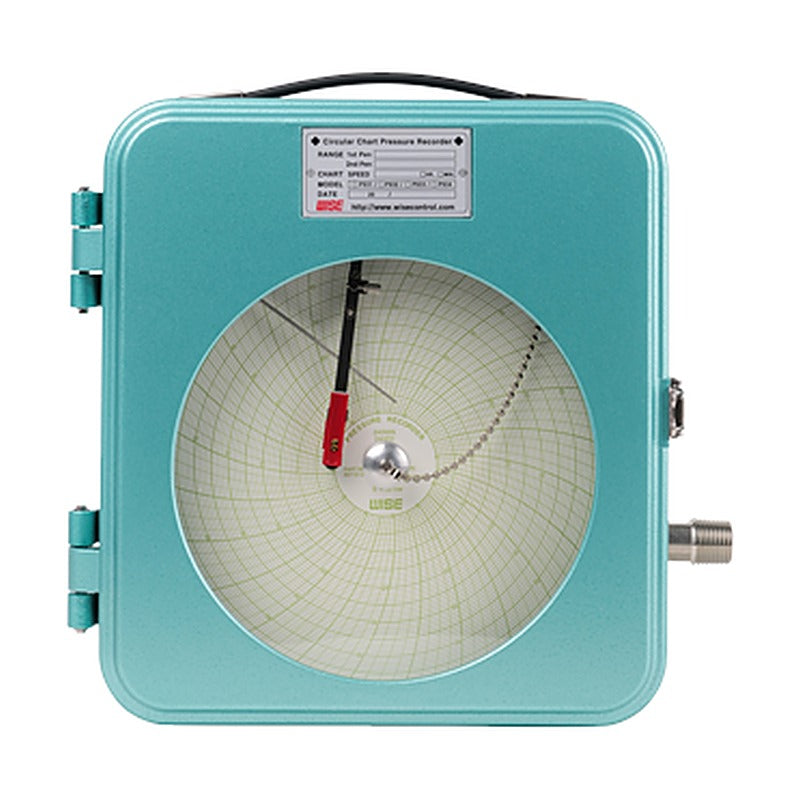

WISE P931-P934 Circular Chart Pressure Recorder

Single or dual pen 200 mm circular chart pressure recorder in surface mounting or portable versions. Suitable for hazardous environments such as gas or chemical process lines.

Key features

200 mm circular chart, one or two pens
Spring wound or battery chart drive
316SS bourdon tube element
Ranges 0~5 kPa to 0~200 MPa

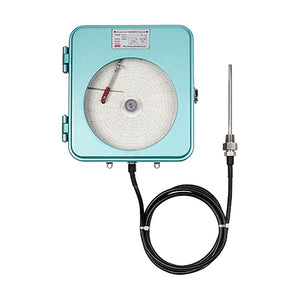

Optional temperature sensor (pressure + temperature)

Specifications

Chart paper	200 mm circular
Case size	246 (W) x 271 (H) mm, ALDC 12.1 hinged door
Scale range	0~5 kPa to 0~200 MPa
Accuracy	±2.0% of full scale
Element	Bourdon tube, 316SS
Chart drive	Spring wound 30 min-7 days; battery 30 min-32 days
Process connection	3/8", 1/2" PT, NPT, PF (316SS)
Working temperature	Ambient -20~100 °C; fluid max. 200 °C
Over range protection	130% of full scale
Ordering options	Sensor type (pressure / temp. and pressure), connection, unit, range
Source	WISE data sheet PD09-03

P931		Mounting: Surface \| Pens: 1
P932		Mounting: Surface \| Pens: 2
P933		Mounting: Portable \| Pens: 1
P934		Mounting: Portable \| Pens: 2

RecordersWISE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE P931-P934 Circular Chart Pressure Recorder

Brand WISE·Recorders

Available part numbers (4)

P931, P932, P933, P934

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
