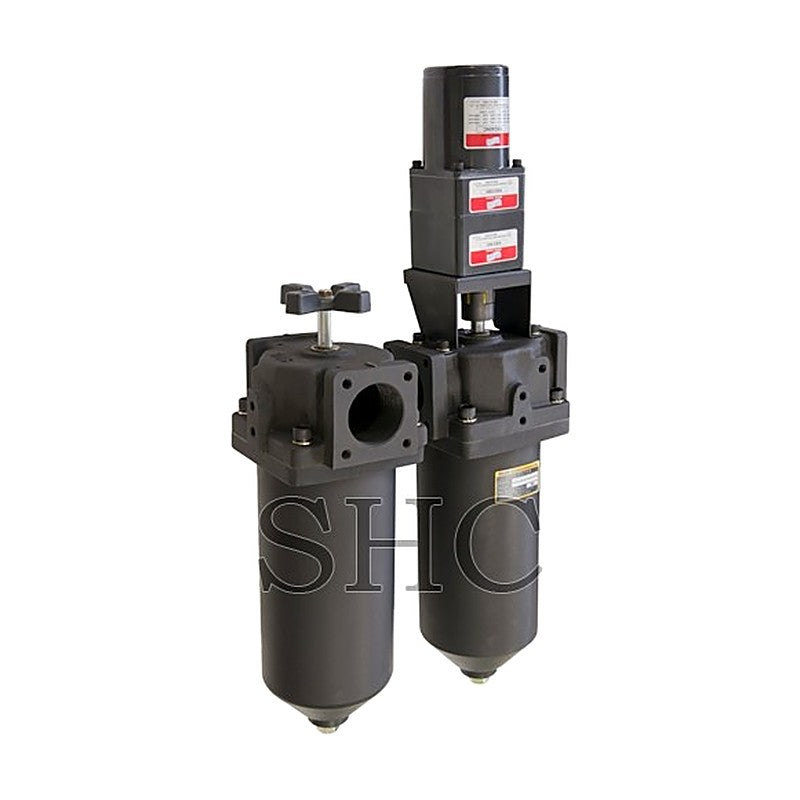

SHC ACF Automatic Line Filter (PT 1-1/4 to PT 2)

SHC ACF Automatic Line Filter (PT 1-1/4 to PT 2)

Large ACF line filters use a rotating cleanable element with scraper, operated manually or by an optional automatic gear motor (approx. 5 rpm).

Key features

  • FCD body, cast aluminium bowl
  • Max. working pressure 10 bar
  • Approx. 150 micron (100 mesh)
  • Optional 220 V automatic rotating motor
  • Electrical indicator and flange options

Specifications

Body FCD
Max. working pressure 10 bar
Filtration Approx. 150 micron
Flow basis Bunker C oil at 50 C
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Source SHC E-Catalog 2018 V1.0, p.42
ACF-10 Thread: PT 1-1/4 | H: 420 mm | Flow: 90 L/min
ACF-12 Thread: PT 1-1/2 | H: 420 mm | Flow: 120 L/min
ACF-16 Thread: PT 2 | H: 470 mm | Flow: 190 L/min
Automatic Line FilterSHC
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC ACF Automatic Line Filter (PT 1-1/4 to PT 2)

Brand SHC·Automatic Line Filter

Available part numbers (3)

ACF-10, ACF-12, ACF-16

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ACF-10Thread: PT 1-1/4 | H: 420 mm | Flow: 90 L/min
ACF-12Thread: PT 1-1/2 | H: 420 mm | Flow: 120 L/min
ACF-16Thread: PT 2 | H: 470 mm | Flow: 190 L/min
