• SHC SCF Suction Strainer (PT 1/4 to PT 4)
1 1

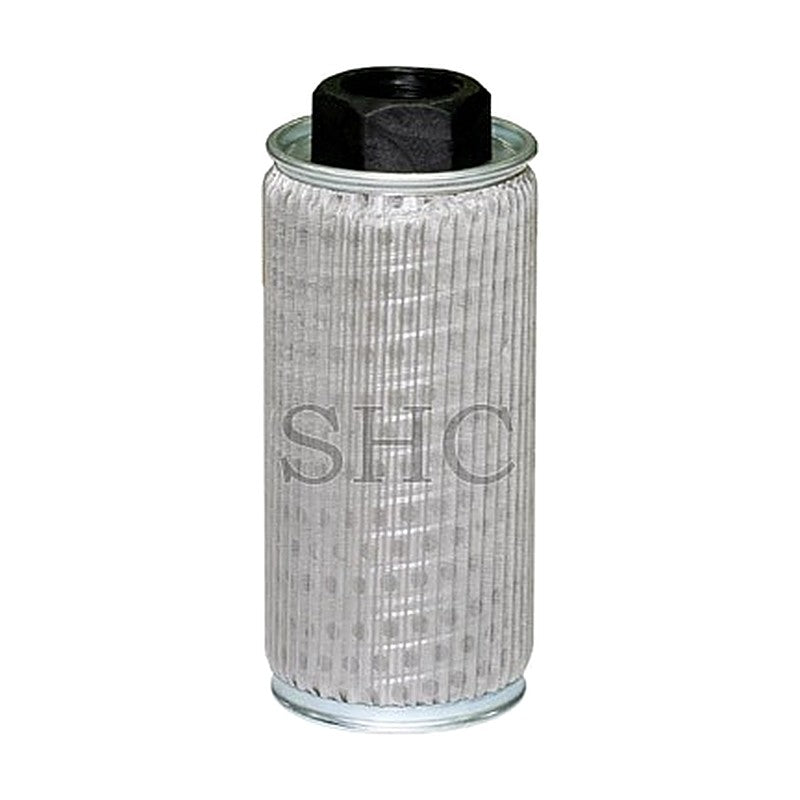

SHC SCF Suction Strainer (PT 1/4 to PT 4)

SHC SCF Suction Strainer (PT 1/4 to PT 4)

SCF suction strainers are the standard SHC in-tank suction element, threaded directly onto the pump suction pipe to protect hydraulic pumps from contaminants.

Key features

  • Standard in-tank suction element from PT 1/4 to PT 4
  • High-efficiency, durable filter media
  • Oil- and shock-resistant bonding adhesive
  • Usable with mineral and fire-resistant hydraulic fluids
  • Flow ratings given for 100, 150 and 200 mesh

Specifications

Mounting In-tank, threaded to suction pipe
Connection PT 1/4 to PT 4 female thread
Filtration 100 / 150 / 200 mesh
Fluids Mineral and fire-resistant hydraulic oils
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Source SHC E-Catalog 2018 V1.0, p.4
SCF-02 Thread: PT 1/4 | D: 55 mm | H: 93 mm | Flow 150 mesh: 20 L/min
SCF-03 Thread: PT 3/8 | D: 55 mm | H: 93 mm | Flow 150 mesh: 20 L/min
SCF-04 Thread: PT 1/2 | D: 60 mm | H: 144 mm | Flow 150 mesh: 50 L/min
SCF-06 Thread: PT 3/4 | D: 60 mm | H: 145 mm | Flow 150 mesh: 50 L/min
SCF-08 Thread: PT 1 | D: 75 mm | H: 177 mm | Flow 150 mesh: 80 L/min
SCF-10 Thread: PT 1-1/4 | D: 95 mm | H: 199 mm | Flow 150 mesh: 130 L/min
SCF-12 Thread: PT 1-1/2 | D: 105 mm | H: 222 mm | Flow 150 mesh: 180 L/min
SCF-16 Thread: PT 2 | D: 115 mm | H: 304 mm | Flow 150 mesh: 300 L/min
SCF-20 Thread: PT 2-1/2 | D: 140 mm | H: 407 mm | Flow 150 mesh: 600 L/min
SCF-24 Thread: PT 3 | D: 140 mm | H: 407 mm | Flow 150 mesh: 600 L/min
SCF-32 Thread: PT 4 | D: 160 mm | H: 455 mm | Flow 150 mesh: 700 L/min
Suction StrainerSHC
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SCF Suction Strainer (PT 1/4 to PT 4)

Brand SHC·Suction Strainer

Available part numbers (11)

SCF-02, SCF-03, SCF-04, SCF-06, SCF-08, SCF-10, SCF-12, SCF-16, SCF-20, SCF-24 + 1 more — see full table ↓

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCF-02Thread: PT 1/4 | D: 55 mm | H: 93 mm | Flow 150 mesh: 20 L/min
SCF-03Thread: PT 3/8 | D: 55 mm | H: 93 mm | Flow 150 mesh: 20 L/min
SCF-04Thread: PT 1/2 | D: 60 mm | H: 144 mm | Flow 150 mesh: 50 L/min
SCF-06Thread: PT 3/4 | D: 60 mm | H: 145 mm | Flow 150 mesh: 50 L/min
SCF-08Thread: PT 1 | D: 75 mm | H: 177 mm | Flow 150 mesh: 80 L/min
SCF-10Thread: PT 1-1/4 | D: 95 mm | H: 199 mm | Flow 150 mesh: 130 L/min
SCF-12Thread: PT 1-1/2 | D: 105 mm | H: 222 mm | Flow 150 mesh: 180 L/min
SCF-16Thread: PT 2 | D: 115 mm | H: 304 mm | Flow 150 mesh: 300 L/min
SCF-20Thread: PT 2-1/2 | D: 140 mm | H: 407 mm | Flow 150 mesh: 600 L/min
SCF-24Thread: PT 3 | D: 140 mm | H: 407 mm | Flow 150 mesh: 600 L/min
SCF-32Thread: PT 4 | D: 160 mm | H: 455 mm | Flow 150 mesh: 700 L/min
