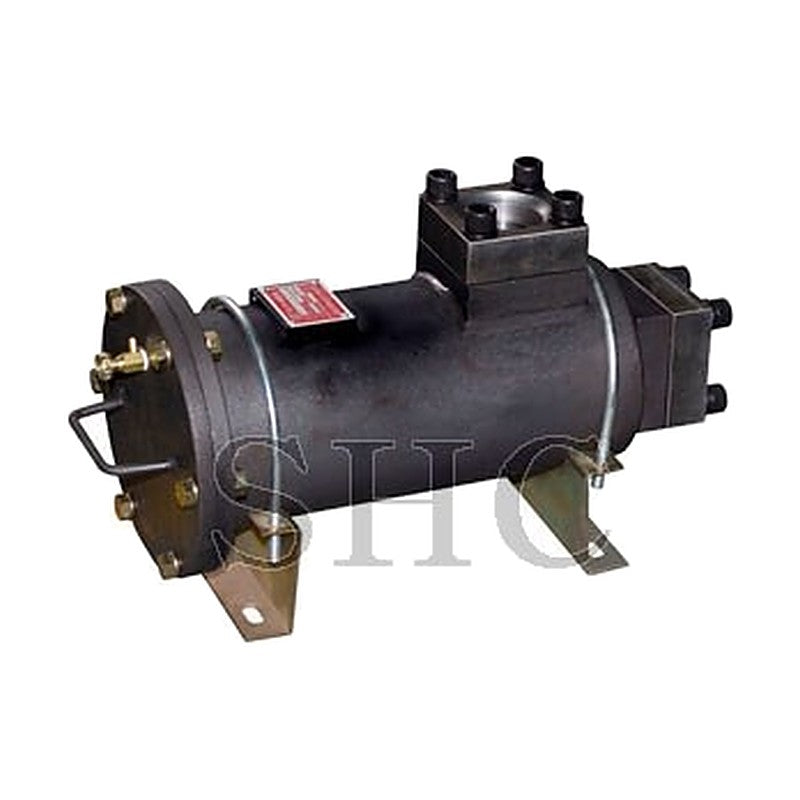

SHC SF Suction Line Filter (25A to 125A)

SHC SF Suction Line Filter (25A to 125A)

SF suction line filters are welded carbon steel housings installed in the suction line, using standard SH-SE elements.

Key features

  • Welded carbon steel bowl and cover
  • Max. working pressure 7 bar
  • 100 mesh standard (80, 150, 200 mesh options)
  • Uses SH-SE elements, easy to source
  • Flange connection with adjustable bracket

Specifications

Material Carbon steel (welded)
Max. working pressure 7 bar
Filtration 100 mesh
Element change 2 bar or less
Options Vacuum gauge, KS 10K/5K round flange
Brand SHC
Source SHC E-Catalog 2018 V1.0, p.39
SF-25A Port: 1 in | A: 376 mm | H1: 102 mm | Element: SH-SE-08
SF-32A Port: 1-1/4 in | A: 376 mm | H1: 115 mm | Element: SH-SE-10
SF-40A Port: 1-1/2 in | A: 430 mm | H1: 135 mm | Element: SH-SE-12
SF-50A Port: 2 in | A: 500 mm | H1: 135 mm | Element: SH-SE-16
SF-65A Port: 2-1/2 in | A: 605 mm | H1: 170 mm | Element: SH-SE-20
SF-80A Port: 3 in | A: 615 mm | H1: 170 mm | Element: SH-SE-24
SF-100A Port: 4 in | A: 622 mm | H1: 200 mm | Element: SH-SE-32
SF-125A Port: 5 in | A: 730 mm | H1: 200 mm | Element: SH-SE-40
Suction Line FilterSHC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SF Suction Line Filter (25A to 125A)

Brand SHC·Suction Line Filter

Available part numbers (8)

SF-25A, SF-32A, SF-40A, SF-50A, SF-65A, SF-80A, SF-100A, SF-125A

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
