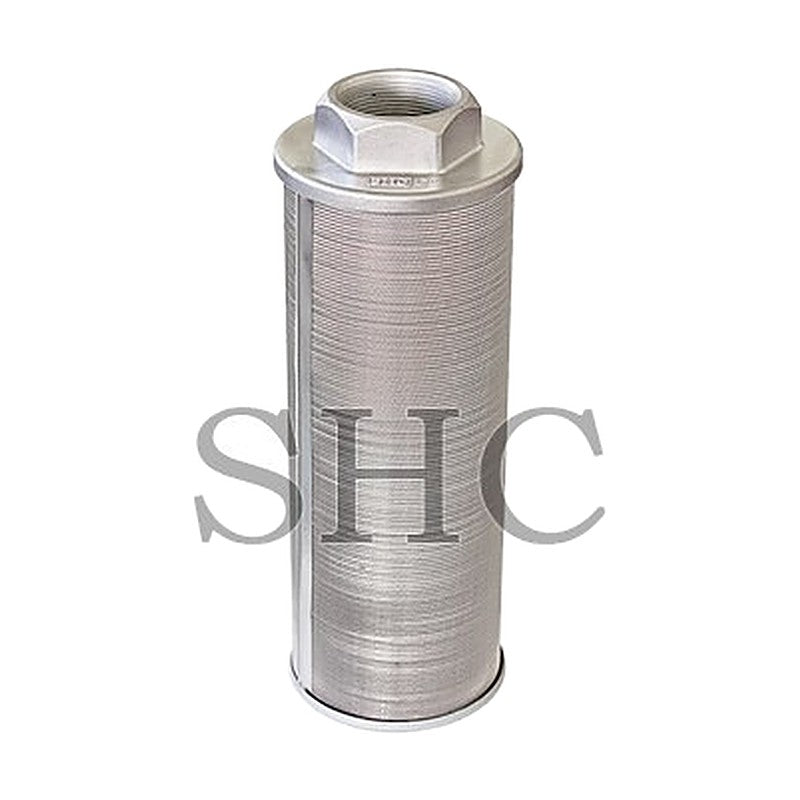

SHC SFN / MST Suction Strainer (PT 1/4 to PT 5)

SFN and MST suction strainers use plain Dutch weave stainless steel cloth, which is easier to clean and more durable than standard mesh.

Key features

Plain Dutch weave stainless steel cloth
SFN: 14/80 weave (220 micron, approx. 65 mesh)
MST: 24/110 weave (120 micron, approx. 120 mesh)
Easy to clean and highly re-usable
Magnet option (-MG)

Specifications

Mounting	In-tank
Media	Plain Dutch weave stainless steel
SFN rating	220 micron (approx. 65 mesh)
MST rating	120 micron (approx. 120 mesh)
Fluids	Suitable for mineral and petroleum-based hydraulic fluids
Brand	SHC
Source	SHC E-Catalog 2018 V1.0, p.7

SFN-02		Model: SFN \| Thread: PT 1/4 \| D: 55 mm \| H: 100 mm \| Flow: 15 L/min
MST-02		Model: MST \| Thread: PT 1/4 \| D: 55 mm \| H: 100 mm \| Flow: 10 L/min
SFN-03		Model: SFN \| Thread: PT 3/8 \| D: 55 mm \| H: 100 mm \| Flow: 18 L/min
MST-03		Model: MST \| Thread: PT 3/8 \| D: 55 mm \| H: 100 mm \| Flow: 16 L/min
SFN-04		Model: SFN \| Thread: PT 1/2 \| D: 65 mm \| H: 164 mm \| Flow: 30 L/min
MST-04		Model: MST \| Thread: PT 1/2 \| D: 65 mm \| H: 164 mm \| Flow: 28 L/min
SFN-06		Model: SFN \| Thread: PT 3/4 \| D: 65 mm \| H: 164 mm \| Flow: 45 L/min
MST-06		Model: MST \| Thread: PT 3/4 \| D: 65 mm \| H: 164 mm \| Flow: 42 L/min
SFN-08		Model: SFN \| Thread: PT 1 \| D: 86 mm \| H: 208 mm \| Flow: 90 L/min
MST-08		Model: MST \| Thread: PT 1 \| D: 86 mm \| H: 208 mm \| Flow: 80 L/min
SFN-10		Model: SFN \| Thread: PT 1-1/4 \| D: 102 mm \| H: 230 mm \| Flow: 150 L/min
MST-10		Model: MST \| Thread: PT 1-1/4 \| D: 102 mm \| H: 230 mm \| Flow: 130 L/min
SFN-12		Model: SFN \| Thread: PT 1-1/2 \| D: 123 mm \| H: 250 mm \| Flow: 220 L/min
MST-12		Model: MST \| Thread: PT 1-1/2 \| D: 123 mm \| H: 250 mm \| Flow: 200 L/min
SFN-16		Model: SFN \| Thread: PT 2 \| D: 123 mm \| H: 340 mm \| Flow: 320 L/min
MST-16		Model: MST \| Thread: PT 2 \| D: 123 mm \| H: 340 mm \| Flow: 300 L/min
SFN-20		Model: SFN \| Thread: PT 2-1/2 \| D: 145 mm \| H: 450 mm \| Flow: 550 L/min
MST-20		Model: MST \| Thread: PT 2-1/2 \| D: 145 mm \| H: 450 mm \| Flow: 500 L/min
SFN-24		Model: SFN \| Thread: PT 3 \| D: 145 mm \| H: 450 mm \| Flow: 730 L/min
MST-24		Model: MST \| Thread: PT 3 \| D: 145 mm \| H: 450 mm \| Flow: 680 L/min
SFN-32		Model: SFN \| Thread: PT 4 \| D: 168 mm \| H: 450 mm \| Flow: 800 L/min
MST-32		Model: MST \| Thread: PT 4 \| D: 168 mm \| H: 450 mm \| Flow: 750 L/min
SFN-40		Model: SFN \| Thread: PT 5 \| D: 195 mm \| H: 450 mm \| Flow: 1000 L/min
MST-40		Model: MST \| Thread: PT 5 \| D: 195 mm \| H: 450 mm \| Flow: 900 L/min

Suction StrainerSHC

24 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SFN / MST Suction Strainer (PT 1/4 to PT 5)

Brand SHC·Suction Strainer

Available part numbers (24)

SFN-02, MST-02, SFN-03, MST-03, SFN-04, MST-04, SFN-06, MST-06, SFN-08, MST-08 + 14 more — see full table ↓

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
