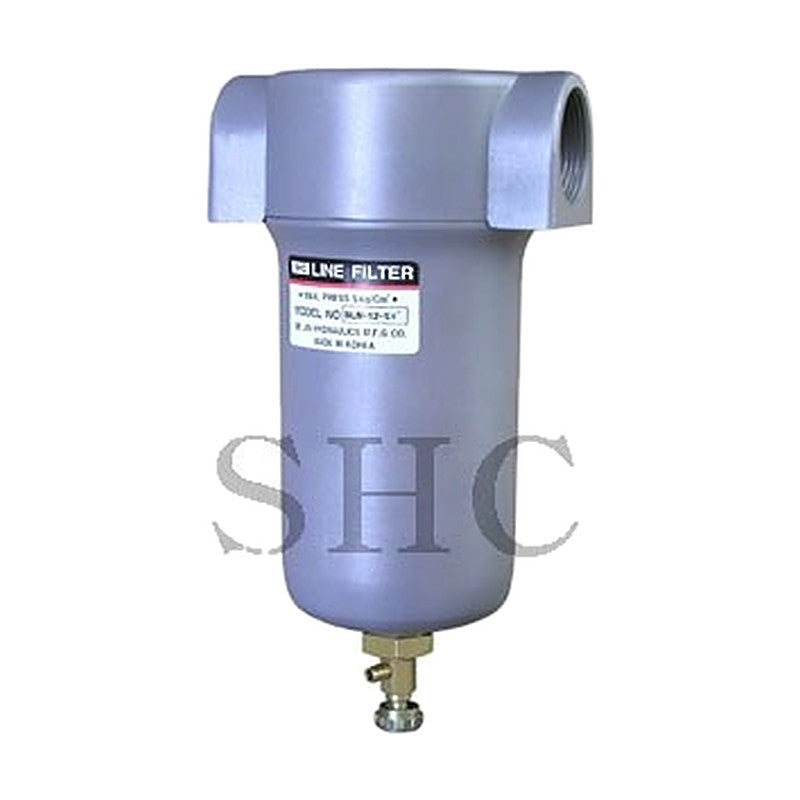

SHC SLN Line Filter (PT 1-1/4 to PT 3)

SHC SLN Line Filter (PT 1-1/4 to PT 3)

SLN line filters are simple die-cast aluminium filters whose element is easy to clean and replace.

Key features

  • Die-cast aluminium
  • Max. working pressure 5 bar
  • 100 mesh standard
  • Magnet and indicator options

Specifications

Material Die-cast aluminium
Max. working pressure 5 bar
Filtration 100 mesh
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Line Filter
Source SHC E-Catalog 2018 V1.0, p.45
SLN-10 Thread: PT 1-1/4 | H: 280 mm | Flow: 120 L/min
SLN-12 Thread: PT 1-1/2 | H: 280 mm | Flow: 160 L/min
SLN-16 Thread: PT 2 | H: 375 mm | Flow: 260 L/min
SLN-20 Thread: PT 2-1/2 | H: 502 mm | Flow: 430 L/min
SLN-24 Thread: PT 3 | H: 502 mm | Flow: 600 L/min
Line FilterSHC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SLN Line Filter (PT 1-1/4 to PT 3)

Brand SHC·Line Filter

Available part numbers (5)

SLN-10, SLN-12, SLN-16, SLN-20, SLN-24

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SLN-10Thread: PT 1-1/4 | H: 280 mm | Flow: 120 L/min
SLN-12Thread: PT 1-1/2 | H: 280 mm | Flow: 160 L/min
SLN-16Thread: PT 2 | H: 375 mm | Flow: 260 L/min
SLN-20Thread: PT 2-1/2 | H: 502 mm | Flow: 430 L/min
SLN-24Thread: PT 3 | H: 502 mm | Flow: 600 L/min
