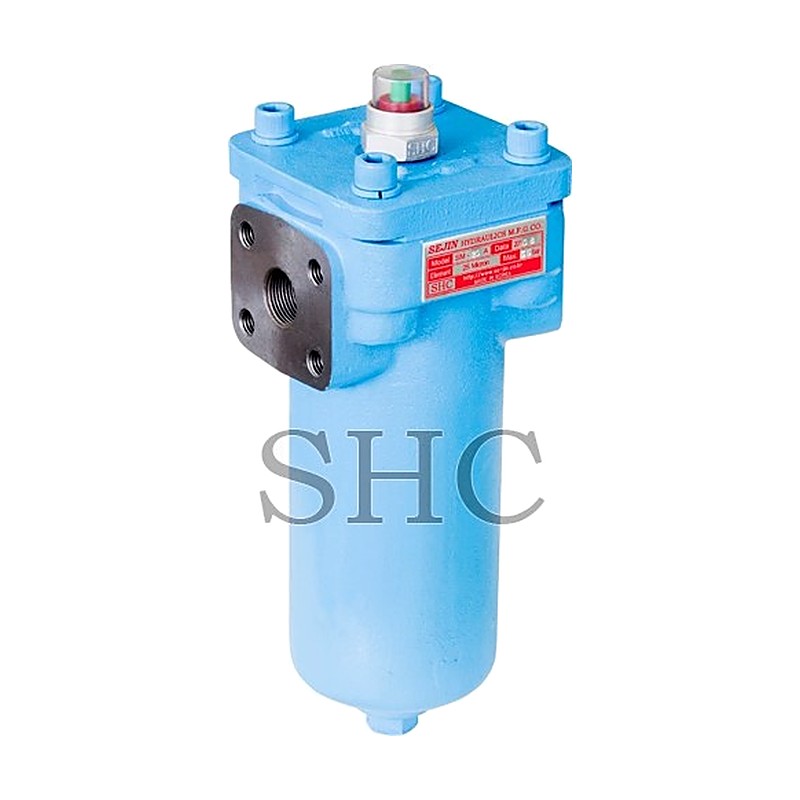

SHC SM High Pressure Line Filter (to 210 bar, PT 3/8 to PT 3)

SM in-line filters are ductile iron high-pressure filters for 35, 70 or 210 bar lines with integral by-pass and SVID indicator.

Key features

Ductile cast iron
35 / 70 / 210 bar versions
25 micron standard
Integral by-pass, SVID indicator standard
65A/80A not available in 210 bar

Specifications

Material	Ductile cast iron
Max. working pressure	35 / 70 / 210 bar
Filtration	25 micron
Indicator	SVID visual (SEID option)
Brand	SHC
Manufacturer	Sejin Hydraulics Mfg. Co. (Korea)
Source	SHC E-Catalog 2018 V1.0, p.47

SM-10A		Thread: PT 3/8 \| H: 157 mm \| D: 100 mm \| Flow: 15 L/min
SM-15A		Thread: PT 1/2 \| H: 157 mm \| D: 100 mm \| Flow: 25 L/min
SM-20A		Thread: PT 3/4 \| H: 232 mm \| D: 100 mm \| Flow: 45 L/min
SM-25A		Thread: PT 1 \| H: 232 mm \| D: 100 mm \| Flow: 70 L/min
SM-32A		Thread: PT 1-1/4 \| H: 297 mm \| D: 125 mm \| Flow: 120 L/min
SM-40A		Thread: PT 1-1/2 \| H: 297 mm \| D: 125 mm \| Flow: 160 L/min
SM-50A		Thread: PT 2 \| H: 356 mm \| D: 150 mm \| Flow: 260 L/min
SM-65A		Thread: PT 2-1/2 \| H: 430 mm \| D: 175 mm \| Flow: 430 L/min
SM-80A		Thread: PT 3 \| H: 430 mm \| D: 175 mm \| Flow: 600 L/min

High Pressure Line FilterSHC

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SM High Pressure Line Filter (to 210 bar, PT 3/8 to PT 3)

Brand SHC·High Pressure Line Filter

Available part numbers (9)

SM-10A, SM-15A, SM-20A, SM-25A, SM-32A, SM-40A, SM-50A, SM-65A, SM-80A

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
