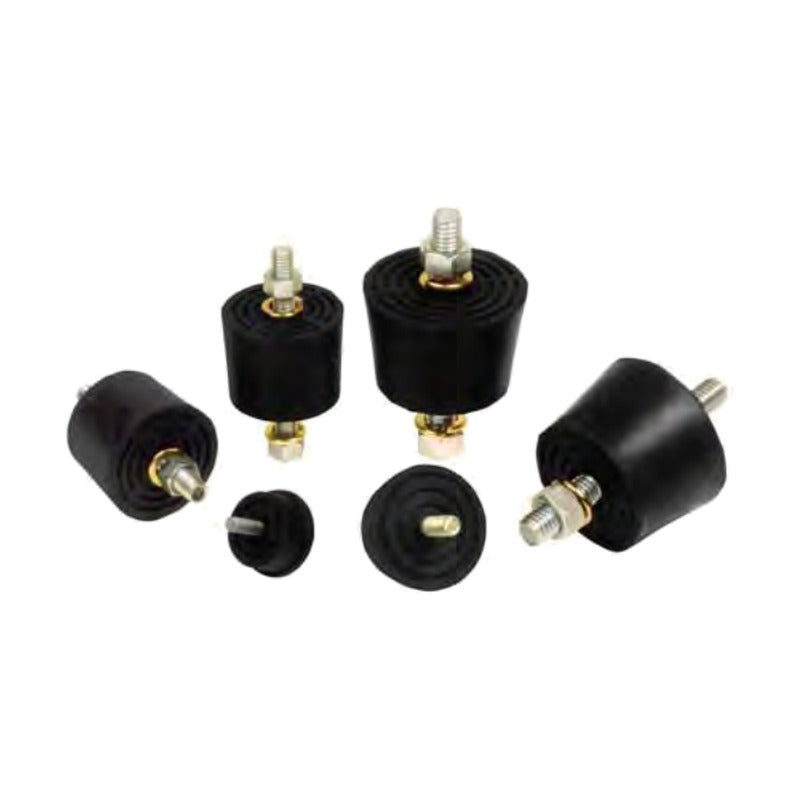

SHC SMVR / SVRR-A Anti-Vibration Mount (M6 to M18)

SHC SMVR / SVRR-A Anti-Vibration Mount (M6 to M18)

SMVR double-stud and SVRR-A single-stud anti-vibration mounts in natural rubber reduce motor noise and vibration.

Key features

  • Natural rubber with zinc-plated S10C studs
  • Double-stud SMVR and single-stud SVRR-A
  • Loads 40 to 600 kg
  • Nuts and washers included

Specifications

Material Natural rubber / S10C zinc plated
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Anti-Vibration Mount
Series SMVR / SVRR-A
Ordering By printed part number
Source SHC E-Catalog 2018 V1.0, p.63
SMVR-06 Type: SMVR (double-stud) | Bolt: M6 | A: 50 mm | Load: 40 kg
SMVR-08 Type: SMVR (double-stud) | Bolt: M8 | A: 65 mm | Load: 40 kg
SMVR-10 Type: SMVR (double-stud) | Bolt: M10 | A: 90 mm | Load: 90 kg
SMVR-12 Type: SMVR (double-stud) | Bolt: M12 | A: 115 mm | Load: 120 kg
SMVR-16 Type: SMVR (double-stud) | Bolt: M16 | A: 142 mm | Load: 350 kg
SMVR-18 Type: SMVR (double-stud) | Bolt: M18 | A: 145 mm | Load: 600 kg
SVRR-A-06 Type: SVRR-A (single-stud) | Bolt: M6 | A: 36 mm | Load: 40 kg
SVRR-A-08 Type: SVRR-A (single-stud) | Bolt: M8 | A: 46 mm | Load: 40 kg
SVRR-A-10 Type: SVRR-A (single-stud) | Bolt: M10 | A: 65 mm | Load: 90 kg
SVRR-A-12S Type: SVRR-A (single-stud) | Bolt: M12 | A: 81 mm | Load: 120 kg
SVRR-A-12M Type: SVRR-A (single-stud) | Bolt: M12 | A: 72 mm | Load: 120 kg
SVRR-A-12L Type: SVRR-A (single-stud) | Bolt: M12 | A: 87 mm | Load: 120 kg
SVRR-A-16 Type: SVRR-A (single-stud) | Bolt: M16 | A: 100 mm | Load: 350 kg
SVRR-A-18M Type: SVRR-A (single-stud) | Bolt: M18 | A: 112 mm | Load: 600 kg
SVRR-A-18L Type: SVRR-A (single-stud) | Bolt: M18 | A: 116 mm | Load: 600 kg
Anti-Vibration MountSHC
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SMVR / SVRR-A Anti-Vibration Mount (M6 to M18)

Brand SHC·Anti-Vibration Mount

Available part numbers (15)

SMVR-06, SMVR-08, SMVR-10, SMVR-12, SMVR-16, SMVR-18, SVRR-A-06, SVRR-A-08, SVRR-A-10, SVRR-A-12S + 5 more — see full table ↓

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMVR-06Type: SMVR (double-stud) | Bolt: M6 | A: 50 mm | Load: 40 kg
SMVR-08Type: SMVR (double-stud) | Bolt: M8 | A: 65 mm | Load: 40 kg
SMVR-10Type: SMVR (double-stud) | Bolt: M10 | A: 90 mm | Load: 90 kg
SMVR-12Type: SMVR (double-stud) | Bolt: M12 | A: 115 mm | Load: 120 kg
SMVR-16Type: SMVR (double-stud) | Bolt: M16 | A: 142 mm | Load: 350 kg
SMVR-18Type: SMVR (double-stud) | Bolt: M18 | A: 145 mm | Load: 600 kg
SVRR-A-06Type: SVRR-A (single-stud) | Bolt: M6 | A: 36 mm | Load: 40 kg
SVRR-A-08Type: SVRR-A (single-stud) | Bolt: M8 | A: 46 mm | Load: 40 kg
SVRR-A-10Type: SVRR-A (single-stud) | Bolt: M10 | A: 65 mm | Load: 90 kg
SVRR-A-12SType: SVRR-A (single-stud) | Bolt: M12 | A: 81 mm | Load: 120 kg
SVRR-A-12MType: SVRR-A (single-stud) | Bolt: M12 | A: 72 mm | Load: 120 kg
SVRR-A-12LType: SVRR-A (single-stud) | Bolt: M12 | A: 87 mm | Load: 120 kg
SVRR-A-16Type: SVRR-A (single-stud) | Bolt: M16 | A: 100 mm | Load: 350 kg
SVRR-A-18MType: SVRR-A (single-stud) | Bolt: M18 | A: 112 mm | Load: 600 kg
SVRR-A-18LType: SVRR-A (single-stud) | Bolt: M18 | A: 116 mm | Load: 600 kg
