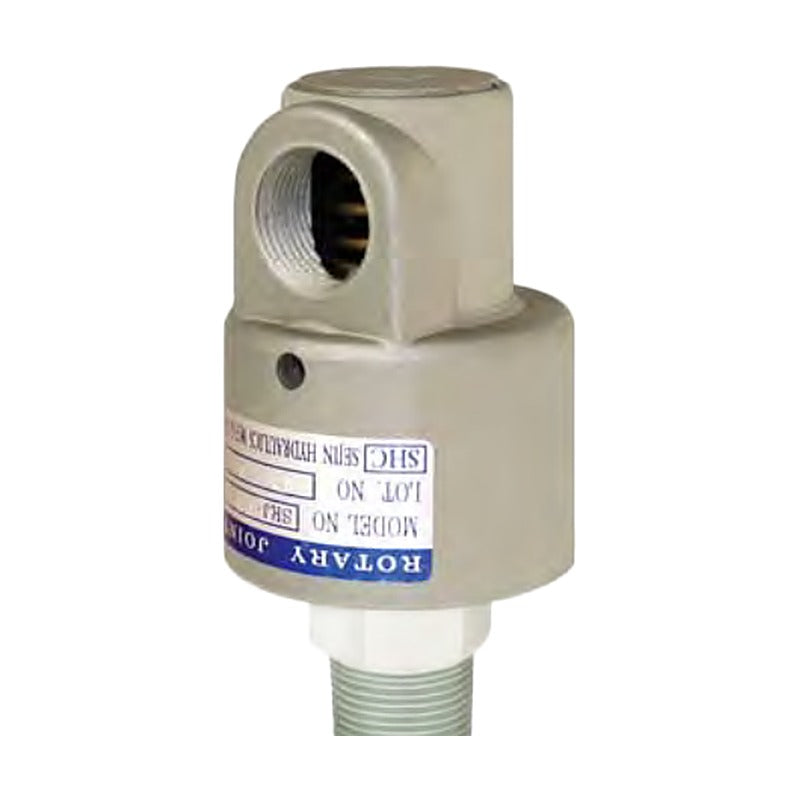

SHC SRJ Rotary Joint (PT 1/4 to PT 1)

SHC SRJ Rotary Joint (PT 1/4 to PT 1)

SRJ rotary joints supply oil to rotating rollers, cylinders and dryers from one side.

Key features

  • Die-cast aluminium
  • Max. 7 bar, 80 C
  • Up to 300 rpm
  • Compact and light

Specifications

Body Die-cast aluminium
Max. working pressure 7 bar
Max. speed 300 rpm
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Rotary Joint
Source SHC E-Catalog 2018 V1.0, p.64
SRJ-02 Thread: PT 1/4 | A: 45 mm | B: 97 mm
SRJ-03 Thread: PT 3/8 | A: 45 mm | B: 97 mm
SRJ-04 Thread: PT 1/2 | A: 65 mm | B: 120 mm
SRJ-06 Thread: PT 3/4 | A: 70 mm | B: 132 mm
SRJ-08 Thread: PT 1 | A: 78 mm | B: 148 mm
Rotary JointSHC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SRJ Rotary Joint (PT 1/4 to PT 1)

Brand SHC·Rotary Joint

Available part numbers (5)

SRJ-02, SRJ-03, SRJ-04, SRJ-06, SRJ-08

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRJ-02Thread: PT 1/4 | A: 45 mm | B: 97 mm
SRJ-03Thread: PT 3/8 | A: 45 mm | B: 97 mm
SRJ-04Thread: PT 1/2 | A: 65 mm | B: 120 mm
SRJ-06Thread: PT 3/4 | A: 70 mm | B: 132 mm
SRJ-08Thread: PT 1 | A: 78 mm | B: 148 mm
