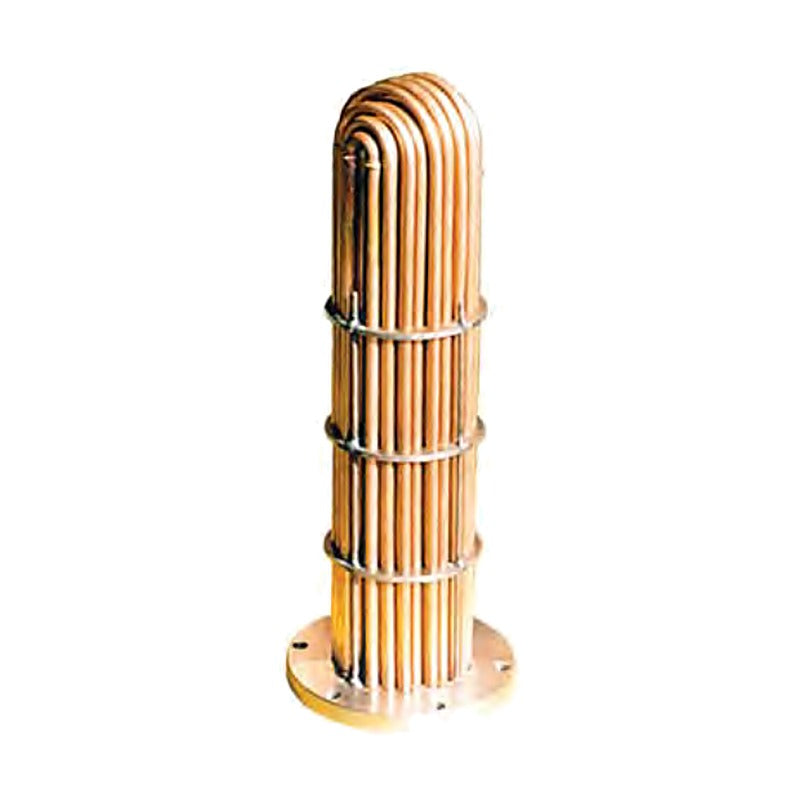

• SHC U-SHA Oil Cooler (U-tube in-tank)
1 1

SHC U-SHA Oil Cooler (U-tube in-tank)

SHC U-SHA Oil Cooler (U-tube in-tank)

U-SHA U-tube oil coolers are installed inside the tank, suiting installations with limited space.

Key features

  • In-tank U-tube design
  • Max. working pressure 7 bar
  • Many sizes
  • Manufactured in Korea by Sejin Hydraulics (SHC)

Specifications

Max. working pressure 7 bar
Mounting In tank, flanged
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Oil Cooler
Series U-SHA
Source SHC E-Catalog 2018 V1.0, p.80
U-SHA-303 A: 524 mm | Port: 1/2 in | Weight: 4.5 kg
U-SHA-304 A: 664 mm | Port: 1/2 in | Weight: 4.9 kg
U-SHA-305 A: 804 mm | Port: 1/2 in | Weight: 5.3 kg
U-SHA-306 A: 944 mm | Port: 1/2 in | Weight: 5.7 kg
U-SHA-307 A: 1084 mm | Port: 1/2 in | Weight: 6.1 kg
U-SHA-308 A: 1224 mm | Port: 1/2 in | Weight: 6.5 kg
U-SHA-410 A: 918 mm | Port: 3/4 in | Weight: 17 kg
U-SHA-412 A: 1078 mm | Port: 3/4 in | Weight: 18 kg
U-SHA-414 A: 1238 mm | Port: 3/4 in | Weight: 19 kg
U-SHA-416 A: 1608 mm | Port: 3/4 in | Weight: 20 kg
U-SHA-510 A: 1041 mm | Port: 3/4 in | Weight: 23 kg
U-SHA-512 A: 1211 mm | Port: 3/4 in | Weight: 24 kg
U-SHA-514 A: 1391 mm | Port: 3/4 in | Weight: 25 kg
U-SHA-516 A: 1571 mm | Port: 3/4 in | Weight: 26 kg
U-SHA-620 A: 1241 mm | Port: 1 in | Weight: 32 kg
U-SHA-623 A: 1391 mm | Port: 1 in | Weight: 34 kg
U-SHA-625 A: 1501 mm | Port: 1 in | Weight: 36 kg
U-SHA-840 A: 1246 mm | Port: 1-1/4 in | Weight: 69 kg
U-SHA-850 A: 1506 mm | Port: 1-1/4 in | Weight: 75 kg
U-SHA-860 A: 1776 mm | Port: 1-1/4 in | Weight: 82 kg
U-SHA-1080 A: 1522 mm | Port: 1-1/2 in | Weight: 115 kg
U-SHA-1090 A: 1672 mm | Port: 1-1/2 in | Weight: 121 kg
U-SHA-10100 A: 1732 mm | Port: 1-1/2 in | Weight: 128 kg
Oil CoolerSHC
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC U-SHA Oil Cooler (U-tube in-tank)

Brand SHC·Oil Cooler

Available part numbers (23)

U-SHA-303, U-SHA-304, U-SHA-305, U-SHA-306, U-SHA-307, U-SHA-308, U-SHA-410, U-SHA-412, U-SHA-414, U-SHA-416 + 13 more — see full table ↓

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
U-SHA-303A: 524 mm | Port: 1/2 in | Weight: 4.5 kg
U-SHA-304A: 664 mm | Port: 1/2 in | Weight: 4.9 kg
U-SHA-305A: 804 mm | Port: 1/2 in | Weight: 5.3 kg
U-SHA-306A: 944 mm | Port: 1/2 in | Weight: 5.7 kg
U-SHA-307A: 1084 mm | Port: 1/2 in | Weight: 6.1 kg
U-SHA-308A: 1224 mm | Port: 1/2 in | Weight: 6.5 kg
U-SHA-410A: 918 mm | Port: 3/4 in | Weight: 17 kg
U-SHA-412A: 1078 mm | Port: 3/4 in | Weight: 18 kg
U-SHA-414A: 1238 mm | Port: 3/4 in | Weight: 19 kg
U-SHA-416A: 1608 mm | Port: 3/4 in | Weight: 20 kg
U-SHA-510A: 1041 mm | Port: 3/4 in | Weight: 23 kg
U-SHA-512A: 1211 mm | Port: 3/4 in | Weight: 24 kg
U-SHA-514A: 1391 mm | Port: 3/4 in | Weight: 25 kg
U-SHA-516A: 1571 mm | Port: 3/4 in | Weight: 26 kg
U-SHA-620A: 1241 mm | Port: 1 in | Weight: 32 kg
U-SHA-623A: 1391 mm | Port: 1 in | Weight: 34 kg
U-SHA-625A: 1501 mm | Port: 1 in | Weight: 36 kg
U-SHA-840A: 1246 mm | Port: 1-1/4 in | Weight: 69 kg
U-SHA-850A: 1506 mm | Port: 1-1/4 in | Weight: 75 kg
U-SHA-860A: 1776 mm | Port: 1-1/4 in | Weight: 82 kg
U-SHA-1080A: 1522 mm | Port: 1-1/2 in | Weight: 115 kg
U-SHA-1090A: 1672 mm | Port: 1-1/2 in | Weight: 121 kg
U-SHA-10100A: 1732 mm | Port: 1-1/2 in | Weight: 128 kg

Need a different model, or a part not listed here? Send us your parts list →
