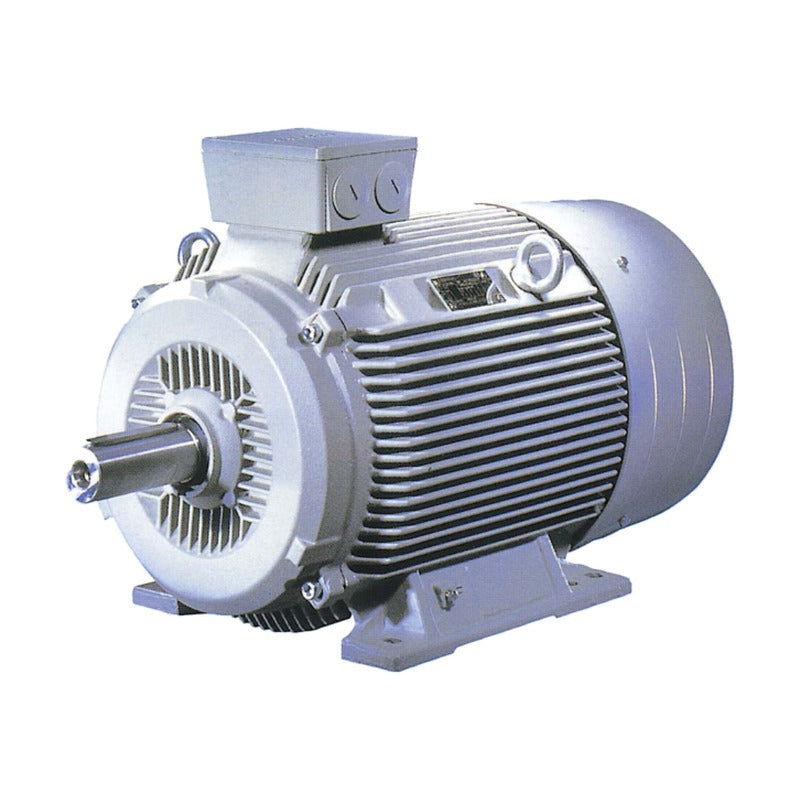

Siemens 1LG4 Low-Voltage Induction Motors (11-200 kW, 180-315)

Siemens 1LG4 Low-Voltage Induction Motors (11-200 kW, 180-315)

Siemens 1LG4 cast-iron low-voltage squirrel-cage induction motors, frame sizes 180 to 315, 11 to 200 kW in 2, 4, 6 and 8-pole versions. IP55 totally enclosed fan-cooled design to IEC/DIN EN standards.

Key features

  • Cast-iron frame sizes 180M-315L
  • IP55 totally enclosed fan-cooled, class F insulation
  • 2, 4, 6 and 8-pole ratings from 11 to 200 kW
  • Foot (IM B3) or flange (IM B5 / IM V1) mounting
  • Optional PTC thermistors, separate fan, heater and brake

Specifications

Motor type 3-phase squirrel-cage induction motor, TEFC
Enclosure IP55
Insulation Class F, temperature rise class B
Standards IEC 60034, DIN EN 50347
Inverter duty Suitable up to 500 V (rise time > 0.1 us)
Voltage digit (11th) 1: 230D/400Y V 50 Hz, 460Y V 60 Hz; 6: 400D/690Y V 50 Hz, 460D V 60 Hz
Mounting digit (12th) 0: IM B3; 1: IM B5 / IM V1
60 Hz 220/380 V Voltage digit 9 with -Z option L2A/L2B (on request)
Options A11 PTC thermistors, G17 separate fan, K45 anti-condensation heater, G26 brake
Source Siemens Catalogue M17 (60 Hz, 2003/2004)
1LG4183-2AA10 Output: 22 kW | Poles: 2 | Frame: 180M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4183-2AA11 Output: 22 kW | Poles: 2 | Frame: 180M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4183-2AA60 Output: 22 kW | Poles: 2 | Frame: 180M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4183-2AA61 Output: 22 kW | Poles: 2 | Frame: 180M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4206-2AA10 Output: 30 kW | Poles: 2 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4206-2AA11 Output: 30 kW | Poles: 2 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4206-2AA60 Output: 30 kW | Poles: 2 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4206-2AA61 Output: 30 kW | Poles: 2 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-2AA10 Output: 37 kW | Poles: 2 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4207-2AA11 Output: 37 kW | Poles: 2 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-2AA60 Output: 37 kW | Poles: 2 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4207-2AA61 Output: 37 kW | Poles: 2 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-2AA10 Output: 45 kW | Poles: 2 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4223-2AA11 Output: 45 kW | Poles: 2 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-2AA60 Output: 45 kW | Poles: 2 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4223-2AA61 Output: 45 kW | Poles: 2 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4253-2AB Output: 55 kW | Poles: 2 | Frame: 250M | Voltage/mounting: specify on order
1LG4280-2AB Output: 75 kW | Poles: 2 | Frame: 280S | Voltage/mounting: specify on order
1LG4283-2AB Output: 90 kW | Poles: 2 | Frame: 280M | Voltage/mounting: specify on order
1LG4310-2AB Output: 110 kW | Poles: 2 | Frame: 315S | Voltage/mounting: specify on order
1LG4313-2AB Output: 132 kW | Poles: 2 | Frame: 315M | Voltage/mounting: specify on order
1LG4316-2AB Output: 160 kW | Poles: 2 | Frame: 315L | Voltage/mounting: specify on order
1LG4317-2AB Output: 200 kW | Poles: 2 | Frame: 315L | Voltage/mounting: specify on order
1LG4183-4AA10 Output: 18.5 kW | Poles: 4 | Frame: 180M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4183-4AA11 Output: 18.5 kW | Poles: 4 | Frame: 180M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4183-4AA60 Output: 18.5 kW | Poles: 4 | Frame: 180M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4183-4AA61 Output: 18.5 kW | Poles: 4 | Frame: 180M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4186-4AA10 Output: 22 kW | Poles: 4 | Frame: 180L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4186-4AA11 Output: 22 kW | Poles: 4 | Frame: 180L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4186-4AA60 Output: 22 kW | Poles: 4 | Frame: 180L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4186-4AA61 Output: 22 kW | Poles: 4 | Frame: 180L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-4AA10 Output: 30 kW | Poles: 4 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4207-4AA11 Output: 30 kW | Poles: 4 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-4AA60 Output: 30 kW | Poles: 4 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4207-4AA61 Output: 30 kW | Poles: 4 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4220-4AA10 Output: 37 kW | Poles: 4 | Frame: 225S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4220-4AA11 Output: 37 kW | Poles: 4 | Frame: 225S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4220-4AA60 Output: 37 kW | Poles: 4 | Frame: 225S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4220-4AA61 Output: 37 kW | Poles: 4 | Frame: 225S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-4AA10 Output: 45 kW | Poles: 4 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4223-4AA11 Output: 45 kW | Poles: 4 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-4AA60 Output: 45 kW | Poles: 4 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4223-4AA61 Output: 45 kW | Poles: 4 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4253-4AA Output: 55 kW | Poles: 4 | Frame: 250M | Voltage/mounting: specify on order
1LG4280-4AA Output: 75 kW | Poles: 4 | Frame: 280S | Voltage/mounting: specify on order
1LG4283-4AA Output: 90 kW | Poles: 4 | Frame: 280M | Voltage/mounting: specify on order
1LG4310-4AA Output: 110 kW | Poles: 4 | Frame: 315S | Voltage/mounting: specify on order
1LG4313-4AA Output: 132 kW | Poles: 4 | Frame: 315M | Voltage/mounting: specify on order
1LG4316-4AA Output: 160 kW | Poles: 4 | Frame: 315L | Voltage/mounting: specify on order
1LG4317-4AA Output: 200 kW | Poles: 4 | Frame: 315L | Voltage/mounting: specify on order
1LG4186-6AA10 Output: 15 kW | Poles: 6 | Frame: 180L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4186-6AA11 Output: 15 kW | Poles: 6 | Frame: 180L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4186-6AA60 Output: 15 kW | Poles: 6 | Frame: 180L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4186-6AA61 Output: 15 kW | Poles: 6 | Frame: 180L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4206-6AA10 Output: 18.5 kW | Poles: 6 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4206-6AA11 Output: 18.5 kW | Poles: 6 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4206-6AA60 Output: 18.5 kW | Poles: 6 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4206-6AA61 Output: 18.5 kW | Poles: 6 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-6AA10 Output: 22 kW | Poles: 6 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4207-6AA11 Output: 22 kW | Poles: 6 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-6AA60 Output: 22 kW | Poles: 6 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4207-6AA61 Output: 22 kW | Poles: 6 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-6AA10 Output: 30 kW | Poles: 6 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4223-6AA11 Output: 30 kW | Poles: 6 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-6AA60 Output: 30 kW | Poles: 6 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4223-6AA61 Output: 30 kW | Poles: 6 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4253-6AA Output: 37 kW | Poles: 6 | Frame: 250M | Voltage/mounting: specify on order
1LG4280-6AA Output: 45 kW | Poles: 6 | Frame: 280S | Voltage/mounting: specify on order
1LG4283-6AA Output: 55 kW | Poles: 6 | Frame: 280M | Voltage/mounting: specify on order
1LG4310-6AA Output: 75 kW | Poles: 6 | Frame: 315S | Voltage/mounting: specify on order
1LG4313-6AA Output: 90 kW | Poles: 6 | Frame: 315M | Voltage/mounting: specify on order
1LG4316-6AA Output: 110 kW | Poles: 6 | Frame: 315L | Voltage/mounting: specify on order
1LG4317-6AA Output: 132 kW | Poles: 6 | Frame: 315L | Voltage/mounting: specify on order
1LG4318-6AA Output: 160 kW | Poles: 6 | Frame: 315L | Voltage/mounting: specify on order
1LG4186-8AB10 Output: 11 kW | Poles: 8 | Frame: 180L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4186-8AB11 Output: 11 kW | Poles: 8 | Frame: 180L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4186-8AB60 Output: 11 kW | Poles: 8 | Frame: 180L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4186-8AB61 Output: 11 kW | Poles: 8 | Frame: 180L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-8AB10 Output: 15 kW | Poles: 8 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4207-8AB11 Output: 15 kW | Poles: 8 | Frame: 200L | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4207-8AB60 Output: 15 kW | Poles: 8 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4207-8AB61 Output: 15 kW | Poles: 8 | Frame: 200L | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4220-8AB10 Output: 18.5 kW | Poles: 8 | Frame: 225S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4220-8AB11 Output: 18.5 kW | Poles: 8 | Frame: 225S | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4220-8AB60 Output: 18.5 kW | Poles: 8 | Frame: 225S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4220-8AB61 Output: 18.5 kW | Poles: 8 | Frame: 225S | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-8AB10 Output: 22 kW | Poles: 8 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B3 foot
1LG4223-8AB11 Output: 22 kW | Poles: 8 | Frame: 225M | Voltage: 230/400 V 50 Hz; 460 V Y 60 Hz | Mounting: IM B5 flange / IM V1
1LG4223-8AB60 Output: 22 kW | Poles: 8 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B3 foot
1LG4223-8AB61 Output: 22 kW | Poles: 8 | Frame: 225M | Voltage: 400/690 V 50 Hz; 460 V D 60 Hz | Mounting: IM B5 flange / IM V1
1LG4253-8AB Output: 30 kW | Poles: 8 | Frame: 250M | Voltage/mounting: specify on order
1LG4280-8AB Output: 37 kW | Poles: 8 | Frame: 280S | Voltage/mounting: specify on order
1LG4283-8AB Output: 45 kW | Poles: 8 | Frame: 280M | Voltage/mounting: specify on order
1LG4310-8AB Output: 55 kW | Poles: 8 | Frame: 315S | Voltage/mounting: specify on order
1LG4313-8AB Output: 75 kW | Poles: 8 | Frame: 315M | Voltage/mounting: specify on order
1LG4316-8AB Output: 90 kW | Poles: 8 | Frame: 315L | Voltage/mounting: specify on order
1LG4317-8AB Output: 110 kW | Poles: 8 | Frame: 315L | Voltage/mounting: specify on order
1LG4318-8AB Output: 132 kW | Poles: 8 | Frame: 315L | Voltage/mounting: specify on order
