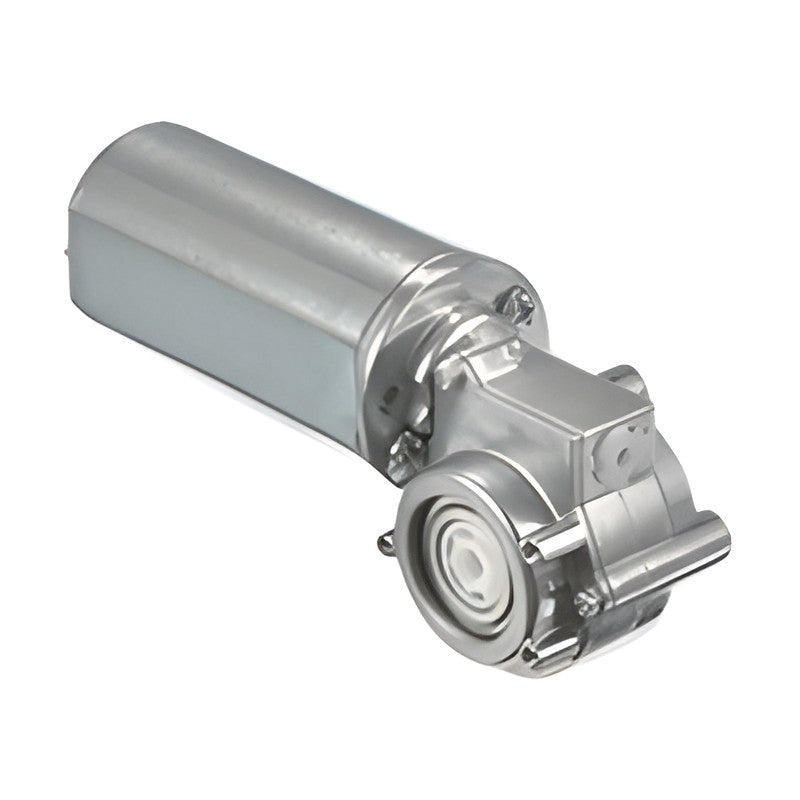

TiMOTION TGM Series 24 V DC Gear Motors (TGM1-TGM5)

TiMOTION TGM Series 24 V DC Gear Motors (TGM1-TGM5)

TiMOTION TGM series DC gear motors that drive spindle-based desk lifting systems (TGM1-TGM4) and medical beds (TGM5), with hexagon output and optional Hall sensors.

Key features

  • Rated torque from 1.8 to 15 Nm after gear reduction
  • Hexagon output hole: 6 mm (TGM1/3/4), 9 mm (TGM2), 12 mm shaft (TGM5)
  • Optional one or two Hall sensors for synchronised movement
  • Options: motor brake, external limit switch TES2 (TGM1-4), plug and cable choices
  • TGM5: IP54 / IP66, 12/24/36 V for medical beds

Specifications

Voltage 24 V DC (TGM1-4); 12/24/36 V DC (TGM5)
Max. torque 15.0 Nm (TGM2, TGM5)
Max. speed 260 RPM no-load at 32 V (TGM3)
Feedback Optional 1 or 2 Hall sensors
TGM1 UL compliant motor version available
TGM5 protection IP54 or IP66
Product segment Ergo Motion (TGM1-4), Care Motion (TGM5)
Source TiMOTION TGM1-TGM5 datasheets
TGM1-A Gear ratio: 39 | Rated torque: 6.8 Nm | Rated speed: 78 RPM | Current: 4.5 A | Motor: 3800 RPM
TGM1-B Gear ratio: 39 | Rated torque: 6.8 Nm | Rated speed: 69 RPM | Current: 3.5 A | Motor: 3400 RPM
TGM1-C Gear ratio: 39 | Rated torque: 6.1 Nm | Rated speed: 51 RPM | Current: 3.0 A | Motor: 2600 RPM
TGM2-A Rated torque: 15.0 Nm | Rated speed: 60 RPM | Current: 8.0 A | No-load (24 V): 80 RPM | Motor: 3800 RPM
TGM2-B Rated torque: 11.0 Nm | Rated speed: 34 RPM | Current: 3.5 A | No-load (24 V): 45 RPM | Motor: 2200 RPM
TGM3-A Rated torque: 4.5 Nm | Rated speed: 65 RPM | Current: 3.5 A | No-load (24 V): 97 RPM | Motor: 3800 RPM
TGM3-B Rated torque: 3.5 Nm | Rated speed: 35 RPM | Current: 2.0 A | No-load (24 V): 58 RPM | Motor: 2200 RPM
TGM3-C Rated torque: 2.3 Nm | Rated speed: 130 RPM | Current: 3.5 A | No-load (24 V): 194 RPM | Motor: 3800 RPM
TGM3-D Rated torque: 1.8 Nm | Rated speed: 70 RPM | Current: 2.0 A | No-load (24 V): 116 RPM | Motor: 2200 RPM
TGM4-A Rated torque: 3.0 Nm | Rated speed: 85 RPM | Current: 3.5 A | No-load (24 V): 133 RPM | Motor: 3800 RPM
TGM4-B Rated torque: 2.3 Nm | Rated speed: 46 RPM | Current: 2.0 A | No-load (24 V): 76 RPM | Motor: 2200 RPM
TGM4-C Rated torque: 2.3 Nm | Rated speed: 103 RPM | Current: 3.0 A | No-load (24 V): 140 RPM | Motor: 4100 RPM
TGM4-D Rated torque: 2.0 Nm | Rated speed: 80 RPM | Current: 2.0 A | No-load (24 V): 114 RPM | Motor: 3300 RPM
TGM5-A Gear ratio: 47 | Rated torque: 15 Nm | Rated speed: 60 RPM | Current: 8 A | Motor: 3800 RPM
DC Geared MotorsTiMOTION
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TGM Series 24 V DC Gear Motors (TGM1-TGM5)

Brand TiMOTION·DC Geared Motors

Available part numbers (14)

TGM1-A, TGM1-B, TGM1-C, TGM2-A, TGM2-B, TGM3-A, TGM3-B, TGM3-C, TGM3-D, TGM4-A + 4 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TGM1-AGear ratio: 39 | Rated torque: 6.8 Nm | Rated speed: 78 RPM | Current: 4.5 A | Motor: 3800 RPM
TGM1-BGear ratio: 39 | Rated torque: 6.8 Nm | Rated speed: 69 RPM | Current: 3.5 A | Motor: 3400 RPM
TGM1-CGear ratio: 39 | Rated torque: 6.1 Nm | Rated speed: 51 RPM | Current: 3.0 A | Motor: 2600 RPM
TGM2-ARated torque: 15.0 Nm | Rated speed: 60 RPM | Current: 8.0 A | No-load (24 V): 80 RPM | Motor: 3800 RPM
TGM2-BRated torque: 11.0 Nm | Rated speed: 34 RPM | Current: 3.5 A | No-load (24 V): 45 RPM | Motor: 2200 RPM
TGM3-ARated torque: 4.5 Nm | Rated speed: 65 RPM | Current: 3.5 A | No-load (24 V): 97 RPM | Motor: 3800 RPM
TGM3-BRated torque: 3.5 Nm | Rated speed: 35 RPM | Current: 2.0 A | No-load (24 V): 58 RPM | Motor: 2200 RPM
TGM3-CRated torque: 2.3 Nm | Rated speed: 130 RPM | Current: 3.5 A | No-load (24 V): 194 RPM | Motor: 3800 RPM
TGM3-DRated torque: 1.8 Nm | Rated speed: 70 RPM | Current: 2.0 A | No-load (24 V): 116 RPM | Motor: 2200 RPM
TGM4-ARated torque: 3.0 Nm | Rated speed: 85 RPM | Current: 3.5 A | No-load (24 V): 133 RPM | Motor: 3800 RPM
TGM4-BRated torque: 2.3 Nm | Rated speed: 46 RPM | Current: 2.0 A | No-load (24 V): 76 RPM | Motor: 2200 RPM
TGM4-CRated torque: 2.3 Nm | Rated speed: 103 RPM | Current: 3.0 A | No-load (24 V): 140 RPM | Motor: 4100 RPM
TGM4-DRated torque: 2.0 Nm | Rated speed: 80 RPM | Current: 2.0 A | No-load (24 V): 114 RPM | Motor: 3300 RPM
TGM5-AGear ratio: 47 | Rated torque: 15 Nm | Rated speed: 60 RPM | Current: 8 A | Motor: 3800 RPM
