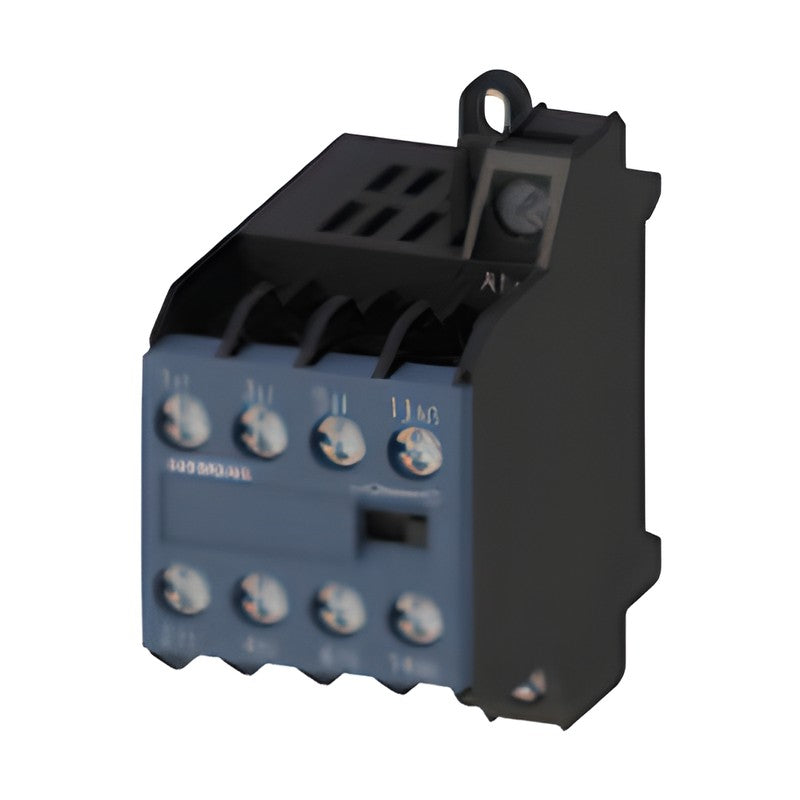

Siemens 3TG10 Power Relays / Miniature Contactors (4 kW)

Siemens 3TG10 Power Relays / Miniature Contactors (4 kW)

3TG10 hum-free power relays/miniature contactors with 4 kW/400 V AC-3 rating, AC or DC operation, screw terminals or flat connectors.

Key features

  • Hum-free, AC operation 45 to 450 Hz or 24 V DC operation
  • AC-3/AC-3e 8.4/6.4 A, 4/3 kW at 400 V
  • AC-1 20 A (screw terminals) or 16 A (flat connectors) at 55 °C
  • Auxiliary contact 1 NO or 1 NC
  • For screw and snap-on mounting on TH 35 DIN rail; PU 10 units

Specifications

Series 3TG10
AC-3/AC-3e (400 V) 8.4/6.4 A, 4/3 kW
Mounting Screw / snap-on TH 35 DIN rail
Packing unit 10 units
Manufacturer Siemens
Product category Magnetic Contactors
Catalog chapter Contactors for switching motors
Catalog section 3TG10 power relays/miniature contactors
Source Siemens Catalog IC 10 · 2026, p. 262
3TG1010-0AC2 Aux. contacts: 1 NO | Coil: 24 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-0AG2 Aux. contacts: 1 NO | Coil: 110 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-0AL2 Aux. contacts: 1 NO | Coil: 230 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-0BB4 Aux. contacts: 1 NO | Coil: 24 V DC | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0AC2 Aux. contacts: 1 NC | Coil: 24 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0AG2 Aux. contacts: 1 NC | Coil: 110 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0AL2 Aux. contacts: 1 NC | Coil: 230 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0BB4 Aux. contacts: 1 NC | Coil: 24 V DC | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-1AC2 Aux. contacts: 1 NO | Coil: 24 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1010-1AG2 Aux. contacts: 1 NO | Coil: 110 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1010-1AL2 Aux. contacts: 1 NO | Coil: 230 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1010-1BB4 Aux. contacts: 1 NO | Coil: 24 V DC | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1AC2 Aux. contacts: 1 NC | Coil: 24 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1AG2 Aux. contacts: 1 NC | Coil: 110 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1AL2 Aux. contacts: 1 NC | Coil: 230 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1BB4 Aux. contacts: 1 NC | Coil: 24 V DC | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
Magnetic ContactorsSiemens
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 3TG10 Power Relays / Miniature Contactors (4 kW)

Brand Siemens·Magnetic Contactors

Available part numbers (16)

3TG1010-0AC2, 3TG1010-0AG2, 3TG1010-0AL2, 3TG1010-0BB4, 3TG1001-0AC2, 3TG1001-0AG2, 3TG1001-0AL2, 3TG1001-0BB4, 3TG1010-1AC2, 3TG1010-1AG2 + 6 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3TG1010-0AC2Aux. contacts: 1 NO | Coil: 24 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-0AG2Aux. contacts: 1 NO | Coil: 110 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-0AL2Aux. contacts: 1 NO | Coil: 230 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-0BB4Aux. contacts: 1 NO | Coil: 24 V DC | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0AC2Aux. contacts: 1 NC | Coil: 24 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0AG2Aux. contacts: 1 NC | Coil: 110 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0AL2Aux. contacts: 1 NC | Coil: 230 V AC 45-450 Hz | Connection: Screw | AC-1 (55 °C): 20 A
3TG1001-0BB4Aux. contacts: 1 NC | Coil: 24 V DC | Connection: Screw | AC-1 (55 °C): 20 A
3TG1010-1AC2Aux. contacts: 1 NO | Coil: 24 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1010-1AG2Aux. contacts: 1 NO | Coil: 110 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1010-1AL2Aux. contacts: 1 NO | Coil: 230 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1010-1BB4Aux. contacts: 1 NO | Coil: 24 V DC | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1AC2Aux. contacts: 1 NC | Coil: 24 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1AG2Aux. contacts: 1 NC | Coil: 110 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1AL2Aux. contacts: 1 NC | Coil: 230 V AC 45-450 Hz | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
3TG1001-1BB4Aux. contacts: 1 NC | Coil: 24 V DC | Connection: Flat connector 6.3 x 0.8 mm | AC-1 (55 °C): 16 A
