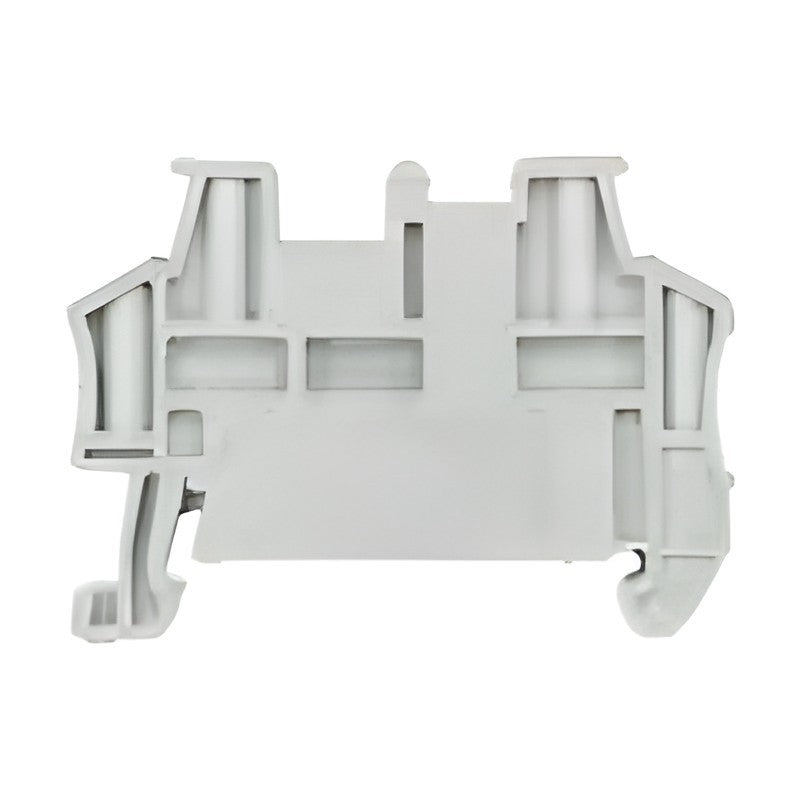

Siemens 8WH terminal block accessories (combs, rails, fuse links)

Siemens 8WH terminal block accessories (combs, rails, fuse links)

General mounting accessories for Siemens 8WH terminal blocks: connecting and reducing combs, end retainers, DIN rails, N busbar parts, test accessories and G fuse links.

Key features

  • Connecting combs 2- to 50-pole for 1.5 to 35 mm² terminals (17.5 to 101 A)
  • Reducing combs for bridging terminals of different sizes
  • Quick-fit plastic and steel end retainers, terminal strip markers
  • DIN rails EN 60715 35 × 7.5 / 35 × 15 mm in steel and copper, 2 m
  • G fuse links quick and slow, 1 to 6.3 A, for 8WH fuse terminals

Specifications

Brand Siemens
Product line 8WH terminal block accessories
Compatible with 8WH1, 8WH2, 8WH6 terminal blocks
Comb color Turquoise
DIN rail standard EN 60715 35 mm
Source Siemens Catalog LV 10 · 2026, p. 992-994
8WH9010-0EB02 Type: Lateral mounting test plug | For: 2.5 mm², 5.2 mm width | Version: Red
8WH9010-2BA02 Type: Spacer plate (test plug assembly) | For: 2.5 mm², 5.2 mm width | Version: Red
8WA2867 Type: Bare infeed terminal for N busbars | For: 6 × 6 and 10 × 3 mm busbars | Version: Conductor up to 4 mm² | Rating: 32 A
8WA2868 Type: Bare infeed terminal for N busbars | For: 6 × 6 and 10 × 3 mm busbars | Version: Conductor up to 25 mm² | Rating: 76 A
8WA2870 Type: Bare infeed terminal for N busbars | For: 6 × 6 and 10 × 3 mm busbars | Version: Conductor up to 35 mm² | Rating: 125 A
8WH9150-1CA00 Type: Terminal strip marker | For: Quick-fit end retainers | Version: Field 20 × 8 mm, gray
8WH9010-0JB00 Type: Test adapter | For: 4 mm test plugs, 4.2-8.2 mm pitch | Version: Gray, finger-safe
8WA1805 Type: End retainer, steel | For: Terminal blocks on DIN rail | Version: Mounting width 10.3 mm
5ST1145 Type: DIN rail | For: EN 60715-35 × 7.5 | Version: Perforated steel, 2 m, 1 mm
5ST1141 Type: DIN rail | For: EN 60715-35 × 7.5 | Version: Non-perforated steel, 2 m, 1 mm
8WA7551 Type: DIN rail | For: EN 60715-35 × 15 | Version: Non-perforated copper, 2 m, 2.3 mm
5ST1142 Type: DIN rail | For: Similar to EN 50022-35 × 15 | Version: Zinc-plated steel, 2 m, 1.5 mm
8GF9324-2 Type: N busbar 6 × 6 mm | For: Four-field | Version: Length 1109 mm | Rating: 125 A
8WA1857 Type: Insulation carrier | For: Insulated mounting of rails | Version: M4
8WH9021-0CB12 Type: Isolating link | For: Fuse terminals | Version: 5 × 20 mm
8WA753 Type: Spacer bracket | For: Raised mounting of terminal strips | Version: M5
8WA752 Type: Spacer | For: Raised mounting of terminal strips | Version: Drill hole 5.5 mm
8WA746 Type: Mounting bracket | For: Mounting rails | Version: M5
8WA1822-7EF16 Type: G fuse link | For: 8WH fuse terminals | Version: Quick, large breaking capacity | Rating: 1 A
8WA1822-7EF18 Type: G fuse link | For: 8WH fuse terminals | Version: Quick, large breaking capacity | Rating: 1.6 A
8WA1822-7EF21 Type: G fuse link | For: 8WH fuse terminals | Version: Quick, large breaking capacity | Rating: 2.5 A
8WA1822-7EF23 Type: G fuse link | For: 8WH fuse terminals | Version: Quick, large breaking capacity | Rating: 4 A
8WA1822-7EF25 Type: G fuse link | For: 8WH fuse terminals | Version: Quick, large breaking capacity | Rating: 6.3 A
8WA1822-7EF76 Type: G fuse link | For: 8WH fuse terminals | Version: Slow, small breaking capacity | Rating: 1 A
8WA1822-7EF78 Type: G fuse link | For: 8WH fuse terminals | Version: Slow, small breaking capacity | Rating: 1.6 A
8WA1822-7EF81 Type: G fuse link | For: 8WH fuse terminals | Version: Slow, small breaking capacity | Rating: 2.5 A
8WA1822-7EF83 Type: G fuse link | For: 8WH fuse terminals | Version: Slow, small breaking capacity | Rating: 4 A
8WA1822-7EF85 Type: G fuse link | For: 8WH fuse terminals | Version: Slow, small breaking capacity | Rating: 6.3 A
8WH9020-0CC10 Type: Reducing comb | For: 2.5/4 mm² to 1.5 mm² | Version: Turquoise, not for 8WH1 through-type
8WH9020-0FC10 Type: Reducing comb | For: 2.5/4 mm² to 6 mm² | Version: Turquoise, not for 8WH1 through-type
8WH9020-0BC10 Type: Reducing comb | For: 2.5/4 mm² to 16 mm² | Version: Turquoise, not for 8WH1 through-type
8WH9020-0EC10 Type: Reducing comb | For: 2.5/4 mm² to 35 mm² | Version: Turquoise, not for 8WH1 through-type
8WH9020-0DC10 Type: Reducing comb | For: 16 mm² to 35 mm² | Version: Turquoise, not for 8WH1 through-type
8WH9020-6AC10 Type: Connecting comb | For: 1.5 mm² (4.2 mm) | Version: 2-pole, turquoise | Rating: 17.5 A
8WH9020-6AD10 Type: Connecting comb | For: 1.5 mm² (4.2 mm) | Version: 3-pole, turquoise | Rating: 17.5 A
8WH9020-6AE10 Type: Connecting comb | For: 1.5 mm² (4.2 mm) | Version: 4-pole, turquoise | Rating: 17.5 A
8WH9020-6AF10 Type: Connecting comb | For: 1.5 mm² (4.2 mm) | Version: 5-pole, turquoise | Rating: 17.5 A
8WH9020-6AL10 Type: Connecting comb | For: 1.5 mm² (4.2 mm) | Version: 10-pole, turquoise | Rating: 17.5 A
8WH9020-6AS10 Type: Connecting comb | For: 1.5 mm² (4.2 mm) | Version: 20-pole, turquoise | Rating: 17.5 A
8WH9020-6BC10 Type: Connecting comb | For: 2.5 mm² (5.2 mm) | Version: 2-pole, turquoise | Rating: 24 A
8WH9020-6BD10 Type: Connecting comb | For: 2.5 mm² (5.2 mm) | Version: 3-pole, turquoise | Rating: 24 A
8WH9020-6BE10 Type: Connecting comb | For: 2.5 mm² (5.2 mm) | Version: 4-pole, turquoise | Rating: 24 A
8WH9020-6BF10 Type: Connecting comb | For: 2.5 mm² (5.2 mm) | Version: 5-pole, turquoise | Rating: 24 A
8WH9020-6BL10 Type: Connecting comb | For: 2.5 mm² (5.2 mm) | Version: 10-pole, turquoise | Rating: 24 A
8WH9020-6BS10 Type: Connecting comb | For: 2.5 mm² (5.2 mm) | Version: 20-pole, turquoise | Rating: 24 A
8WH9020-6BT10 Type: Connecting comb | For: 2.5 mm² (5.2 mm) | Version: 50-pole, turquoise | Rating: 24 A
8WH9020-6CD10 Type: Connecting comb | For: 4 mm² (6.2 mm) | Version: 3-pole, turquoise | Rating: 32 A
8WH9020-6CE10 Type: Connecting comb | For: 4 mm² (6.2 mm) | Version: 4-pole, turquoise | Rating: 32 A
8WH9020-6CL10 Type: Connecting comb | For: 4 mm² (6.2 mm) | Version: 10-pole, turquoise | Rating: 32 A
8WH9020-6CS10 Type: Connecting comb | For: 4 mm² (6.2 mm) | Version: 20-pole, turquoise | Rating: 32 A
8WH9020-6CT10 Type: Connecting comb | For: 4 mm² (6.2 mm) | Version: 50-pole, turquoise | Rating: 32 A
8WH9020-6DC10 Type: Connecting comb | For: 6 mm² (8.2 mm) | Version: 2-pole, turquoise | Rating: 41 A
8WH9020-6DD10 Type: Connecting comb | For: 6 mm² (8.2 mm) | Version: 3-pole, turquoise | Rating: 41 A
8WH9020-6DE10 Type: Connecting comb | For: 6 mm² (8.2 mm) | Version: 4-pole, turquoise | Rating: 41 A
8WH9020-6DF10 Type: Connecting comb | For: 6 mm² (8.2 mm) | Version: 5-pole, turquoise | Rating: 41 A
8WH9020-6DL10 Type: Connecting comb | For: 6 mm² (8.2 mm) | Version: 10-pole, turquoise | Rating: 41 A
8WH9020-6EC10 Type: Connecting comb | For: 10 mm² (10.2 mm) | Version: 2-pole, turquoise | Rating: 57 A
8WH9020-6FC10 Type: Connecting comb | For: 16 mm² (12.2 mm) | Version: 2-pole, turquoise | Rating: 76 A
8WH9020-6GC10 Type: Connecting comb | For: 35 mm² (16 mm) | Version: 2-pole, turquoise | Rating: 101 A
AccessoriesSiemens
59 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 8WH terminal block accessories (combs, rails, fuse links)

Brand Siemens·Accessories

Available part numbers (59)

8WH9010-0EB02, 8WH9010-2BA02, 8WA2867, 8WA2868, 8WA2870, 8WH9150-1CA00, 8WH9010-0JB00, 8WA1805, 5ST1145, 5ST1141 + 49 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
