Siemens LZX/LZS RT Print Relays, Sockets and Brackets

Siemens LZX/LZS RT Print Relays, Sockets and Brackets

Single modules for customer assembly of LZS RT-series coupling relays: 8-pole print relays, plug-in sockets, brackets and combs.

Key features

  • LZX:RT print relays, 8-pole, 5 mm pinning, 1 CO or 2 CO, 12.7 mm
  • Hard gold-plated 1 CO versions for low signal levels
  • Standard plug-in socket and sockets with logical separation (screw or push-in)
  • Fixing/ejection brackets, labeling plates, connecting combs and brackets

Specifications

Series LZS/LZX RT
Pinning 8-pole, 5 mm
Use Customer assembly
Source Siemens Catalog IC 10 · 2026, p. 431-432
LZX:RT315024 Item: Print relay, hard gold-plated | Coil: 24 V DC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT315730 Item: Print relay, hard gold-plated | Coil: 230 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314024 Item: Print relay | Coil: 24 V DC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314524 Item: Print relay | Coil: 24 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314615 Item: Print relay | Coil: 115 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314730 Item: Print relay | Coil: 230 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT424012 Item: Print relay | Coil: 12 V DC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424024 Item: Print relay | Coil: 24 V DC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424524 Item: Print relay | Coil: 24 V AC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424615 Item: Print relay | Coil: 115 V AC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424730 Item: Print relay | Coil: 230 V AC | Contacts: 2 CO | Version: 12.7 mm

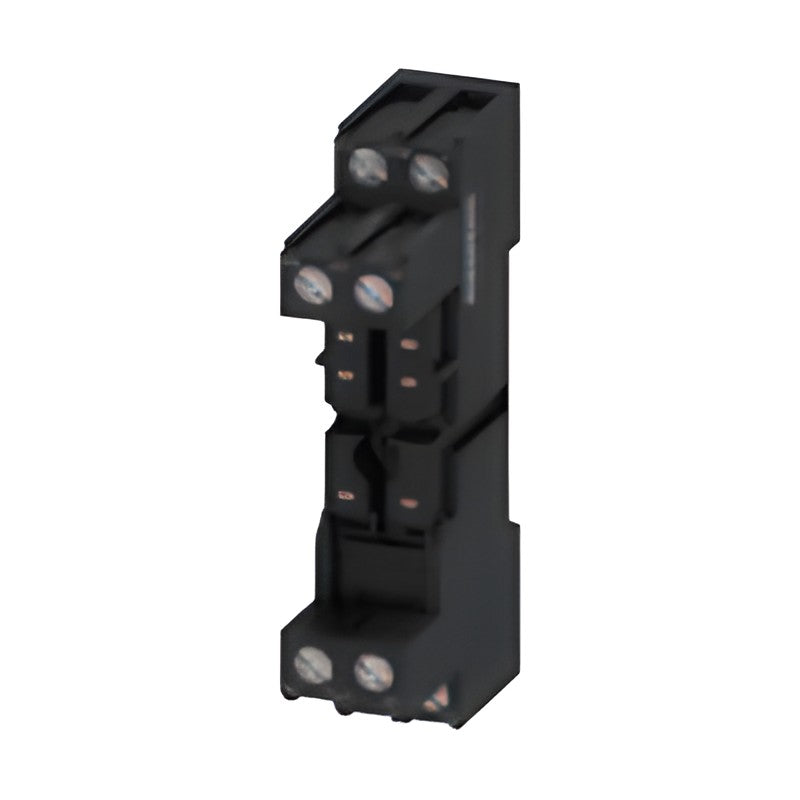

LZS:RT78725 Item: Standard plug-in socket | Coil: -- | Contacts: -- | Version: Screw terminals, 15.5 mm
LZS:RT78726 Item: Plug-in socket, logical separation | Coil: -- | Contacts: -- | Version: Screw terminals, 15.5 mm
LZS:RT7872P Item: Plug-in socket, logical separation | Coil: -- | Contacts: -- | Version: Push-in terminals, 15.5 mm
LZS:RT17016 Item: Fixing/ejection bracket for RT base | Coil: -- | Contacts: -- | Version: 15.5 mm
LZS:RT17040 Item: Labeling plate for RT relays | Coil: -- | Contacts: -- | Version: 15 mm
LZS:RT170R8 Item: Connecting comb, RT screw base | Coil: -- | Contacts: -- | Version: 8-pole, 10 A
LZS:RT170P1 Item: Connecting bracket, RT push-in base | Coil: -- | Contacts: -- | Version: 2-pole, 10 A
AccessoriesSiemens
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens LZX/LZS RT Print Relays, Sockets and Brackets

Brand Siemens·Accessories

Available part numbers (18)

LZX:RT315024, LZX:RT315730, LZX:RT314024, LZX:RT314524, LZX:RT314615, LZX:RT314730, LZX:RT424012, LZX:RT424024, LZX:RT424524, LZX:RT424615 + 8 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LZX:RT315024Item: Print relay, hard gold-plated | Coil: 24 V DC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT315730Item: Print relay, hard gold-plated | Coil: 230 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314024Item: Print relay | Coil: 24 V DC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314524Item: Print relay | Coil: 24 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314615Item: Print relay | Coil: 115 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT314730Item: Print relay | Coil: 230 V AC | Contacts: 1 CO | Version: 12.7 mm
LZX:RT424012Item: Print relay | Coil: 12 V DC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424024Item: Print relay | Coil: 24 V DC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424524Item: Print relay | Coil: 24 V AC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424615Item: Print relay | Coil: 115 V AC | Contacts: 2 CO | Version: 12.7 mm
LZX:RT424730Item: Print relay | Coil: 230 V AC | Contacts: 2 CO | Version: 12.7 mm
LZS:RT78725Item: Standard plug-in socket | Coil: -- | Contacts: -- | Version: Screw terminals, 15.5 mm
LZS:RT78726Item: Plug-in socket, logical separation | Coil: -- | Contacts: -- | Version: Screw terminals, 15.5 mm
LZS:RT7872PItem: Plug-in socket, logical separation | Coil: -- | Contacts: -- | Version: Push-in terminals, 15.5 mm
LZS:RT17016Item: Fixing/ejection bracket for RT base | Coil: -- | Contacts: -- | Version: 15.5 mm
LZS:RT17040Item: Labeling plate for RT relays | Coil: -- | Contacts: -- | Version: 15 mm
LZS:RT170R8Item: Connecting comb, RT screw base | Coil: -- | Contacts: -- | Version: 8-pole, 10 A
LZS:RT170P1Item: Connecting bracket, RT push-in base | Coil: -- | Contacts: -- | Version: 2-pole, 10 A
