• Siemens SIMATIC Drive Controller CPU 1504D TF / CPU 1507D TF
1 1

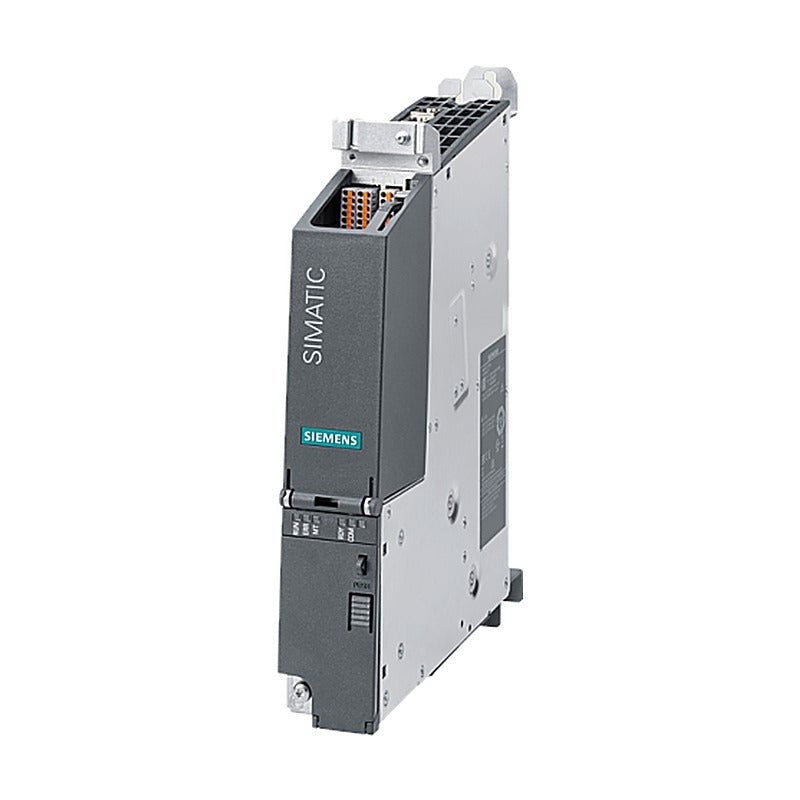

Siemens SIMATIC Drive Controller CPU 1504D TF / CPU 1507D TF

Siemens SIMATIC Drive Controller CPU 1504D TF / CPU 1507D TF

The SIMATIC Drive Controller combines a fail-safe S7-1500 technology CPU, SINAMICS S120 Integrated drive control and technology I/Os in one ultra-compact device.

Key features

  • Fail-safe technology CPU with SINAMICS S120 Integrated drive control
  • Interfaces: 12 DI, 16 DI/DQ, 4 DRIVE-CLiQ, 3 PROFINET (3+1+1 ports), 1 PROFIBUS
  • Motion Control: speed/positioning axes, synchronous operation, camming, kinematics up to 4 axes
  • Up to 6 servo or vector axes on the integrated drive control
  • Configured in TIA Portal with STEP 7 Professional and SINAMICS Startdrive
  • SIMATIC Memory Card required

Specifications

Brand Siemens
Product line SIMATIC Drive Controller
Drive control SINAMICS S120 Integrated
Integrated I/O 12 DI, 16 DI/DQ
Interfaces 4 DRIVE-CLiQ, 3 PROFINET, 1 PROFIBUS
Supported FW S7-1500 FW <= V3.1; SINAMICS V5.2/V5.2 SP3
Memory card SIMATIC Memory Card required
Source Siemens Catalog ST 70 · 2026, p. 1346-1356
6ES7615-4DF10-0AB0 Type: CPU 1504D TF | Work memory, program: 4 MB | Work memory, data: 6 MB | Performance: Medium requirements
6ES7615-7DF10-0AB0 Type: CPU 1507D TF | Work memory, program: 15 MB | Work memory, data: 40 MB | Performance: High to very high requirements
PLC CPUsSiemens
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC Drive Controller CPU 1504D TF / CPU 1507D TF

Brand Siemens·PLC CPUs

Available part numbers (2)

6ES7615-4DF10-0AB0, 6ES7615-7DF10-0AB0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7615-4DF10-0AB0Type: CPU 1504D TF | Work memory, program: 4 MB | Work memory, data: 6 MB | Performance: Medium requirements
6ES7615-7DF10-0AB0Type: CPU 1507D TF | Work memory, program: 15 MB | Work memory, data: 40 MB | Performance: High to very high requirements
