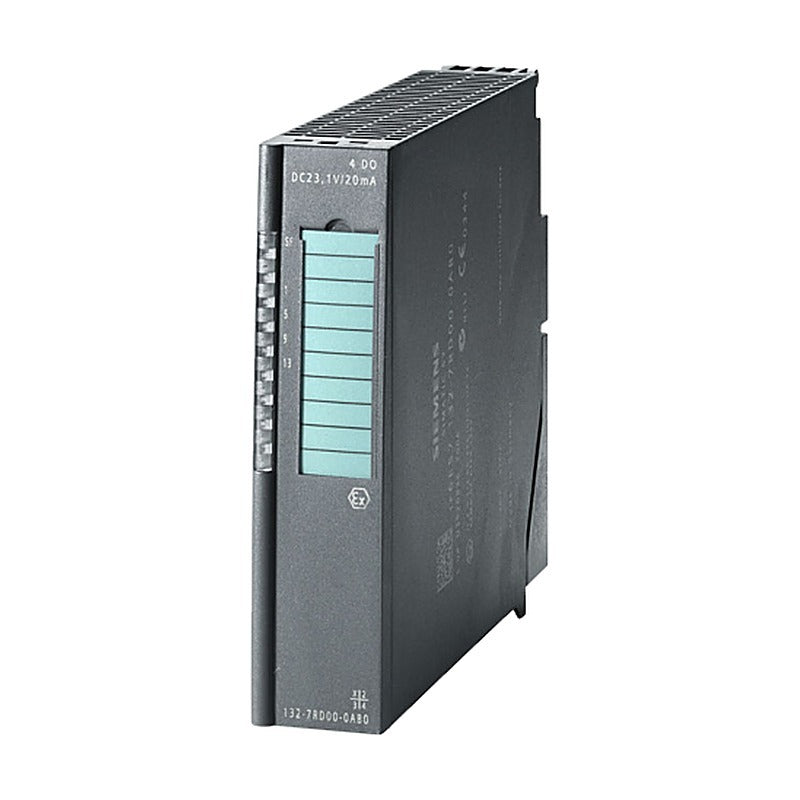

Siemens SIMATIC ET 200iSP Electronic Modules (DI, DQ, AI, AO, F-I/O)

Siemens SIMATIC ET 200iSP Electronic Modules (DI, DQ, AI, AO, F-I/O)

Intrinsically safe SIMATIC ET 200iSP digital, analog, fail-safe and watchdog electronic modules with terminal modules and accessories for zone 1/21.

Key features

  • 8 DI NAMUR with counter/frequency function
  • 4 DQ Ex i with H- or L-switch-off and 2 DQ relay Ex e
  • 4 AI HART 2-/4-wire, 4 AI RTD, 4 AI TC and 4 AO HART
  • Fail-safe 8 F-DI NAMUR, 4 F-DO and 4 F-AI HART up to SIL 3
  • Watchdog module, reserve module and TM-EM/TM-RM terminal modules
  • Labeling sheets and S7-300 DIN rails for wall boxes

Specifications

Brand Siemens
System SIMATIC ET 200iSP
Ex protection EEx i / EEx e
Source Siemens Catalog ST 70 · 2026, p. 1867-1879
6ES7131-7RF00-0AB0 Module: 8 DI NAMUR | Signals: 8 DI NAMUR, 2 counters | Description: Wire-break/short-circuit monitoring
6ES7132-7RD01-0AB0 Module: 4 DQ DC 23.1 V/20 mA | Signals: 4 DQ, H-switch-off | Description: Ex i, 20 mA per channel
6ES7132-7RD11-0AB0 Module: 4 DQ DC 17.4 V/27 mA | Signals: 4 DQ, H-switch-off | Description: Ex i, 27 mA per channel
6ES7132-7RD22-0AB0 Module: 4 DQ DC 17.4 V/40 mA | Signals: 4 DQ, H-switch-off | Description: Ex i, 40 mA per channel
6ES7132-7GD00-0AB0 Module: 4 DQ DC 23.1 V/20 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, 20 mA per channel
6ES7132-7GD10-0AB0 Module: 4 DQ DC 17.4 V/27 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, 27 mA per channel
6ES7132-7GD21-0AB0 Module: 4 DQ DC 17.4 V/40 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, 40 mA per channel
6ES7132-7GD30-0AB0 Module: 4 DQ DC 25.5 V/22 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, PCS 7 V7.1 SP2 or higher
6ES7132-7HB00-0AB0 Module: 2 DQ relay 60 V AC/DC, 2 A | Signals: 2 relay outputs | Description: Ex e, on TM-RM/RM terminal module
6ES7134-7TD00-0AB0 Module: 4 AI I 2-wire HART | Signals: 4 AI 4 ... 20 mA HART | Description: 12 bit + sign
6ES7134-7TD50-0AB0 Module: 4 AI I 4-wire HART | Signals: 4 AI 0/4 ... 20 mA HART | Description: 12 bit + sign
6ES7134-7SD51-0AB0 Module: 4 AI RTD | Signals: 4 RTD Pt100/Ni100 | Description: 15 bit + sign
6ES7134-7SD00-0AB0 Module: 4 AI TC | Signals: 4 thermocouples | Description: 15 bit + sign
6ES7135-7TD00-0AB0 Module: 4 AO I HART | Signals: 4 AO 0/4 ... 20 mA HART | Description: 14 bit
6ES7138-7FN00-0AB0 Module: 8 F-DI Ex NAMUR | Signals: 8 F-DI (1oo1) / 4 (1oo2) | Description: SIL3/Cat.3/PLe
6ES7138-7FD00-0AB0 Module: 4 F-DO Ex 17.4 V DC/40 mA | Signals: 4 F-DO, P/P switching | Description: SIL3/Cat.3/PLe
6ES7138-7FA00-0AB0 Module: 4 F-AI Ex HART | Signals: 4 F-AI 0/4 ... 20 mA | Description: SIL3/Cat.3/PLe, 15 bit + sign
6ES7138-7BB00-0AB0 Module: Watchdog module | Signals: - | Description: Failure monitoring, actuator disconnect
6ES7138-7AA00-0AA0 Module: Reserve module | Signals: - | Description: Placeholder for any electronic module
6ES7193-7CA00-0AA0 Module: TM-EM/EM60S terminal module | Signals: - | Description: Hazardous area, blue screw terminals
6ES7193-7CA10-0AA0 Module: TM-EM/EM60C terminal module | Signals: - | Description: Hazardous area, blue spring terminals
6ES7193-7CA20-0AA0 Module: TM-EM/EM60S terminal module | Signals: - | Description: Non-hazardous, black screw terminals
6ES7193-7CB00-0AA0 Module: TM-RM/RM60S terminal module | Signals: - | Description: For 2 DQ relay, screw terminals
6ES7193-7BH00-0AA0 Module: Labeling sheet, petrol | Signals: - | Description: DIN A4, 10 sheets
6ES7193-7BB00-0AA0 Module: Labeling sheet, yellow | Signals: - | Description: DIN A4, 10 sheets
6ES7390-1AF85-0AA0 Module: S7-300 DIN rail 585 mm | Signals: - | Description: For 650 mm wide wall box
6ES7390-1AJ85-0AA0 Module: S7-300 DIN rail 885 mm | Signals: - | Description: For 950 mm wide wall box
PLC I/O ModulesSiemens
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200iSP Electronic Modules (DI, DQ, AI, AO, F-I/O)

Brand Siemens·PLC I/O Modules

Available part numbers (27)

6ES7131-7RF00-0AB0, 6ES7132-7RD01-0AB0, 6ES7132-7RD11-0AB0, 6ES7132-7RD22-0AB0, 6ES7132-7GD00-0AB0, 6ES7132-7GD10-0AB0, 6ES7132-7GD21-0AB0, 6ES7132-7GD30-0AB0, 6ES7132-7HB00-0AB0, 6ES7134-7TD00-0AB0 + 17 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7131-7RF00-0AB0Module: 8 DI NAMUR | Signals: 8 DI NAMUR, 2 counters | Description: Wire-break/short-circuit monitoring
6ES7132-7RD01-0AB0Module: 4 DQ DC 23.1 V/20 mA | Signals: 4 DQ, H-switch-off | Description: Ex i, 20 mA per channel
6ES7132-7RD11-0AB0Module: 4 DQ DC 17.4 V/27 mA | Signals: 4 DQ, H-switch-off | Description: Ex i, 27 mA per channel
6ES7132-7RD22-0AB0Module: 4 DQ DC 17.4 V/40 mA | Signals: 4 DQ, H-switch-off | Description: Ex i, 40 mA per channel
6ES7132-7GD00-0AB0Module: 4 DQ DC 23.1 V/20 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, 20 mA per channel
6ES7132-7GD10-0AB0Module: 4 DQ DC 17.4 V/27 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, 27 mA per channel
6ES7132-7GD21-0AB0Module: 4 DQ DC 17.4 V/40 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, 40 mA per channel
6ES7132-7GD30-0AB0Module: 4 DQ DC 25.5 V/22 mA | Signals: 4 DQ, L-switch-off | Description: Ex i, PCS 7 V7.1 SP2 or higher
6ES7132-7HB00-0AB0Module: 2 DQ relay 60 V AC/DC, 2 A | Signals: 2 relay outputs | Description: Ex e, on TM-RM/RM terminal module
6ES7134-7TD00-0AB0Module: 4 AI I 2-wire HART | Signals: 4 AI 4 ... 20 mA HART | Description: 12 bit + sign
6ES7134-7TD50-0AB0Module: 4 AI I 4-wire HART | Signals: 4 AI 0/4 ... 20 mA HART | Description: 12 bit + sign
6ES7134-7SD51-0AB0Module: 4 AI RTD | Signals: 4 RTD Pt100/Ni100 | Description: 15 bit + sign
6ES7134-7SD00-0AB0Module: 4 AI TC | Signals: 4 thermocouples | Description: 15 bit + sign
6ES7135-7TD00-0AB0Module: 4 AO I HART | Signals: 4 AO 0/4 ... 20 mA HART | Description: 14 bit
6ES7138-7FN00-0AB0Module: 8 F-DI Ex NAMUR | Signals: 8 F-DI (1oo1) / 4 (1oo2) | Description: SIL3/Cat.3/PLe
6ES7138-7FD00-0AB0Module: 4 F-DO Ex 17.4 V DC/40 mA | Signals: 4 F-DO, P/P switching | Description: SIL3/Cat.3/PLe
6ES7138-7FA00-0AB0Module: 4 F-AI Ex HART | Signals: 4 F-AI 0/4 ... 20 mA | Description: SIL3/Cat.3/PLe, 15 bit + sign
6ES7138-7BB00-0AB0Module: Watchdog module | Signals: - | Description: Failure monitoring, actuator disconnect
6ES7138-7AA00-0AA0Module: Reserve module | Signals: - | Description: Placeholder for any electronic module
6ES7193-7CA00-0AA0Module: TM-EM/EM60S terminal module | Signals: - | Description: Hazardous area, blue screw terminals
6ES7193-7CA10-0AA0Module: TM-EM/EM60C terminal module | Signals: - | Description: Hazardous area, blue spring terminals
6ES7193-7CA20-0AA0Module: TM-EM/EM60S terminal module | Signals: - | Description: Non-hazardous, black screw terminals
6ES7193-7CB00-0AA0Module: TM-RM/RM60S terminal module | Signals: - | Description: For 2 DQ relay, screw terminals
6ES7193-7BH00-0AA0Module: Labeling sheet, petrol | Signals: - | Description: DIN A4, 10 sheets
6ES7193-7BB00-0AA0Module: Labeling sheet, yellow | Signals: - | Description: DIN A4, 10 sheets
6ES7390-1AF85-0AA0Module: S7-300 DIN rail 585 mm | Signals: - | Description: For 650 mm wide wall box
6ES7390-1AJ85-0AA0Module: S7-300 DIN rail 885 mm | Signals: - | Description: For 950 mm wide wall box
