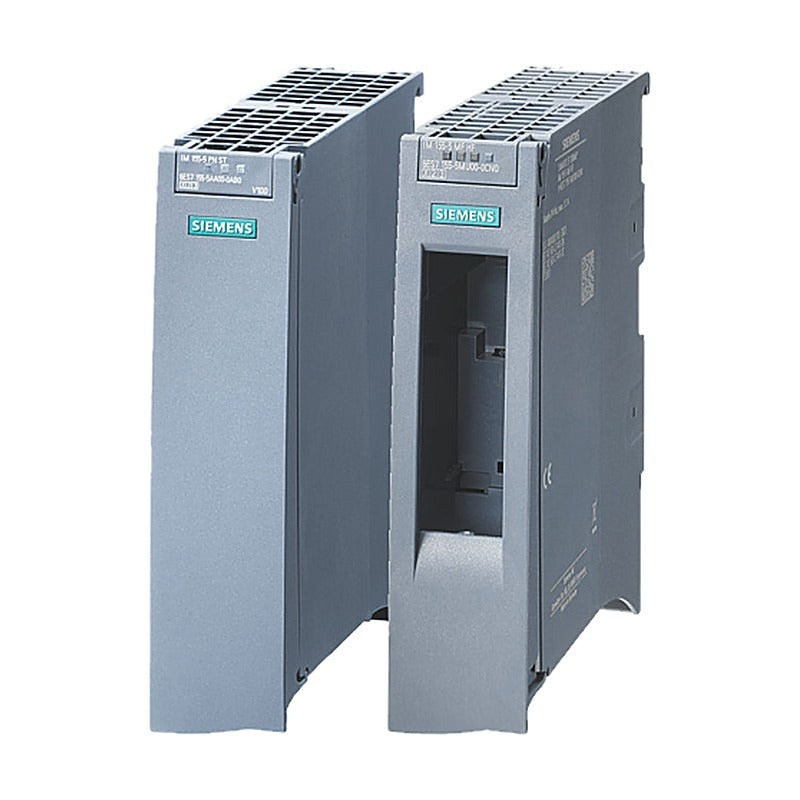

Siemens SIMATIC ET 200MP IM 155-5 Interface Modules (PN, MF, DP)

Siemens SIMATIC ET 200MP IM 155-5 Interface Modules (PN, MF, DP)

SIMATIC ET 200MP IM 155-5 interface modules for connecting S7-1500-design I/O modules to PROFINET, MultiFieldbus or PROFIBUS.

Key features

  • IM 155-5 MF HF MultiFieldbus with pluggable BusAdapters, up to 30 modules
  • IM 155-5 PN BA and PN ST with integrated 2-port switch
  • IM 155-5 DP ST for PROFIBUS, incl. connection plug
  • IRT, isochronous mode, MRP, shared device, S2 redundancy (MF HF)
  • IP20, 35 mm module width on S7-1500 mounting rail

Specifications

Brand Siemens
System SIMATIC ET 200MP
Degree of protection IP20
Module width 35 mm
Source Siemens Catalog ST 70 · 2026, p. 1817-1820
6ES7155-5MU00-0CN0 Item: IM 155-5 MF HF | Network: PROFINET / MultiFieldbus | Capacity: Max. 30 I/O modules
6ES7155-5AA00-0AA0 Item: IM 155-5 PN BA | Network: PROFINET, 2 x RJ45 | Capacity: Up to 12 I/O modules
6ES7155-5AA01-0AB0 Item: IM 155-5 PN ST | Network: PROFINET, 2 x RJ45 | Capacity: 12 (30 with PS) I/O modules
6ES7155-5BA00-0AB0 Item: IM 155-5 DP ST | Network: PROFIBUS DP | Capacity: Max. 12 S7-1500 modules
6ES7590-5DA00-0AA0 Item: Strain relief | Network: - | Capacity: IM 155-5 MF HF on BA, 5 units
PLC Communication ModulesSiemens
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200MP IM 155-5 Interface Modules (PN, MF, DP)

Brand Siemens·PLC Communication Modules

Available part numbers (5)

6ES7155-5MU00-0CN0, 6ES7155-5AA00-0AA0, 6ES7155-5AA01-0AB0, 6ES7155-5BA00-0AB0, 6ES7590-5DA00-0AA0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7155-5MU00-0CN0Item: IM 155-5 MF HF | Network: PROFINET / MultiFieldbus | Capacity: Max. 30 I/O modules
6ES7155-5AA00-0AA0Item: IM 155-5 PN BA | Network: PROFINET, 2 x RJ45 | Capacity: Up to 12 I/O modules
6ES7155-5AA01-0AB0Item: IM 155-5 PN ST | Network: PROFINET, 2 x RJ45 | Capacity: 12 (30 with PS) I/O modules
6ES7155-5BA00-0AB0Item: IM 155-5 DP ST | Network: PROFIBUS DP | Capacity: Max. 12 S7-1500 modules
6ES7590-5DA00-0AA0Item: Strain relief | Network: - | Capacity: IM 155-5 MF HF on BA, 5 units
