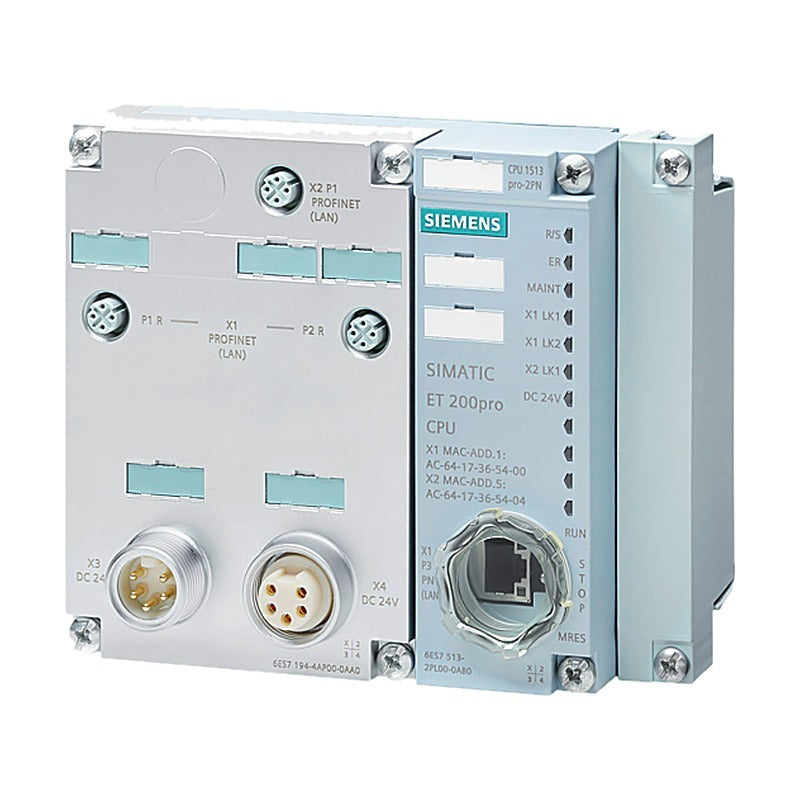

Siemens SIMATIC ET 200pro CPUs (1513pro, 1516pro, F, IM 154-8 F PN/DP)

SIMATIC ET 200pro distributed controllers in IP65/IP67 design for control directly at the machine, in standard and fail-safe versions.

Key features

CPU 1513pro/1516pro based on S7-1500 CPU 1513/1516 (F versions for SIL 3 / PL e)
PROFINET IO IRT interface with integrated 3-port switch plus additional PROFINET IO RT interface
Integrated Motion Control and web server; OPC UA as runtime option
IM 154-8 F PN/DP CPU: fail-safe PROFINET IO controller equivalent to CPU 315F PN/DP
Connection via CM CPU 2PN M12 / 7/8" connection module

Specifications

Brand	Siemens
Product line	SIMATIC ET 200pro
Product type	Distributed CPU
Degree of protection	IP65/IP67
Installation	Directly at the machine
Source	Siemens Catalog ST 70 · 2026, p. 1229-1257

6ES7513-2PM03-0AB0		Type: CPU 1513pro-2 PN \| Work memory: 600 KB program / 2.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Standard \| Memory card: SIMATIC Memory Card
6ES7516-2PP03-0AB0		Type: CPU 1516pro-2 PN \| Work memory: 2 MB program / 7.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Standard \| Memory card: SIMATIC Memory Card
6ES7513-2GM03-0AB0		Type: CPU 1513pro F-2 PN \| Work memory: 900 KB program / 2.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Fail-safe \| Memory card: SIMATIC Memory Card
6ES7516-2GP03-0AB0		Type: CPU 1516pro F-2 PN \| Work memory: 3 MB program / 7.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Fail-safe \| Memory card: SIMATIC Memory Card
6ES7154-8FB01-0AB0		Type: IM 154-8 F PN/DP CPU V3.2 \| Work memory: 512 KB \| Interfaces: PROFINET, 3-port switch \| Safety: Fail-safe \| Memory card: Micro Memory Card (MMC)

PLC CPUsSiemens

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200pro CPUs (1513pro, 1516pro, F, IM 154-8 F PN/DP)

Brand Siemens·PLC CPUs

Available part numbers (5)

6ES7513-2PM03-0AB0, 6ES7516-2PP03-0AB0, 6ES7513-2GM03-0AB0, 6ES7516-2GP03-0AB0, 6ES7154-8FB01-0AB0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	6ES7513-2PM03-0AB0	Type: CPU 1513pro-2 PN \| Work memory: 600 KB program / 2.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Standard \| Memory card: SIMATIC Memory Card
	6ES7516-2PP03-0AB0	Type: CPU 1516pro-2 PN \| Work memory: 2 MB program / 7.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Standard \| Memory card: SIMATIC Memory Card
	6ES7513-2GM03-0AB0	Type: CPU 1513pro F-2 PN \| Work memory: 900 KB program / 2.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Fail-safe \| Memory card: SIMATIC Memory Card
	6ES7516-2GP03-0AB0	Type: CPU 1516pro F-2 PN \| Work memory: 3 MB program / 7.5 MB data \| Interfaces: PN IO IRT + PN IO RT \| Safety: Fail-safe \| Memory card: SIMATIC Memory Card
	6ES7154-8FB01-0AB0	Type: IM 154-8 F PN/DP CPU V3.2 \| Work memory: 512 KB \| Interfaces: PROFINET, 3-port switch \| Safety: Fail-safe \| Memory card: Micro Memory Card (MMC)
