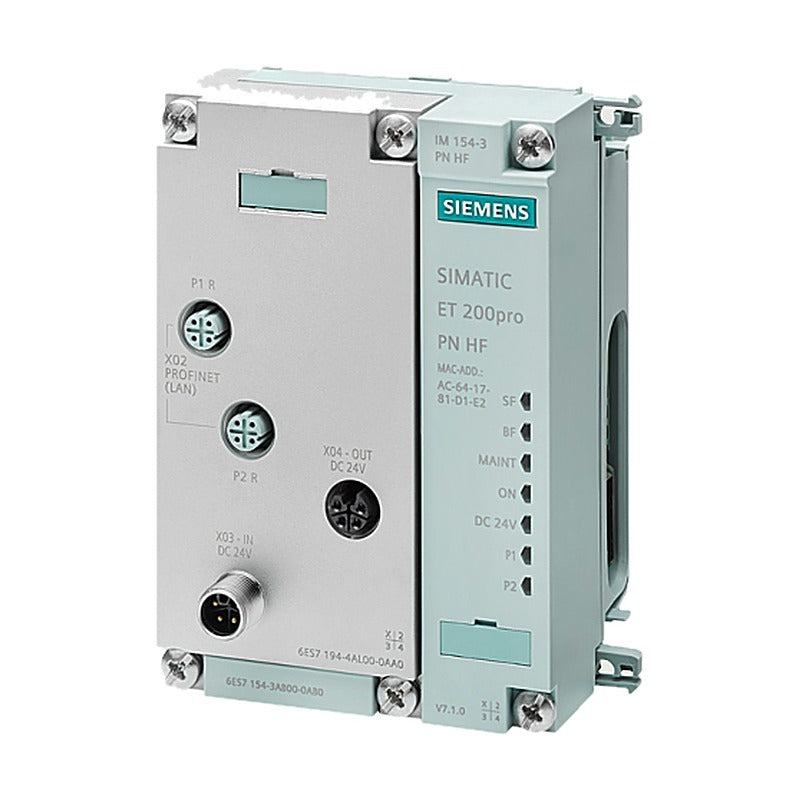

Siemens SIMATIC ET 200pro Interface Modules IM 154 (DP, PN, EIP)

Siemens SIMATIC ET 200pro Interface Modules IM 154 (DP, PN, EIP)

SIMATIC ET 200pro IM 154 interface modules and connection modules linking the IP65/67 ET 200pro station to PROFIBUS DP, PROFINET IO or EtherNet/IP.

Key features

  • IM 154-1 / IM 154-2 HF for PROFIBUS DP; IM 154-2 supports PROFIsafe
  • IM 154-3 PN HF / IM 154-4 PN HF for PROFINET IO with PROFIsafe support
  • Connection modules for ECOFAST, M12/7/8", direct, RJ45 push-pull and SCRJ FO connection
  • EtherNet/IP interface module and terminal module available (ZNX articles)
  • Degree of protection IP65/IP66/IP67 for cabinet-free installation

Specifications

Brand Siemens
Product line SIMATIC ET 200pro
Category Interface / connection modules
Degree of protection IP65/IP66/IP67
Supply 24 V DC
Variants listed 14
Source Siemens Catalog ST 70 · 2026, p. 1886-1950
6ES7154-1AA01-0AB0 Type: IM 154-1 DP | Fieldbus: PROFIBUS DP | Connection: via CM IM DP | Description: Interface module
6ES7154-2AA01-0AB0 Type: IM 154-2 DP High Feature | Fieldbus: PROFIBUS DP | Connection: via CM IM DP | Description: Interface module, PROFIsafe
6ES7194-4AA00-0AA0 Type: CM IM DP ECOFAST | Fieldbus: PROFIBUS DP | Connection: 2 x ECOFAST Cu | Description: Connection module
6ES7194-4AC00-0AA0 Type: CM IM DP direct | Fieldbus: PROFIBUS DP | Connection: Up to 6 x M20 cable glands | Description: Connection module
6ES7194-4AD00-0AA0 Type: CM IM DP M12, 7/8" | Fieldbus: PROFIBUS DP | Connection: 2 x M12 + 2 x 7/8" | Description: Connection module
6ES7154-3AB00-0AB0 Type: IM 154-3 PN High Feature | Fieldbus: PROFINET IO | Connection: via CM IM PN | Description: Interface module, PROFIsafe
6ES7154-4AB10-0AB0 Type: IM 154-4 PN High Feature | Fieldbus: PROFINET IO | Connection: via CM IM PN | Description: Interface module, PROFIsafe
6ES7194-4AK00-0AA0 Type: CM IM PN M12, 7/8" S | Fieldbus: PROFINET IO | Connection: 2 x M12 + 2 x 7/8" | Description: Connection module for IM 154-3 PN
6ES7194-4AL00-0AA0 Type: CM IM PN M12, M12-L S | Fieldbus: PROFINET IO | Connection: 2 x M12-D + 2 x M12-L | Description: Connection module for IM 154-3 PN
6ES7194-4AJ00-0AA0 Type: CM IM PN M12, 7/8" | Fieldbus: PROFINET IO | Connection: 2 x M12 + 2 x 7/8" | Description: Connection module for IM 154-4 PN
6ES7194-4AF00-0AA0 Type: CM IM PN 2xRJ45 | Fieldbus: PROFINET IO | Connection: 2 x RJ45 + 2 x push-pull power | Description: Connection module for IM 154-4 PN
6ES7194-4AG00-0AA0 Type: CM IM PN 2xSCRJ FO | Fieldbus: PROFINET IO | Connection: 2 x SCRJ FO + 2 x push-pull power | Description: Connection module for IM 154-4 PN
ZNX:EIP200PRO Type: EtherNet/IP interface module | Fieldbus: EtherNet/IP | Connection: via terminal module | Description: Incl. bus terminating module
ZNX:EIP200PROCM1 Type: EtherNet/IP terminal module | Fieldbus: EtherNet/IP | Connection: Fieldbus connection | Description: Connection module
PLC I/O SystemsSiemens
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200pro Interface Modules IM 154 (DP, PN, EIP)

Brand Siemens·PLC I/O Systems

Available part numbers (14)

6ES7154-1AA01-0AB0, 6ES7154-2AA01-0AB0, 6ES7194-4AA00-0AA0, 6ES7194-4AC00-0AA0, 6ES7194-4AD00-0AA0, 6ES7154-3AB00-0AB0, 6ES7154-4AB10-0AB0, 6ES7194-4AK00-0AA0, 6ES7194-4AL00-0AA0, 6ES7194-4AJ00-0AA0 + 4 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7154-1AA01-0AB0Type: IM 154-1 DP | Fieldbus: PROFIBUS DP | Connection: via CM IM DP | Description: Interface module
6ES7154-2AA01-0AB0Type: IM 154-2 DP High Feature | Fieldbus: PROFIBUS DP | Connection: via CM IM DP | Description: Interface module, PROFIsafe
6ES7194-4AA00-0AA0Type: CM IM DP ECOFAST | Fieldbus: PROFIBUS DP | Connection: 2 x ECOFAST Cu | Description: Connection module
6ES7194-4AC00-0AA0Type: CM IM DP direct | Fieldbus: PROFIBUS DP | Connection: Up to 6 x M20 cable glands | Description: Connection module
6ES7194-4AD00-0AA0Type: CM IM DP M12, 7/8" | Fieldbus: PROFIBUS DP | Connection: 2 x M12 + 2 x 7/8" | Description: Connection module
6ES7154-3AB00-0AB0Type: IM 154-3 PN High Feature | Fieldbus: PROFINET IO | Connection: via CM IM PN | Description: Interface module, PROFIsafe
6ES7154-4AB10-0AB0Type: IM 154-4 PN High Feature | Fieldbus: PROFINET IO | Connection: via CM IM PN | Description: Interface module, PROFIsafe
6ES7194-4AK00-0AA0Type: CM IM PN M12, 7/8" S | Fieldbus: PROFINET IO | Connection: 2 x M12 + 2 x 7/8" | Description: Connection module for IM 154-3 PN
6ES7194-4AL00-0AA0Type: CM IM PN M12, M12-L S | Fieldbus: PROFINET IO | Connection: 2 x M12-D + 2 x M12-L | Description: Connection module for IM 154-3 PN
6ES7194-4AJ00-0AA0Type: CM IM PN M12, 7/8" | Fieldbus: PROFINET IO | Connection: 2 x M12 + 2 x 7/8" | Description: Connection module for IM 154-4 PN
6ES7194-4AF00-0AA0Type: CM IM PN 2xRJ45 | Fieldbus: PROFINET IO | Connection: 2 x RJ45 + 2 x push-pull power | Description: Connection module for IM 154-4 PN
6ES7194-4AG00-0AA0Type: CM IM PN 2xSCRJ FO | Fieldbus: PROFINET IO | Connection: 2 x SCRJ FO + 2 x push-pull power | Description: Connection module for IM 154-4 PN
ZNX:EIP200PROType: EtherNet/IP interface module | Fieldbus: EtherNet/IP | Connection: via terminal module | Description: Incl. bus terminating module
ZNX:EIP200PROCM1Type: EtherNet/IP terminal module | Fieldbus: EtherNet/IP | Connection: Fieldbus connection | Description: Connection module
