Siemens SIMATIC ET 200SP Fail-safe Modules (F-DI, F-DQ, F-AI, F-PM)

Siemens SIMATIC ET 200SP Fail-safe Modules (F-DI, F-DQ, F-AI, F-PM)

Fail-safe SIMATIC ET 200SP electronic modules for safety-related input, output, power and counting tasks up to SIL 3 / PL e via PROFIsafe.

Key features

  • Digital F-inputs, F-outputs, relay F-output and analog F-inputs in 15/20 mm ET 200SP format
  • Up to SIL 3 (IEC 61508) and PL e (ISO 13849) in mixed standard/fail-safe stations
  • F-PM-E power module for safety-related switch-off of standard output modules
  • F-TM Count for safe position and speed detection with 1 Vpp sin/cos encoders
  • F-CM AS-i Safety ST integrates AS-i Safety at Work into the ET 200SP
  • Electronic coding element (type F/H) stores the PROFIsafe address

Specifications

Brand Siemens
System SIMATIC ET 200SP
Safety level Up to SIL 3 / PL e
Protocol PROFIsafe
Supply voltage 24 V DC
Source Siemens Catalog ST 70 · 2026, p. 1626-1677

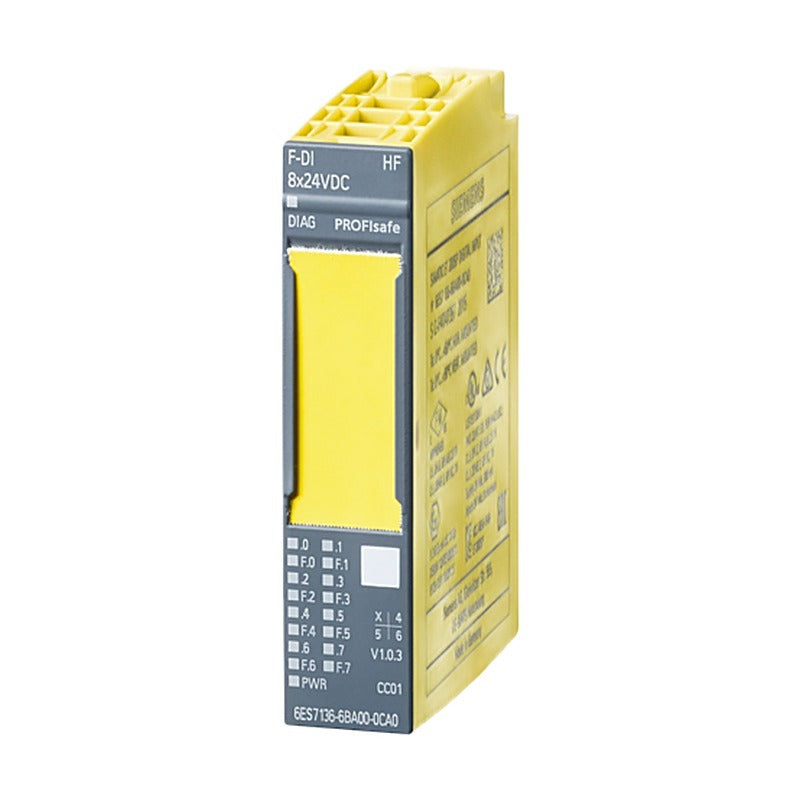

6ES7136-6BA01-0CA0 Module: F-DI 8x24VDC HF | Function: 8 fail-safe digital inputs | BaseUnit: Type A0 | Color code: CC01
6ES7136-6DB00-0CA0 Module: F-DQ 4x24VDC/2A PM HF | Function: 4 F-outputs 2 A, from TIA V12 | BaseUnit: Type A0 or B0 | Color code: -
6ES7136-6DB01-0CA0 Module: F-DQ 4x24VDC/2A PM HF | Function: 4 F-outputs 2 A, TIA V20 + HSP 470 | BaseUnit: Type A0 or B0 | Color code: -
6ES7136-6DC00-0CA0 Module: F-DQ 8x24VDC/0.5A PP HF | Function: 8 fail-safe outputs, 0.5 A | BaseUnit: Type A0 or B0 | Color code: -
6ES7136-6RA00-0BF0 Module: F-RQ 1x24VDC/24..230VAC/5A | Function: Relay output, 2 NO, 5 A | BaseUnit: Type F0 | Color code: CC42
6ES7136-6AA00-0CA1 Module: F-AI 4xI 0(4)..20mA 2/4-wire HF | Function: 4 fail-safe current inputs | BaseUnit: Type A0, A1 | Color code: CC00
6ES7136-6AB00-0CA1 Module: F-AI 4xU 0..10V HF | Function: 4 fail-safe voltage inputs | BaseUnit: Type A0, A1 | Color code: CC00
6ES7136-6PA00-0BC0 Module: F-PM-E 24VDC/8A PPM ST | Function: F-power module, 2 F-DI, 1 F-DQ | BaseUnit: Type C0 | Color code: CC52
6ES7136-6CB00-0CA0 Module: F-TM Count 1x1Vpp sin/cos HF | Function: Fail-safe counter module | BaseUnit: Type A0 | Color code: CC00
3RK7136-6SC00-0BC1 Module: F-CM AS-i Safety ST | Function: AS-i Safety communications module | BaseUnit: Type C1 (alt. C0) | Color code: -
PLC I/O ModulesSiemens
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200SP Fail-safe Modules (F-DI, F-DQ, F-AI, F-PM)

Brand Siemens·PLC I/O Modules

Available part numbers (10)

6ES7136-6BA01-0CA0, 6ES7136-6DB00-0CA0, 6ES7136-6DB01-0CA0, 6ES7136-6DC00-0CA0, 6ES7136-6RA00-0BF0, 6ES7136-6AA00-0CA1, 6ES7136-6AB00-0CA1, 6ES7136-6PA00-0BC0, 6ES7136-6CB00-0CA0, 3RK7136-6SC00-0BC1
