Siemens SIMATIC ET 200SP HA Digital I/O Modules (DI, DQ, RQ)

Siemens SIMATIC ET 200SP HA Digital I/O Modules (DI, DQ, RQ)

Digital input and output modules for SIMATIC ET 200SP HA process I/O, from 24 V DC and NAMUR to 230 V AC and relay outputs.

Key features

  • DI 16/32 x 24 V DC, DI 16 x NPN and DI 16 x NAMUR
  • DI 8 x 24...125 V DC and DI 8 x 230 V AC
  • DQ 8/16/32 x 24 V DC and DQ 8 x 24...230 V AC/2 A
  • RQ 4 x relay changeover 120 V DC / 230 V AC / 5 A
  • Channel diagnostics on most modules
  • Plugged onto H1, M1, P0, N0 or K0 terminal blocks

Specifications

Brand Siemens
System SIMATIC ET 200SP HA
Module width 22.5 mm
Source Siemens Catalog ST 70 · 2026, p. 1760

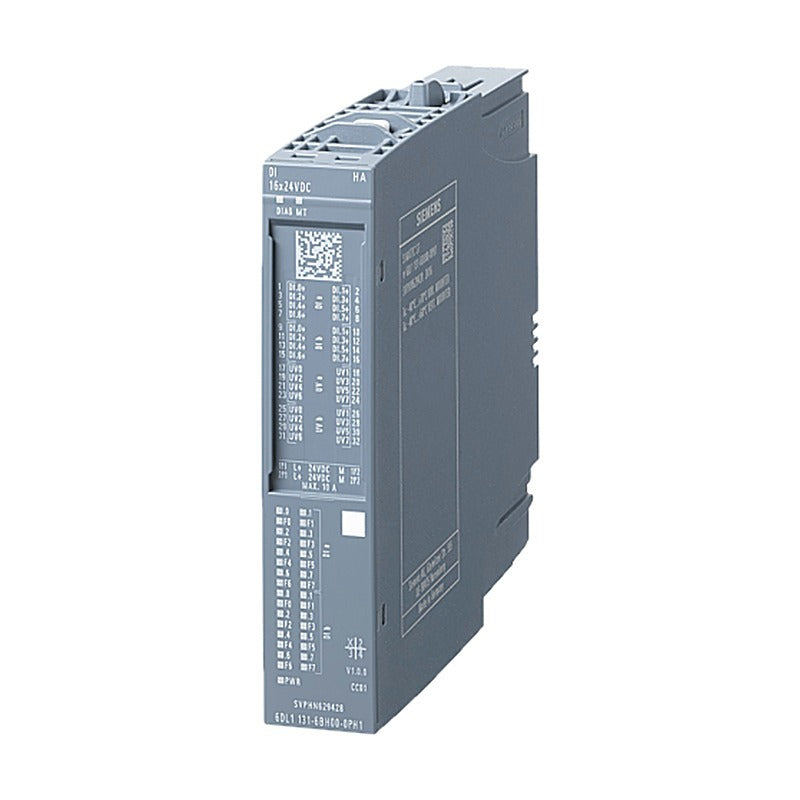

6DL1131-6BH00-0PH1 Module: DI 16x24VDC HA | Signals: 16 DI 24 V DC | Color code: CC01 | Terminal block: H1, M1
6DL1131-6BH60-0PH1 Module: DI 16x24VDC NPN HA | Signals: 16 DI 24 V DC, NPN | Color code: CC40 | Terminal block: H0, H1, P0
6DL1131-6BL00-0PH1 Module: DI 32x24VDC HA | Signals: 32 DI 24 V DC | Color code: CC00 | Terminal block: P0, H1
6DL1131-6DF00-0PK0 Module: DI 8x24...125VDC HA | Signals: 8 DI 24 ... 125 V DC | Color code: CC42 | Terminal block: K0
6DL1131-6GF00-0PK0 Module: DI 8x230VAC HA | Signals: 8 DI 230 V AC | Color code: CC42 | Terminal block: K0
6DL1131-6TH00-0PH1 Module: DI 16xNAMUR HA | Signals: 16 NAMUR DI | Color code: CC01 | Terminal block: H1, M1
6DL1132-6BF20-0PK0 Module: DQ 8x24VDC/2A HA | Signals: 8 DQ 24 V DC, 2 A | Color code: CC01 | Terminal block: K0
6DL1132-6BH00-0PH1 Module: DQ 16x24VDC/0.5A HA | Signals: 16 DQ 24 V DC, 0.5 A | Color code: CC02 | Terminal block: H1, M1
6DL1132-6BL00-0PH1 Module: DQ 32x24VDC/0.5A HA | Signals: 32 DQ 24 V DC, 0.5 A | Color code: CC00 | Terminal block: N0, H1
6DL1132-6FF00-0PK0 Module: DQ 8x24...230VAC/2A HA | Signals: 8 DQ 24 ... 230 V AC, 2 A | Color code: CC01 | Terminal block: K0
6DL1132-6HD50-0PK0 Module: RQ 4x120VDC-230VAC/5A CO HA | Signals: 4 relay CO, 5 A | Color code: CC40 | Terminal block: K0
PLC I/O ModulesSiemens
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200SP HA Digital I/O Modules (DI, DQ, RQ)

Brand Siemens·PLC I/O Modules

Available part numbers (11)

6DL1131-6BH00-0PH1, 6DL1131-6BH60-0PH1, 6DL1131-6BL00-0PH1, 6DL1131-6DF00-0PK0, 6DL1131-6GF00-0PK0, 6DL1131-6TH00-0PH1, 6DL1132-6BF20-0PK0, 6DL1132-6BH00-0PH1, 6DL1132-6BL00-0PH1, 6DL1132-6FF00-0PK0 + 1 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6DL1131-6BH00-0PH1Module: DI 16x24VDC HA | Signals: 16 DI 24 V DC | Color code: CC01 | Terminal block: H1, M1
6DL1131-6BH60-0PH1Module: DI 16x24VDC NPN HA | Signals: 16 DI 24 V DC, NPN | Color code: CC40 | Terminal block: H0, H1, P0
6DL1131-6BL00-0PH1Module: DI 32x24VDC HA | Signals: 32 DI 24 V DC | Color code: CC00 | Terminal block: P0, H1
6DL1131-6DF00-0PK0Module: DI 8x24...125VDC HA | Signals: 8 DI 24 ... 125 V DC | Color code: CC42 | Terminal block: K0
6DL1131-6GF00-0PK0Module: DI 8x230VAC HA | Signals: 8 DI 230 V AC | Color code: CC42 | Terminal block: K0
6DL1131-6TH00-0PH1Module: DI 16xNAMUR HA | Signals: 16 NAMUR DI | Color code: CC01 | Terminal block: H1, M1
6DL1132-6BF20-0PK0Module: DQ 8x24VDC/2A HA | Signals: 8 DQ 24 V DC, 2 A | Color code: CC01 | Terminal block: K0
6DL1132-6BH00-0PH1Module: DQ 16x24VDC/0.5A HA | Signals: 16 DQ 24 V DC, 0.5 A | Color code: CC02 | Terminal block: H1, M1
6DL1132-6BL00-0PH1Module: DQ 32x24VDC/0.5A HA | Signals: 32 DQ 24 V DC, 0.5 A | Color code: CC00 | Terminal block: N0, H1
6DL1132-6FF00-0PK0Module: DQ 8x24...230VAC/2A HA | Signals: 8 DQ 24 ... 230 V AC, 2 A | Color code: CC01 | Terminal block: K0
6DL1132-6HD50-0PK0Module: RQ 4x120VDC-230VAC/5A CO HA | Signals: 4 relay CO, 5 A | Color code: CC40 | Terminal block: K0
