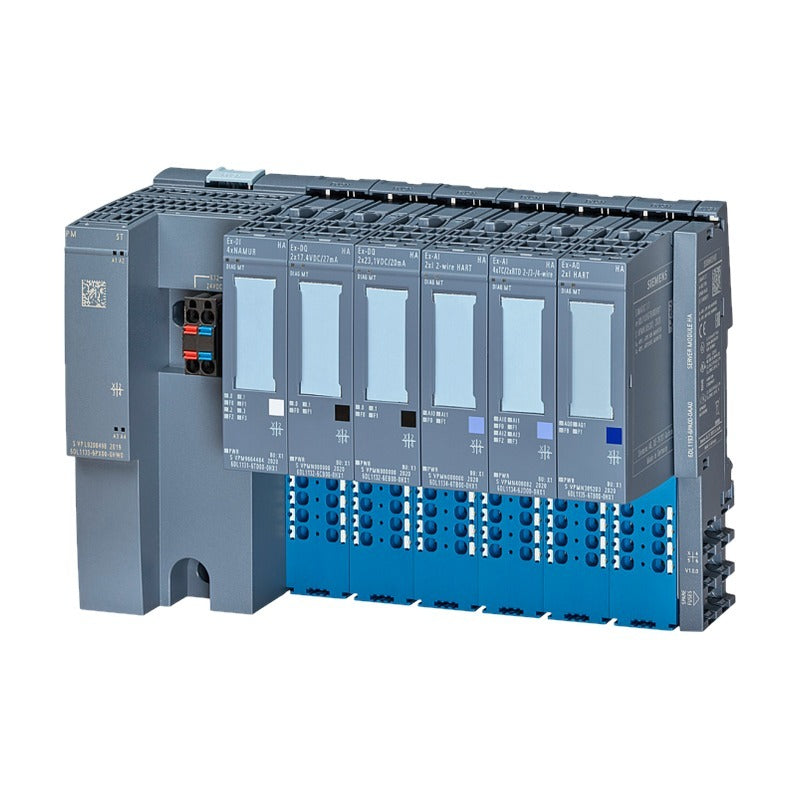

• Siemens SIMATIC ET 200SP HA Ex-i I/O Modules (Intrinsically Safe)
1 1

Siemens SIMATIC ET 200SP HA Ex-i I/O Modules (Intrinsically Safe)

Siemens SIMATIC ET 200SP HA Ex-i I/O Modules (Intrinsically Safe)

Intrinsically safe Ex-i digital and analog modules with Ex power module and BaseUnits for SIMATIC ET 200SP and ET 200SP HA stations.

Key features

  • Ex-i digital NAMUR inputs and intrinsically safe digital outputs
  • Ex-i HART analog input and output modules, 16-bit resolution
  • Thermocouple and RTD Ex-i analog input module
  • Ex-PM E power module 24 V / 0.8 A for the Ex potential group
  • Channel diagnostics on all I/O modules
  • BaseUnit type X1 for I/O modules and W0 for the Ex power module

Specifications

Brand Siemens
System ET 200SP / ET 200SP HA
Protection type Intrinsic safety Ex i
Diagnostics Channel diagnostics
Source Siemens Catalog ST 70 · 2026, p. 1678-1790
6DL1131-6TD00-0HX1 Module: Ex-DI 4xNAMUR | Signal: 4 NAMUR digital inputs | BaseUnit: Type X1
6DL1132-6EB00-0HX1 Module: Ex-DQ 2x23.1VDC/20mA | Signal: 2 Ex-i digital outputs | BaseUnit: Type X1
6DL1132-6CB00-0HX1 Module: Ex-DQ 2x17.4VDC/27mA | Signal: 2 Ex-i digital outputs | BaseUnit: Type X1
6DL1134-6TB00-0HX1 Module: Ex-AI 2xI 2-wire HART | Signal: 2 AI, 16 bit, +/-0.3 % | BaseUnit: Type X1
6DL1134-6JD00-0HX1 Module: Ex-AI 4xTC/2xRTD 2/3/4-wire | Signal: 4 TC / 2 RTD, 16 bit, +/-0.05 % | BaseUnit: Type X1
6DL1135-6TB00-0HX1 Module: Ex-AQ 2xI HART HF | Signal: 2 AQ, 16 bit, +/-0.3 % | BaseUnit: Type X1
6DL1133-6PX00-0HW0 Module: Ex-PM E power module | Signal: 24 V / 0.8 A, 50 x 117 mm | BaseUnit: Type W0
6DL1193-6BP00-0BX1 Module: BaseUnit type X1 | Signal: For Ex I/O, push-in, 20 x 117 mm | BaseUnit: -
6DL1193-6BP00-0DW0 Module: BaseUnit type W0 | Signal: For Ex-PM E, 50 x 117 mm | BaseUnit: -
PLC I/O ModulesSiemens
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200SP HA Ex-i I/O Modules (Intrinsically Safe)

Brand Siemens·PLC I/O Modules

Available part numbers (9)

6DL1131-6TD00-0HX1, 6DL1132-6EB00-0HX1, 6DL1132-6CB00-0HX1, 6DL1134-6TB00-0HX1, 6DL1134-6JD00-0HX1, 6DL1135-6TB00-0HX1, 6DL1133-6PX00-0HW0, 6DL1193-6BP00-0BX1, 6DL1193-6BP00-0DW0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6DL1131-6TD00-0HX1Module: Ex-DI 4xNAMUR | Signal: 4 NAMUR digital inputs | BaseUnit: Type X1
6DL1132-6EB00-0HX1Module: Ex-DQ 2x23.1VDC/20mA | Signal: 2 Ex-i digital outputs | BaseUnit: Type X1
6DL1132-6CB00-0HX1Module: Ex-DQ 2x17.4VDC/27mA | Signal: 2 Ex-i digital outputs | BaseUnit: Type X1
6DL1134-6TB00-0HX1Module: Ex-AI 2xI 2-wire HART | Signal: 2 AI, 16 bit, +/-0.3 % | BaseUnit: Type X1
6DL1134-6JD00-0HX1Module: Ex-AI 4xTC/2xRTD 2/3/4-wire | Signal: 4 TC / 2 RTD, 16 bit, +/-0.05 % | BaseUnit: Type X1
6DL1135-6TB00-0HX1Module: Ex-AQ 2xI HART HF | Signal: 2 AQ, 16 bit, +/-0.3 % | BaseUnit: Type X1
6DL1133-6PX00-0HW0Module: Ex-PM E power module | Signal: 24 V / 0.8 A, 50 x 117 mm | BaseUnit: Type W0
6DL1193-6BP00-0BX1Module: BaseUnit type X1 | Signal: For Ex I/O, push-in, 20 x 117 mm | BaseUnit: -
6DL1193-6BP00-0DW0Module: BaseUnit type W0 | Signal: For Ex-PM E, 50 x 117 mm | BaseUnit: -

Need a different model, or a part not listed here? Send us your parts list →
