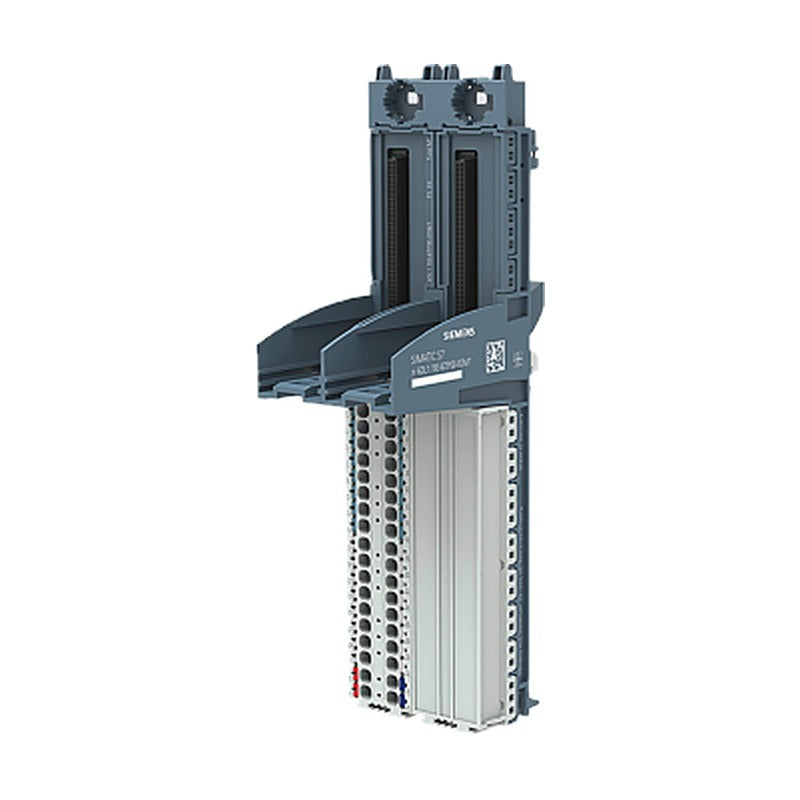

Siemens SIMATIC ET 200SP HA Terminal Blocks (Push-in, D-sub, ISOL)

Siemens SIMATIC ET 200SP HA Terminal Blocks (Push-in, D-sub, ISOL)

Terminal blocks for SIMATIC ET 200SP HA I/O modules with push-in or D-sub connection, including versions for I/O redundancy and insulated signals.

Key features

  • 24 V DC push-in terminal blocks H1, M1, F1, P0 and N0
  • Light gray starts and dark gray forwards a potential group
  • D-sub 37-pin terminal blocks H0, M0, F0, S0 and R0
  • Insulated terminal blocks K0 and L0 for 24 V DC / 125 V DC / 230 V AC
  • M1/M0/F1/F0/R0 for redundant configurations
  • Temperature compensation on H1/M1 versions

Specifications

Brand Siemens
System SIMATIC ET 200SP HA
Source Siemens Catalog ST 70 · 2026, p. 1804-1807
6DL1193-6TP00-0DH1 Type: H1, push-in | Version: Light gray | Description: 32 terminals, 22.5 mm, temp. comp.
6DL1193-6TP00-0BH1 Type: H1, push-in | Version: Dark gray | Description: 32 terminals, 22.5 mm, temp. comp.
6DL1193-6TP00-0DM1 Type: M1, push-in, redundant | Version: Light gray | Description: 32 terminals, 45 mm, temp. comp.
6DL1193-6TP00-0BM1 Type: M1, push-in, redundant | Version: Dark gray | Description: 32 terminals, 45 mm, temp. comp.
6DL1193-6TP00-0DF1 Type: F1, push-in, F-AI IO-RED | Version: - | Description: 32 terminals, 45 mm, no power bus
6DL1193-6TP00-0DP0 Type: P0, push-in | Version: Light gray | Description: 32 + 32 encoder supply, for DI 32
6DL1193-6TP00-0BP0 Type: P0, push-in | Version: Dark gray | Description: 32 + 32 encoder supply, for DI 32
6DL1193-6TP00-0DN0 Type: N0, push-in | Version: Light gray | Description: 32 + 32 ground terminals, 45 mm
6DL1193-6TP00-0BN0 Type: N0, push-in | Version: Dark gray | Description: 32 + 32 ground terminals, 45 mm
6DL1193-6TC00-0DH0 Type: H0, D-sub | Version: - | Description: 37-pin D-sub, 22.5 mm, no power bus
6DL1193-6TC00-0DM0 Type: M0, D-sub, IO-RED | Version: - | Description: 37-pin D-sub, 2 slots, 45 mm
6DL1193-6TC00-0DF0 Type: F0, D-sub, F-AI IO-RED | Version: - | Description: 37-pin D-sub, 2 slots, 45 mm
6DL1193-6TC00-0DS0 Type: S0, D-sub, ISOL | Version: - | Description: 37-pin D-sub, 22.5 mm
6DL1193-6TC00-0DR0 Type: R0, D-sub, ISOL, IO-RED | Version: - | Description: 37-pin D-sub, 2 slots, 45 mm
6DL1193-6TP00-0DK0 Type: K0, insulated | Version: Light gray | Description: 16 push-in terminals, 22.5 mm
6DL1193-6TP00-0BK0 Type: K0, insulated | Version: Dark gray | Description: 16 push-in terminals, 22.5 mm
6DL1193-6TP00-0DL0 Type: L0, insulated | Version: Light gray | Description: 16 push-in terminals, 45 mm
PLC AccessoriesSiemens
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200SP HA Terminal Blocks (Push-in, D-sub, ISOL)

Brand Siemens·PLC Accessories

Available part numbers (17)

6DL1193-6TP00-0DH1, 6DL1193-6TP00-0BH1, 6DL1193-6TP00-0DM1, 6DL1193-6TP00-0BM1, 6DL1193-6TP00-0DF1, 6DL1193-6TP00-0DP0, 6DL1193-6TP00-0BP0, 6DL1193-6TP00-0DN0, 6DL1193-6TP00-0BN0, 6DL1193-6TC00-0DH0 + 7 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6DL1193-6TP00-0DH1Type: H1, push-in | Version: Light gray | Description: 32 terminals, 22.5 mm, temp. comp.
6DL1193-6TP00-0BH1Type: H1, push-in | Version: Dark gray | Description: 32 terminals, 22.5 mm, temp. comp.
6DL1193-6TP00-0DM1Type: M1, push-in, redundant | Version: Light gray | Description: 32 terminals, 45 mm, temp. comp.
6DL1193-6TP00-0BM1Type: M1, push-in, redundant | Version: Dark gray | Description: 32 terminals, 45 mm, temp. comp.
6DL1193-6TP00-0DF1Type: F1, push-in, F-AI IO-RED | Version: - | Description: 32 terminals, 45 mm, no power bus
6DL1193-6TP00-0DP0Type: P0, push-in | Version: Light gray | Description: 32 + 32 encoder supply, for DI 32
6DL1193-6TP00-0BP0Type: P0, push-in | Version: Dark gray | Description: 32 + 32 encoder supply, for DI 32
6DL1193-6TP00-0DN0Type: N0, push-in | Version: Light gray | Description: 32 + 32 ground terminals, 45 mm
6DL1193-6TP00-0BN0Type: N0, push-in | Version: Dark gray | Description: 32 + 32 ground terminals, 45 mm
6DL1193-6TC00-0DH0Type: H0, D-sub | Version: - | Description: 37-pin D-sub, 22.5 mm, no power bus
6DL1193-6TC00-0DM0Type: M0, D-sub, IO-RED | Version: - | Description: 37-pin D-sub, 2 slots, 45 mm
6DL1193-6TC00-0DF0Type: F0, D-sub, F-AI IO-RED | Version: - | Description: 37-pin D-sub, 2 slots, 45 mm
6DL1193-6TC00-0DS0Type: S0, D-sub, ISOL | Version: - | Description: 37-pin D-sub, 22.5 mm
6DL1193-6TC00-0DR0Type: R0, D-sub, ISOL, IO-RED | Version: - | Description: 37-pin D-sub, 2 slots, 45 mm
6DL1193-6TP00-0DK0Type: K0, insulated | Version: Light gray | Description: 16 push-in terminals, 22.5 mm
6DL1193-6TP00-0BK0Type: K0, insulated | Version: Dark gray | Description: 16 push-in terminals, 22.5 mm
6DL1193-6TP00-0DL0Type: L0, insulated | Version: Light gray | Description: 16 push-in terminals, 45 mm
