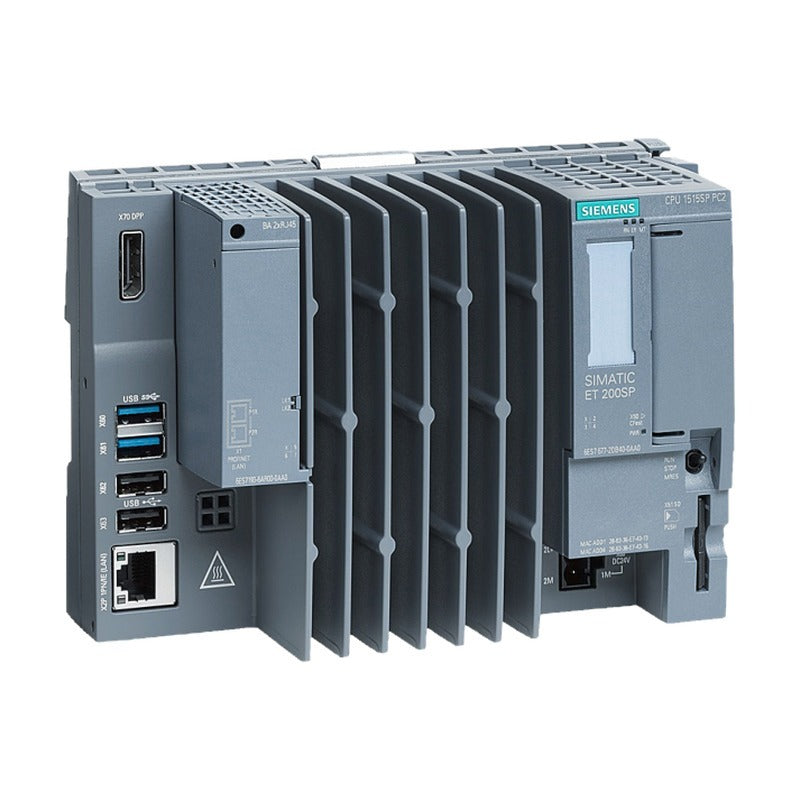

Siemens SIMATIC ET 200SP Open Controller 1515SP PC2 (Std, F, T, TF)

Siemens SIMATIC ET 200SP Open Controller 1515SP PC2 (Std, F, T, TF)

PC-based ET 200SP Open Controllers combining an S7-1500 Software Controller, optional WinCC Runtime Advanced and an industrial operating system in one compact device.

Key features

  • Turnkey all-in-one solution with preinstalled S7-1500 Software Controller (standard, F, T or TF)
  • Optional preinstalled WinCC Runtime Advanced (128, 512 or 2048 PowerTags)
  • SIMATIC Hypervisor separates Windows/Linux from control functions; quad-core processor
  • Central expansion with ET 200SP modules (station width up to 1 m or up to 64 modules)
  • Interfaces: DisplayPort, 2x USB 3.0, 2x USB 2.0, PROFINET via BusAdapter, GB Ethernet
  • Swappable 128 GB CFast card for OS, runtime and project data

Specifications

Brand Siemens
Product line SIMATIC ET 200SP Open Controller
Product type Open Controller
Storage 128 GB CFast card
Interfaces X1 PN-IO via BusAdapter, X2 GB Ethernet
Languages en, de, fr, es, it, zh
Source Siemens Catalog ST 70 · 2026, p. 1190-1211
6ES7677-2DB43-0GB1 Type: CPU 1515SP PC2 | OS: Industrial OS | Software Controller: CPU 1505SP | HMI runtime: None | RAM: 8 GB
6ES7677-2DB42-0GB1 Type: CPU 1515SP PC2 | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP | HMI runtime: None | RAM: 48 GB (as printed)
6ES7677-2DB42-0GK0 Type: CPU 1515SP PC2 + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP | HMI runtime: WinCC RT Adv. 128PT | RAM: 8 GB
6ES7677-2DB42-0GL0 Type: CPU 1515SP PC2 + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP | HMI runtime: WinCC RT Adv. 512PT | RAM: 8 GB
6ES7677-2DB42-0GM0 Type: CPU 1515SP PC2 + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP | HMI runtime: WinCC RT Adv. 2048PT | RAM: 8 GB
6ES7677-2SB43-0GB1 Type: CPU 1515SP PC2 F | OS: Industrial OS | Software Controller: CPU 1505SP F | HMI runtime: None | RAM: 8 GB
6ES7677-2SB42-0GB1 Type: CPU 1515SP PC2 F | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP F | HMI runtime: None | RAM: 8 GB
6ES7677-2SB42-0GK0 Type: CPU 1515SP PC2 F + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP F | HMI runtime: WinCC RT Adv. 128PT | RAM: 8 GB
6ES7677-2SB42-0GL0 Type: CPU 1515SP PC2 F + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP F | HMI runtime: WinCC RT Adv. 512PT | RAM: 8 GB
6ES7677-2SB42-0GM0 Type: CPU 1515SP PC2 F + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP F | HMI runtime: WinCC RT Adv. 2048PT | RAM: 8 GB
6ES7677-2VB42-0GB1 Type: CPU 1515SP PC2 T | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP T | HMI runtime: None | RAM: 8 GB
6ES7677-2VB42-0GK0 Type: CPU 1515SP PC2 T + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP T | HMI runtime: WinCC RT Adv. 128PT | RAM: 8 GB
6ES7677-2VB42-0GL0 Type: CPU 1515SP PC2 T + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP T | HMI runtime: WinCC RT Adv. 512PT | RAM: 8 GB
6ES7677-2VB42-0GM0 Type: CPU 1515SP PC2 T + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP T | HMI runtime: WinCC RT Adv. 2048PT | RAM: 8 GB
6ES7677-2WB42-0GB1 Type: CPU 1515SP PC2 TF | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP TF | HMI runtime: None | RAM: 8 GB
6ES7677-2WB42-0GK0 Type: CPU 1515SP PC2 TF + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP TF | HMI runtime: WinCC RT Adv. 128PT | RAM: 8 GB
6ES7677-2WB42-0GL0 Type: CPU 1515SP PC2 TF + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP TF | HMI runtime: WinCC RT Adv. 512PT | RAM: 8 GB
6ES7677-2WB42-0GM0 Type: CPU 1515SP PC2 TF + HMI | OS: Windows 10 IoT Enterprise | Software Controller: CPU 1505SP TF | HMI runtime: WinCC RT Adv. 2048PT | RAM: 8 GB
6ES7678-2AD01-0AA0 Type: OS upgrade for CPU 1515SP PC2 | OS: Win 10 IoT Ent. 2021 LTSC 64-bit | Software Controller: n/a | HMI runtime: n/a | RAM: n/a
6ES7678-2AS01-0AA0 Type: OS upgrade for CPU 1515SP PC2 F | OS: Win 10 IoT Ent. 2021 LTSC 64-bit | Software Controller: n/a | HMI runtime: n/a | RAM: n/a
6ES7678-2AV01-0AA0 Type: OS upgrade for CPU 1515SP PC2 T | OS: Win 10 IoT Ent. 2021 LTSC 64-bit | Software Controller: License stick CPU 1505SP T V3 | HMI runtime: n/a | RAM: n/a
6ES7678-2AW01-0AA0 Type: OS upgrade for CPU 1515SP PC2 TF | OS: Win 10 IoT Ent. 2021 LTSC 64-bit | Software Controller: License stick CPU 1505SP TF V3 | HMI runtime: n/a | RAM: n/a
