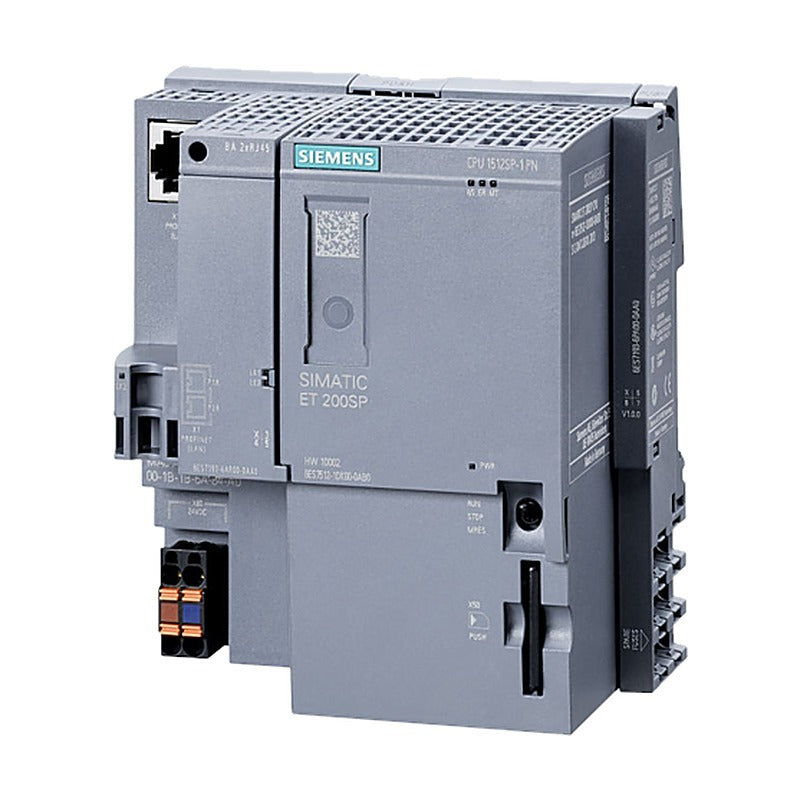

Siemens SIMATIC ET 200SP Standard CPUs (1510SP-1, 1512SP-1, 1514SP-2)

Siemens SIMATIC ET 200SP Standard CPUs (1510SP-1, 1512SP-1, 1514SP-2)

Compact SIMATIC ET 200SP distributed controllers based on S7-1500 CPU technology for high-performance control solutions directly in the I/O station.

Key features

  • Based on S7-1500 CPU 1511/1513/1515 technology
  • PROFINET IO IRT interface with integrated switch; PROFINET I-Device and Shared I-Device
  • Optional PROFIBUS DP master/slave via CM DP module 6ES7545-5DA00-0AB0
  • Integrated Motion Control for speed-controlled, positioning and synchronous axes
  • OPC UA server and client as runtime option; integrated web server
  • SIMATIC Memory Card required; BusAdapter ordered separately

Specifications

Brand Siemens
Product line SIMATIC ET 200SP
Product type Standard CPU
Memory card SIMATIC Memory Card required
BusAdapter Not included, order separately
Programming STEP 7 (TIA Portal)
Source Siemens Catalog ST 70 · 2026, p. 1110-1124
6ES7510-1DK03-0AB0 Type: CPU 1510SP-1 PN | Work memory: 200 KB program / 1 MB data | Interfaces: PN IRT, 3-port switch | Bit performance: 25 ns
6ES7512-1DM03-0AB0 Type: CPU 1512SP-1 PN | Work memory: 400 KB program / 2 MB data | Interfaces: PN IRT, 3-port switch | Bit performance: 25 ns
6ES7514-2DN03-0AB0 Type: CPU 1514SP-2 PN | Work memory: 600 KB program / 3.5 MB data | Interfaces: PN IRT 2-port + PN RT | Bit performance: 6 ns
PLC CPUsSiemens
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC ET 200SP Standard CPUs (1510SP-1, 1512SP-1, 1514SP-2)

Brand Siemens·PLC CPUs

Available part numbers (3)

6ES7510-1DK03-0AB0, 6ES7512-1DM03-0AB0, 6ES7514-2DN03-0AB0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7510-1DK03-0AB0Type: CPU 1510SP-1 PN | Work memory: 200 KB program / 1 MB data | Interfaces: PN IRT, 3-port switch | Bit performance: 25 ns
6ES7512-1DM03-0AB0Type: CPU 1512SP-1 PN | Work memory: 400 KB program / 2 MB data | Interfaces: PN IRT, 3-port switch | Bit performance: 25 ns
6ES7514-2DN03-0AB0Type: CPU 1514SP-2 PN | Work memory: 600 KB program / 3.5 MB data | Interfaces: PN IRT 2-port + PN RT | Bit performance: 6 ns
