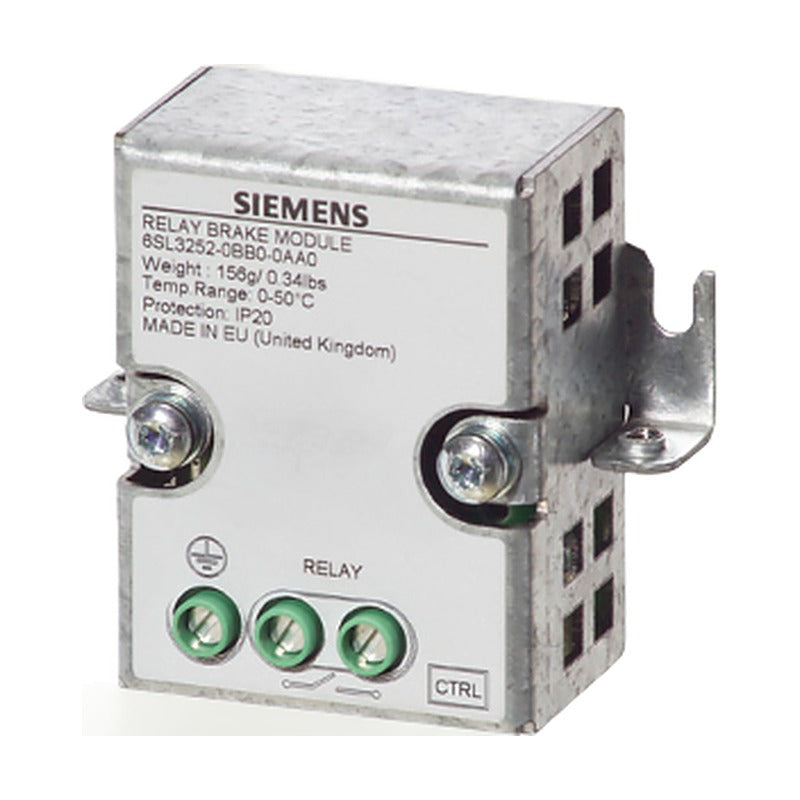

Siemens SINAMICS G120 Brake Relay & Safe Brake Relay

Siemens SINAMICS G120 Brake Relay & Safe Brake Relay

Brake Relay and Safe Brake Relay that let SINAMICS G120 Power Modules control a motor holding brake directly.

Key features

  • Brake Relay switches the brake solenoid via an NO contact (24 V DC or 230/400 V AC via rectifier)
  • Safe Brake Relay controls a 24 V DC brake directly for Safe Brake Control
  • Includes cable harnesses for connection to the CTRL socket of the Power Module
  • Mounts on the shield connection plate near the Power Module power terminals

Specifications

Brand Siemens
Product line SINAMICS G120 standard converters
Dimensions (W x H x D) 68-69 x 63 x 33 mm
Weight approx. 0.17 kg
Conductor cross-section max. 2.5 mm2
Catalog section Supplementary system components
Source Siemens Catalog D 31.1 · 2024/10-2025, p. 261-262
6SL3252-0BB00-0AA0 Type: Brake Relay | Rating: NO contact 250 V AC/16 A, 30 V DC/12 A | Function: Standard
6SL3252-0BB01-0AA0 Type: Safe Brake Relay | Rating: 24 V DC brake, max. 2.5 A | Function: Safe brake control (SBC)
Inverter Options & AccessoriesSiemens
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120 Brake Relay & Safe Brake Relay

Brand Siemens·Inverter Options & Accessories

Available part numbers (2)

6SL3252-0BB00-0AA0, 6SL3252-0BB01-0AA0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SL3252-0BB00-0AA0Type: Brake Relay | Rating: NO contact 250 V AC/16 A, 30 V DC/12 A | Function: Standard
6SL3252-0BB01-0AA0Type: Safe Brake Relay | Rating: 24 V DC brake, max. 2.5 A | Function: Safe brake control (SBC)
