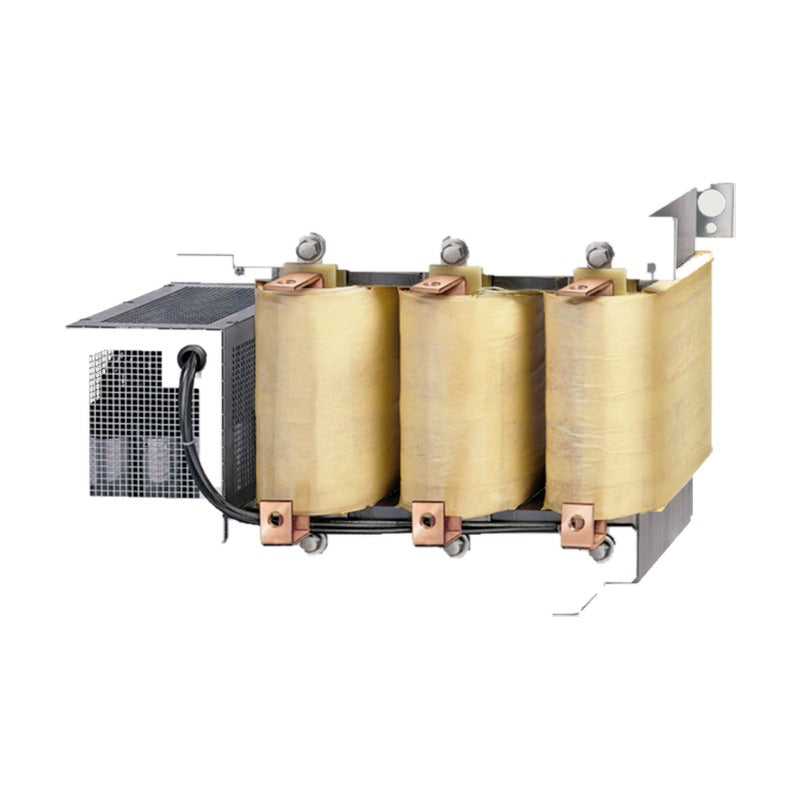

Siemens SINAMICS G120 Sine-Wave Filters (PM240-2, PM250, 400 V)

Sine-wave filters for SINAMICS G120 Power Modules at 380-480 V that deliver an almost sinusoidal motor voltage.

Key features

Limit voltage rate of rise and peak voltage at the motor terminals
Near-sinusoidal motor voltage and current, reduced motor noise and losses
Allow long motor cables
For PM240-2 FSA-FSG and PM250 FSC-FSF, 380-480 V 3 AC

Specifications

Brand	Siemens
Product line	SINAMICS G120 standard converters
Component	Sine-wave filter
Line voltage	380-480 V 3 AC
Catalog section	Load-side power components
Function	Near-sinusoidal motor voltage
Source	Siemens Catalog D 31.1 · 2024/10-2025, p. 245

6SL3202-0AE20-3SA0		Module: PM240-2 \| Rated power (kW): 0.55-1.1 \| Frame size: FSA
6SL3202-0AE20-6SA0		Module: PM240-2 \| Rated power (kW): 1.5-2.2 \| Frame size: FSA
6SL3202-0AE21-1SA0		Module: PM240-2 \| Rated power (kW): 3 \| Frame size: FSA
6SL3202-0AE21-4SA0		Module: PM240-2 \| Rated power (kW): 4-5.5 \| Frame size: FSB
6SL3202-0AE22-0SA0		Module: PM240-2 / PM250 \| Rated power (kW): 400V 7.5; PM250 7.5 \| Frame size: FSB/FSC
6SL3202-0AE23-3SA0		Module: PM240-2 / PM250 \| Rated power (kW): 400V 11-15; PM250 11-15 \| Frame size: FSC
6SL3202-0AE24-6SA0		Module: PM240-2 / PM250 \| Rated power (kW): 400V 18.5-22; PM250 18.5-22 \| Frame size: FSD
6SL3202-0AE26-2SA0		Module: PM240-2 / PM250 \| Rated power (kW): 400V 30; PM250 30 \| Frame size: FSD
6SL3202-0AE28-8SA0		Module: PM240-2 / PM250 \| Rated power (kW): 400V 37-45; PM250 37-45 \| Frame size: FSD/FSE
6SL3202-0AE31-5SA0		Module: PM240-2 / PM250 \| Rated power (kW): 400V 55-75; PM250 55-75 \| Frame size: FSE/FSF
6SL3202-0AE31-8SA0		Module: PM240-2 / PM250 \| Rated power (kW): 400V 90; PM250 90 \| Frame size: FSF
6SL3000-2CE32-3AA0		Module: PM240-2 \| Rated power (kW): 110-132 \| Frame size: FSF
6SL3000-2CE32-8AA0		Module: PM240-2 \| Rated power (kW): 160 \| Frame size: FSG
6SL3000-2CE33-3AA0		Module: PM240-2 \| Rated power (kW): 200 \| Frame size: FSG
6SL3000-2CE34-1AA0		Module: PM240-2 \| Rated power (kW): 250 \| Frame size: FSG

Inverter Options & AccessoriesSiemens

15 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS G120 Sine-Wave Filters (PM240-2, PM250, 400 V)

Brand Siemens·Inverter Options & Accessories

Available part numbers (15)

6SL3202-0AE20-3SA0, 6SL3202-0AE20-6SA0, 6SL3202-0AE21-1SA0, 6SL3202-0AE21-4SA0, 6SL3202-0AE22-0SA0, 6SL3202-0AE23-3SA0, 6SL3202-0AE24-6SA0, 6SL3202-0AE26-2SA0, 6SL3202-0AE28-8SA0, 6SL3202-0AE31-5SA0 + 5 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
