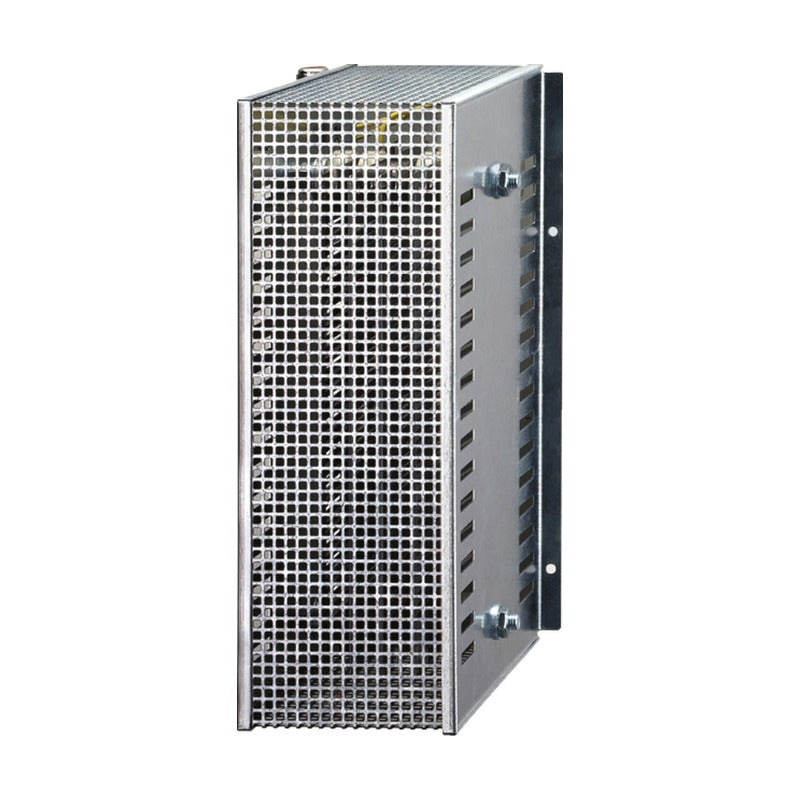

Siemens SINAMICS S120 Braking Resistors for Booksize Format

Siemens SINAMICS S120 Braking Resistors for Booksize Format

Braking resistors for SINAMICS S120 booksize Braking Modules and the integrated braking chopper of 20 kW and 40 kW Basic Line Modules.

Key features

  • Dissipate excess DC link energy as heat
  • Assigned to Braking Module or Basic Line Module
  • Power ratings from 0.3 kW to 12.5 kW continuous
  • Peak power up to 100 kW

Specifications

Brand Siemens
Product line SINAMICS S120
DC link voltage 510 ... 720 V DC
Component Braking resistor
Source Siemens Catalog D 21.4 · 2026, p. 182-183
6SN1113-1AA00-0DA0 Power PDB/Pmax: 0.3 kW / 25 kW | Suitable for: Braking Module 6SL3100-1AE31-0AB1
6SL3100-1BE31-0AA0 Power PDB/Pmax: 1.5 kW / 100 kW | Suitable for: Braking Module 6SL3100-1AE31-0AB1
6SE7023-2ES87-2DC0 Power PDB/Pmax: 5 kW / 30 kW | Suitable for: Basic Line Module 20 kW
6SE7028-0ES87-2DC0 Power PDB/Pmax: 12.5 kW / 75 kW | Suitable for: Basic Line Module 40 kW
Inverter Options & AccessoriesSiemens
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SINAMICS S120 Braking Resistors for Booksize Format

Brand Siemens·Inverter Options & Accessories

Available part numbers (4)

6SN1113-1AA00-0DA0, 6SL3100-1BE31-0AA0, 6SE7023-2ES87-2DC0, 6SE7028-0ES87-2DC0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SN1113-1AA00-0DA0Power PDB/Pmax: 0.3 kW / 25 kW | Suitable for: Braking Module 6SL3100-1AE31-0AB1
6SL3100-1BE31-0AA0Power PDB/Pmax: 1.5 kW / 100 kW | Suitable for: Braking Module 6SL3100-1AE31-0AB1
6SE7023-2ES87-2DC0Power PDB/Pmax: 5 kW / 30 kW | Suitable for: Basic Line Module 20 kW
6SE7028-0ES87-2DC0Power PDB/Pmax: 12.5 kW / 75 kW | Suitable for: Basic Line Module 40 kW
