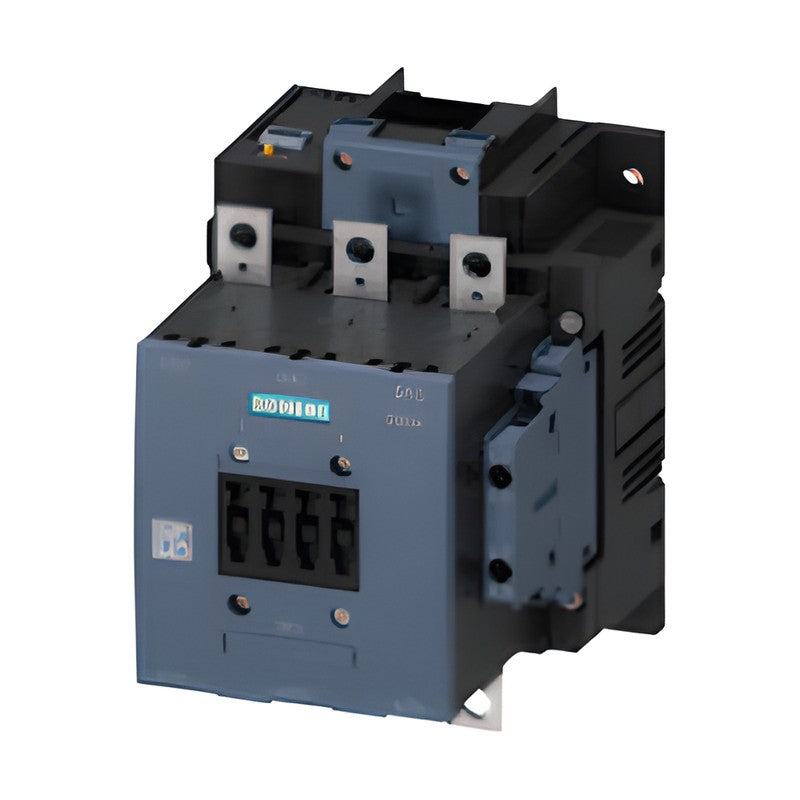

Siemens SIRIUS 3RT10 Contactors S6-S12, Solid-State Drive (55-250 kW)

Siemens SIRIUS 3RT10 Contactors S6-S12, Solid-State Drive (55-250 kW)

SIRIUS 3RT10 contactors in sizes S6 to S12 with solid-state AC/DC operating mechanism and 24 V DC digital input for PLC control, optionally with remaining lifetime indicator.

Key features

  • 3RT10..-.N: solid-state operating mechanism with 24 V DC digital input
  • 3RT10..-.P: additionally with remaining lifetime indicator (RLT)
  • Varistor integrated in the electronics at factory
  • Ratings 115 to 500 A at 500 V (55 to 250 kW at 400 V)
  • Lateral auxiliary contacts 2 NO + 2 NC (.N) or 1 NO + 1 NC (.P)

Specifications

Brand line SIRIUS
Series 3RT10 power contactor
Poles 3 (main contacts)
Main conductors Busbar connections (parts kit incl.)
Fixing Screw fixing
Utilization AC-3 / AC-3e, IE3/IE4 ready
Manufacturer Siemens
Product category Magnetic Contactors
Catalog chapter Contactors for switching motors
Catalog section SIRIUS 3RT contactors, 3-pole up to 250 kW
Source Siemens Catalog IC 10 · 2026, p. 191, 193
3RT1054-6NF36 Type: 3RT1054 (S6) | Rating: AC-3 115 A/55 kW; AC-1 160 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1054-2NF36 Type: 3RT1054 (S6) | Rating: AC-3 115 A/55 kW; AC-1 160 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1054-6NP36 Type: 3RT1054 (S6) | Rating: AC-3 115 A/55 kW; AC-1 160 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1054-2NP36 Type: 3RT1054 (S6) | Rating: AC-3 115 A/55 kW; AC-1 160 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1055-6NF36 Type: 3RT1055 (S6) | Rating: AC-3 150 A/75 kW; AC-1 185 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1055-2NF36 Type: 3RT1055 (S6) | Rating: AC-3 150 A/75 kW; AC-1 185 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1055-6NP36 Type: 3RT1055 (S6) | Rating: AC-3 150 A/75 kW; AC-1 185 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1055-2NP36 Type: 3RT1055 (S6) | Rating: AC-3 150 A/75 kW; AC-1 185 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1056-6NF36 Type: 3RT1056 (S6) | Rating: AC-3 185 A/90 kW; AC-1 215 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1056-2NF36 Type: 3RT1056 (S6) | Rating: AC-3 185 A/90 kW; AC-1 215 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1056-6NP36 Type: 3RT1056 (S6) | Rating: AC-3 185 A/90 kW; AC-1 215 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1056-2NP36 Type: 3RT1056 (S6) | Rating: AC-3 185 A/90 kW; AC-1 215 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1064-6NF36 Type: 3RT1064 (S10) | Rating: AC-3 225 A/110 kW; AC-1 275 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1064-2NF36 Type: 3RT1064 (S10) | Rating: AC-3 225 A/110 kW; AC-1 275 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1064-6NP36 Type: 3RT1064 (S10) | Rating: AC-3 225 A/110 kW; AC-1 275 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1064-2NP36 Type: 3RT1064 (S10) | Rating: AC-3 225 A/110 kW; AC-1 275 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1065-6NF36 Type: 3RT1065 (S10) | Rating: AC-3 265 A/132 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1065-2NF36 Type: 3RT1065 (S10) | Rating: AC-3 265 A/132 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1065-6NP36 Type: 3RT1065 (S10) | Rating: AC-3 265 A/132 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1065-2NP36 Type: 3RT1065 (S10) | Rating: AC-3 265 A/132 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1066-6NF36 Type: 3RT1066 (S10) | Rating: AC-3 300 A/160 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1066-2NF36 Type: 3RT1066 (S10) | Rating: AC-3 300 A/160 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1066-6NP36 Type: 3RT1066 (S10) | Rating: AC-3 300 A/160 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1066-2NP36 Type: 3RT1066 (S10) | Rating: AC-3 300 A/160 kW; AC-1 330 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1075-6NF36 Type: 3RT1075 (S12) | Rating: AC-3 400 A/200 kW; AC-1 430 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1075-2NF36 Type: 3RT1075 (S12) | Rating: AC-3 400 A/200 kW; AC-1 430 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1075-6NP36 Type: 3RT1075 (S12) | Rating: AC-3 400 A/200 kW; AC-1 430 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1075-2NP36 Type: 3RT1075 (S12) | Rating: AC-3 400 A/200 kW; AC-1 430 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1076-6NF36 Type: 3RT1076 (S12) | Rating: AC-3 500 A/250 kW; AC-1 610 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1076-2NF36 Type: 3RT1076 (S12) | Rating: AC-3 500 A/250 kW; AC-1 610 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1076-6NP36 Type: 3RT1076 (S12) | Rating: AC-3 500 A/250 kW; AC-1 610 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input
3RT1076-2NP36 Type: 3RT1076 (S12) | Rating: AC-3 500 A/250 kW; AC-1 610 A | Aux. contacts: 2 NO + 2 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Spring-loaded (aux./ctrl) | Version: Solid-state, 24 V DC input
3RT1054-6PF35 Type: 3RT1054 (S6) | Rating: AC-3 115 A/55 kW; AC-1 160 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1054-6PP35 Type: 3RT1054 (S6) | Rating: AC-3 115 A/55 kW; AC-1 160 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1055-6PF35 Type: 3RT1055 (S6) | Rating: AC-3 150 A/75 kW; AC-1 185 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1055-6PP35 Type: 3RT1055 (S6) | Rating: AC-3 150 A/75 kW; AC-1 185 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1056-6PF35 Type: 3RT1056 (S6) | Rating: AC-3 185 A/90 kW; AC-1 215 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1056-6PP35 Type: 3RT1056 (S6) | Rating: AC-3 185 A/90 kW; AC-1 215 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1064-6PF35 Type: 3RT1064 (S10) | Rating: AC-3 225 A/110 kW; AC-1 275 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1064-6PP35 Type: 3RT1064 (S10) | Rating: AC-3 225 A/110 kW; AC-1 275 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1065-6PF35 Type: 3RT1065 (S10) | Rating: AC-3 265 A/132 kW; AC-1 330 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1065-6PP35 Type: 3RT1065 (S10) | Rating: AC-3 265 A/132 kW; AC-1 330 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1066-6PF35 Type: 3RT1066 (S10) | Rating: AC-3 300 A/160 kW; AC-1 330 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1066-6PP35 Type: 3RT1066 (S10) | Rating: AC-3 300 A/160 kW; AC-1 330 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1075-6PF35 Type: 3RT1075 (S12) | Rating: AC-3 400 A/200 kW; AC-1 430 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1075-6PP35 Type: 3RT1075 (S12) | Rating: AC-3 400 A/200 kW; AC-1 430 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1076-6PF35 Type: 3RT1076 (S12) | Rating: AC-3 500 A/250 kW; AC-1 610 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 96-127 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
3RT1076-6PP35 Type: 3RT1076 (S12) | Rating: AC-3 500 A/250 kW; AC-1 610 A | Aux. contacts: 1 NO + 1 NC (lateral) | Coil: 200-277 V AC/DC | Connection: Screw (aux./control) | Version: Solid-state, 24 V DC input, RLT
Magnetic ContactorsSiemens
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RT10 Contactors S6-S12, Solid-State Drive (55-250 kW)

Brand Siemens·Magnetic Contactors

Available part numbers (48)

3RT1054-6NF36, 3RT1054-2NF36, 3RT1054-6NP36, 3RT1054-2NP36, 3RT1055-6NF36, 3RT1055-2NF36, 3RT1055-6NP36, 3RT1055-2NP36, 3RT1056-6NF36, 3RT1056-2NF36 + 38 more — see full table ↓
