• Siemens SIRIUS 3RT20 Contactors Size S2, AC Coil (18.5-37 kW)
1 1

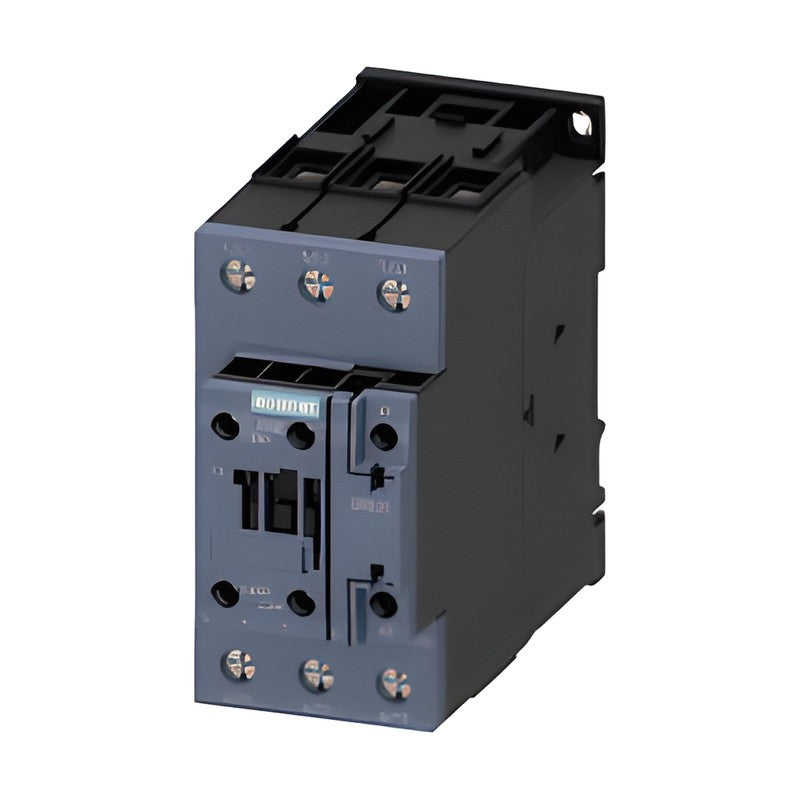

Siemens SIRIUS 3RT20 Contactors Size S2, AC Coil (18.5-37 kW)

Siemens SIRIUS 3RT20 Contactors Size S2, AC Coil (18.5-37 kW)

SIRIUS 3RT203 3-pole power contactors in size S2 with AC solenoid coil for motors from 18.5 to 37 kW at 400 V.

Key features

  • Size S2, AC-3/AC-3e rated, IE3/IE4 ready
  • Ratings 41 to 80 A (18.5 to 37 kW at 400 V), AC-1 60 to 90 A
  • Integrated 1 NO + 1 NC; versions with removable or permanently mounted 2 NO + 2 NC auxiliary switch
  • Screw terminals or spring-loaded terminals (main conductors box terminals)
  • Solenoid coils for 50 Hz, 50/60 Hz, USA/Canada and Japan per catalog coil code table

Specifications

Brand line SIRIUS
Series 3RT20 power contactor
Poles 3 (main contacts)
Utilization AC-3 / AC-3e, IE3/IE4 ready
Mounting Screw / snap-on TH 35 DIN rail
Manufacturer Siemens
Product category Magnetic Contactors
Catalog chapter Contactors for switching motors
Catalog section SIRIUS 3RT contactors, 3-pole up to 250 kW
Source Siemens Catalog IC 10 · 2026, p. 174-175, 192
3RT2035-1AB00 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2035-3AB00 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AF00 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2035-3AF00 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AP00 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2035-3AP00 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AB00 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2036-3AB00 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AF00 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2036-3AF00 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AP00 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2036-3AP00 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AB00 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2037-3AB00 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AF00 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2037-3AF00 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AP00 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2037-3AP00 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AB00 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2038-3AB00 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AF00 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2038-3AF00 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AP00 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2038-3AP00 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AC20 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2035-3AC20 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AG20 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2035-3AG20 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AL20 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2035-3AL20 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AC20 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2036-3AC20 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AG20 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2036-3AG20 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AL20 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2036-3AL20 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AC20 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2037-3AC20 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AG20 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2037-3AG20 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AL20 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2037-3AL20 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AC20 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2038-3AC20 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AG20 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2038-3AG20 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AL20 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2038-3AL20 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AB04 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2035-1AF04 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2035-1AP04 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2036-1AB04 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2036-1AF04 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2036-1AP04 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2037-1AB04 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2037-1AF04 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2037-1AP04 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2038-1AB04 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2038-1AF04 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2038-1AP04 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2035-1CL24-3MA0 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2035-3CL24-3MA0 Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
3RT2036-1CL24-3MA0 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2036-3CL24-3MA0 Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
3RT2037-1CL24-3MA0 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2037-3CL24-3MA0 Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
3RT2038-1CL24-3MA0 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2038-3CL24-3MA0 Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
Magnetic ContactorsSiemens
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RT20 Contactors Size S2, AC Coil (18.5-37 kW)

Brand Siemens·Magnetic Contactors

Available part numbers (68)

3RT2035-1AB00, 3RT2035-3AB00, 3RT2035-1AF00, 3RT2035-3AF00, 3RT2035-1AP00, 3RT2035-3AP00, 3RT2036-1AB00, 3RT2036-3AB00, 3RT2036-1AF00, 3RT2036-3AF00 + 58 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RT2035-1AB00Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2035-3AB00Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AF00Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2035-3AF00Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AP00Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2035-3AP00Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AB00Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2036-3AB00Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AF00Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2036-3AF00Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AP00Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2036-3AP00Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AB00Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2037-3AB00Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AF00Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2037-3AF00Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AP00Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2037-3AP00Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AB00Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2038-3AB00Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AF00Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2038-3AF00Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AP00Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Standard
3RT2038-3AP00Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AC20Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2035-3AC20Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AG20Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2035-3AG20Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AL20Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2035-3AL20Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AC20Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2036-3AC20Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AG20Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2036-3AG20Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2036-1AL20Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2036-3AL20Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AC20Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2037-3AC20Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AG20Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2037-3AG20Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2037-1AL20Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2037-3AL20Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AC20Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2038-3AC20Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AG20Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2038-3AG20Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2038-1AL20Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Standard
3RT2038-3AL20Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Standard
3RT2035-1AB04Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2035-1AF04Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2035-1AP04Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2036-1AB04Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2036-1AF04Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2036-1AP04Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2037-1AB04Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2037-1AF04Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2037-1AP04Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2038-1AB04Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 24 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2038-1AF04Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 110 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2038-1AP04Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50 Hz | Connection: Screw | Version: Removable aux. switch
3RT2035-1CL24-3MA0Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2035-3CL24-3MA0Type: 3RT2035 (S2) | Rating: AC-3 41 A/18.5 kW; AC-1 60 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
3RT2036-1CL24-3MA0Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2036-3CL24-3MA0Type: 3RT2036 (S2) | Rating: AC-3 51 A/22 kW; AC-1 70 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
3RT2037-1CL24-3MA0Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2037-3CL24-3MA0Type: 3RT2037 (S2) | Rating: AC-3 65 A/30 kW; AC-1 80 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
3RT2038-1CL24-3MA0Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Screw | Version: Perm. aux. switch + cover, varistor
3RT2038-3CL24-3MA0Type: 3RT2038 (S2) | Rating: AC-3 80 A/37 kW; AC-1 90 A | Aux. contacts: 2 NO + 2 NC | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded | Version: Perm. aux. switch + cover, varistor
