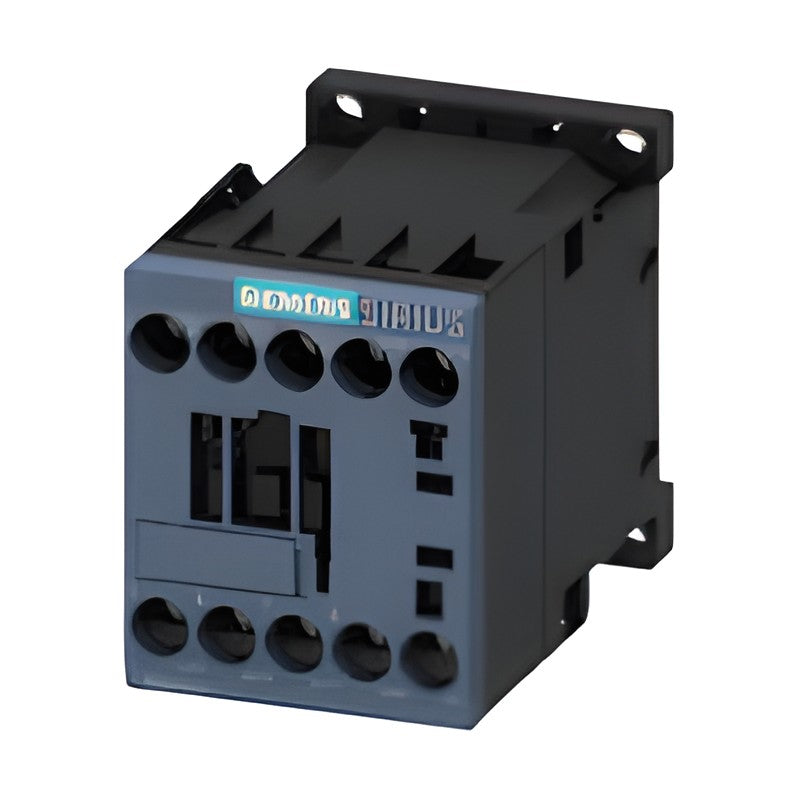

Siemens SIRIUS 3RT20 Coupling Contactors Size S00, 24 V DC (PLC)

Siemens SIRIUS 3RT20 Coupling Contactors Size S00, 24 V DC (PLC)

SIRIUS 3RT201 coupling contactors in size S00 with 24 V DC coils of adapted power consumption for direct control from PLC outputs.

Key features

  • Suitable for solid-state PLC/F-PLC outputs; cannot be expanded with auxiliary switches
  • Operating range 0.7 to 1.25 x Uc (2.8 W) or 0.85 to 1.85 x Uc (1.6 W)
  • Versions without coil circuit, with diode or with suppressor diode integrated
  • Ratings 7 to 12 A (3 to 5.5 kW at 400 V), integrated 1 NO or 1 NC
  • Screw terminals or spring-loaded terminals

Specifications

Brand line SIRIUS
Series 3RT20 power contactor
Poles 3 (main contacts)
Utilization AC-3 / AC-3e, IE3/IE4 ready
Mounting Screw / snap-on TH 35 DIN rail
Coil 24 V DC
Manufacturer Siemens
Product category Magnetic Contactors
Catalog chapter Contactors for switching motors
Catalog section SIRIUS 3RT contactors, 3-pole up to 250 kW
Source Siemens Catalog IC 10 · 2026, p. 179-180
3RT2015-1HB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-2HB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-1HB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-2HB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-1HB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-2HB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-1HB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-2HB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-1HB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-2HB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-1HB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-2HB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-1MB41-0KT0 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-2MB41-0KT0 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-1MB42-0KT0 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-2MB42-0KT0 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-1MB41-0KT0 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-2MB41-0KT0 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-1MB42-0KT0 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-2MB42-0KT0 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-1MB41-0KT0 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-2MB41-0KT0 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-1MB42-0KT0 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-2MB42-0KT0 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-1JB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2015-2JB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2015-1JB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2015-2JB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2016-1JB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2016-2JB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2016-1JB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2016-2JB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2017-1JB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2017-2JB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2017-1JB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2017-2JB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2015-1VB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2015-2VB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2015-1VB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2015-2VB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2016-1VB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2016-2VB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2016-1VB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2016-2VB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2017-1VB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2017-2VB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2017-1VB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2017-2VB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2015-1KB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2015-2KB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2015-1KB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2015-2KB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2016-1KB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2016-2KB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2016-1KB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2016-2KB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2017-1KB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2017-2KB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2017-1KB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2017-2KB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2015-1SB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2015-2SB41 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2015-1SB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2015-2SB42 Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2016-1SB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2016-2SB41 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2016-1SB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2016-2SB42 Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2017-1SB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2017-2SB41 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2017-1SB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2017-2SB42 Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
Magnetic ContactorsSiemens
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RT20 Coupling Contactors Size S00, 24 V DC (PLC)

Brand Siemens·Magnetic Contactors

Available part numbers (72)

3RT2015-1HB41, 3RT2015-2HB41, 3RT2015-1HB42, 3RT2015-2HB42, 3RT2016-1HB41, 3RT2016-2HB41, 3RT2016-1HB42, 3RT2016-2HB42, 3RT2017-1HB41, 3RT2017-2HB41 + 62 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RT2015-1HB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-2HB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-1HB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-2HB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-1HB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-2HB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-1HB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2016-2HB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-1HB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-2HB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-1HB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2017-2HB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.7-1.25 Uc, 2.8 W
3RT2015-1MB41-0KT0Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-2MB41-0KT0Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-1MB42-0KT0Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-2MB42-0KT0Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-1MB41-0KT0Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-2MB41-0KT0Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-1MB42-0KT0Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2016-2MB42-0KT0Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-1MB41-0KT0Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-2MB41-0KT0Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-1MB42-0KT0Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2017-2MB42-0KT0Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, 0.85-1.85 Uc, 1.6 W
3RT2015-1JB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2015-2JB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2015-1JB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2015-2JB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2016-1JB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2016-2JB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2016-1JB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2016-2JB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2017-1JB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2017-2JB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2017-1JB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 2.8 W
3RT2017-2JB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 2.8 W
3RT2015-1VB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2015-2VB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2015-1VB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2015-2VB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2016-1VB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2016-2VB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2016-1VB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2016-2VB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2017-1VB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2017-2VB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2017-1VB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, diode, 1.6 W
3RT2017-2VB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, diode, 1.6 W
3RT2015-1KB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2015-2KB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2015-1KB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2015-2KB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2016-1KB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2016-2KB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2016-1KB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2016-2KB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2017-1KB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2017-2KB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2017-1KB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 2.8 W
3RT2017-2KB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 2.8 W
3RT2015-1SB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2015-2SB41Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2015-1SB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2015-2SB42Type: 3RT2015 (S00) | Rating: AC-3 7 A/3 kW; AC-1 18 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2016-1SB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2016-2SB41Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2016-1SB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2016-2SB42Type: 3RT2016 (S00) | Rating: AC-3 9 A/4 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2017-1SB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2017-2SB41Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NO | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W
3RT2017-1SB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Screw | Version: Coupling, suppr. diode, 1.6 W
3RT2017-2SB42Type: 3RT2017 (S00) | Rating: AC-3 12 A/5.5 kW; AC-1 22 A | Aux. contacts: 1 NC | Connection: Spring-loaded | Version: Coupling, suppr. diode, 1.6 W

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
