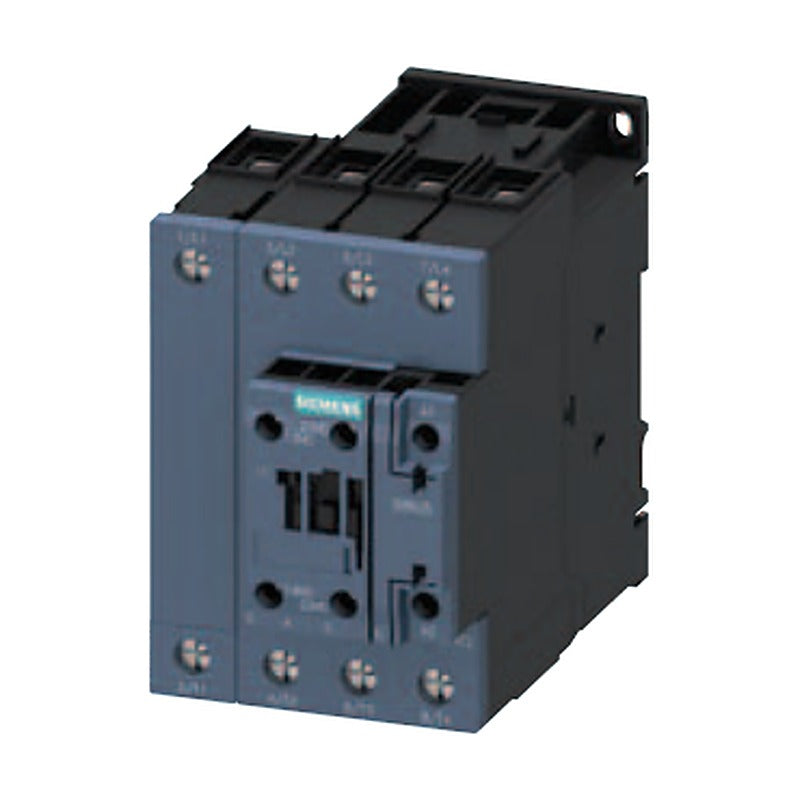

Siemens SIRIUS 3RT25 Contactors, 4-Pole 2 NO + 2 NC (S00-S3)

Siemens SIRIUS 3RT25 Contactors, 4-Pole 2 NO + 2 NC (S00-S3)

SIRIUS 3RT25 4-pole contactors with 2 NO + 2 NC main contacts, used as single devices for pole-changing and changeover applications, sizes S00 to S3 up to 37 kW (AC-3, 400 V).

Key features

  • Main contacts 2 NO + 2 NC; single device for pole-changing (not for reversing)
  • AC-3 ratings up to 80 A / 37 kW at 400 V; AC-1 up to 125 A
  • AC coils, DC coils (S00/S0) or AC/DC electronic coils with varistor (S2/S3)
  • Screw or spring-loaded terminals for S00 and S0; screw terminals for S2/S3
  • S00 NC contact switches max. 4 kW (values NO/NC as printed)

Specifications

Brand Siemens SIRIUS
Series 3RT25
Poles 4 (2 NO + 2 NC main)
Utilization category AC-3 / AC-1
Rated voltage up to 690 V
Source Siemens Catalog IC 10 · 2026, p. 4/39-4/41
3RT2516-1AB00 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Screw
3RT2516-1AF00 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Screw
3RT2516-1AP00 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Screw
3RT2516-1BB40 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V DC | Connection: Screw
3RT2516-1BM40 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 220 V DC | Connection: Screw
3RT2516-2AB00 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded
3RT2516-2AF00 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded
3RT2516-2AP00 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded
3RT2516-2BB40 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V DC | Connection: Spring-loaded
3RT2516-2BM40 Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 220 V DC | Connection: Spring-loaded
3RT2517-1AB00 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Screw
3RT2517-1AF00 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Screw
3RT2517-1AP00 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Screw
3RT2517-1BB40 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Screw
3RT2517-1BM40 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Screw
3RT2517-2AB00 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded
3RT2517-2AF00 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded
3RT2517-2AP00 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded
3RT2517-2BB40 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Spring-loaded
3RT2517-2BM40 Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Spring-loaded
3RT2518-1AB00 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Screw
3RT2518-1AF00 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Screw
3RT2518-1AP00 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Screw
3RT2518-1BB40 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Screw
3RT2518-1BM40 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Screw
3RT2518-2AB00 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded
3RT2518-2AF00 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded
3RT2518-2AP00 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded
3RT2518-2BB40 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Spring-loaded
3RT2518-2BM40 Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Spring-loaded
3RT2526-1AB00 Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2526-1AF00 Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2526-1AP00 Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2526-1BB40 Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V DC | Connection: Screw
3RT2526-1BM40 Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 220 V DC | Connection: Screw
3RT2526-2AB00 Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded
3RT2526-2AF00 Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded
3RT2526-2AP00 Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded
3RT2526-2BB40 Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V DC | Connection: Spring-loaded
3RT2526-2BM40 Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 220 V DC | Connection: Spring-loaded
3RT2535-1AB00 Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2535-1AF00 Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2535-1AP00 Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2535-1NB30 Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2535-1NF30 Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 83...155 V AC/DC | Connection: Screw
3RT2535-1NP30 Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
3RT2536-1AB00 Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2536-1AF00 Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2536-1AP00 Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2536-1NB30 Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2536-1NF30 Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 83...155 V AC/DC | Connection: Screw
3RT2536-1NP30 Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
3RT2544-1AB00 Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2544-1AF00 Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2544-1AP00 Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2544-1NB30 Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2544-1NP30 Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
3RT2545-1AB00 Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2545-1AF00 Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2545-1AP00 Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2545-1NB30 Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2545-1NP30 Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
Magnetic ContactorsSiemens
62 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RT25 Contactors, 4-Pole 2 NO + 2 NC (S00-S3)

Brand Siemens·Magnetic Contactors

Available part numbers (62)

3RT2516-1AB00, 3RT2516-1AF00, 3RT2516-1AP00, 3RT2516-1BB40, 3RT2516-1BM40, 3RT2516-2AB00, 3RT2516-2AF00, 3RT2516-2AP00, 3RT2516-2BB40, 3RT2516-2BM40 + 52 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RT2516-1AB00Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Screw
3RT2516-1AF00Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Screw
3RT2516-1AP00Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Screw
3RT2516-1BB40Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V DC | Connection: Screw
3RT2516-1BM40Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 220 V DC | Connection: Screw
3RT2516-2AB00Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded
3RT2516-2AF00Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded
3RT2516-2AP00Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded
3RT2516-2BB40Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 24 V DC | Connection: Spring-loaded
3RT2516-2BM40Size: S00 | AC-3 (400 V): 9 A / 4 kW | Ie AC-1 (40/60 °C): 18/16 A | Aux. contacts: None | Coil: 220 V DC | Connection: Spring-loaded
3RT2517-1AB00Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Screw
3RT2517-1AF00Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Screw
3RT2517-1AP00Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Screw
3RT2517-1BB40Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Screw
3RT2517-1BM40Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Screw
3RT2517-2AB00Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded
3RT2517-2AF00Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded
3RT2517-2AP00Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded
3RT2517-2BB40Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Spring-loaded
3RT2517-2BM40Size: S00 | AC-3 (400 V): 12/9 A / 5.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Spring-loaded
3RT2518-1AB00Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Screw
3RT2518-1AF00Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Screw
3RT2518-1AP00Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Screw
3RT2518-1BB40Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Screw
3RT2518-1BM40Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Screw
3RT2518-2AB00Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V AC 50/60 Hz | Connection: Spring-loaded
3RT2518-2AF00Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 110 V AC 50/60 Hz | Connection: Spring-loaded
3RT2518-2AP00Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 230 V AC 50/60 Hz | Connection: Spring-loaded
3RT2518-2BB40Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 24 V DC | Connection: Spring-loaded
3RT2518-2BM40Size: S00 | AC-3 (400 V): 16/9 A / 7.5/4 kW | Ie AC-1 (40/60 °C): 22/20 A | Aux. contacts: None | Coil: 220 V DC | Connection: Spring-loaded
3RT2526-1AB00Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2526-1AF00Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2526-1AP00Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2526-1BB40Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V DC | Connection: Screw
3RT2526-1BM40Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 220 V DC | Connection: Screw
3RT2526-2AB00Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Spring-loaded
3RT2526-2AF00Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Spring-loaded
3RT2526-2AP00Size: S0 | AC-3 (400 V): 25 A / 11 kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Spring-loaded
3RT2526-2BB40Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V DC | Connection: Spring-loaded
3RT2526-2BM40Size: S0 | AC-3 (400 V): 25 (20) A / 11 (7.5) kW | Ie AC-1 (40/60 °C): 40/35 A | Aux. contacts: 1 NO + 1 NC | Coil: 220 V DC | Connection: Spring-loaded
3RT2535-1AB00Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2535-1AF00Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2535-1AP00Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2535-1NB30Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2535-1NF30Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 83...155 V AC/DC | Connection: Screw
3RT2535-1NP30Size: S2 | AC-3 (400 V): 35 A / 18.5 kW | Ie AC-1 (40/60 °C): 60/55 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
3RT2536-1AB00Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2536-1AF00Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2536-1AP00Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2536-1NB30Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2536-1NF30Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 83...155 V AC/DC | Connection: Screw
3RT2536-1NP30Size: S2 | AC-3 (400 V): 41 A / 22 kW | Ie AC-1 (40/60 °C): 70/60 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
3RT2544-1AB00Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2544-1AF00Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2544-1AP00Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2544-1NB30Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2544-1NP30Size: S3 | AC-3 (400 V): 65 A / 30 kW | Ie AC-1 (40/60 °C): 100/90 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
3RT2545-1AB00Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz | Connection: Screw
3RT2545-1AF00Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz | Connection: Screw
3RT2545-1AP00Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz | Connection: Screw
3RT2545-1NB30Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 20...33 V AC/DC | Connection: Screw
3RT2545-1NP30Size: S3 | AC-3 (400 V): 80 A / 37 kW | Ie AC-1 (40/60 °C): 125/105 A | Aux. contacts: 1 NO + 1 NC | Coil: 175...280 V AC/DC | Connection: Screw
