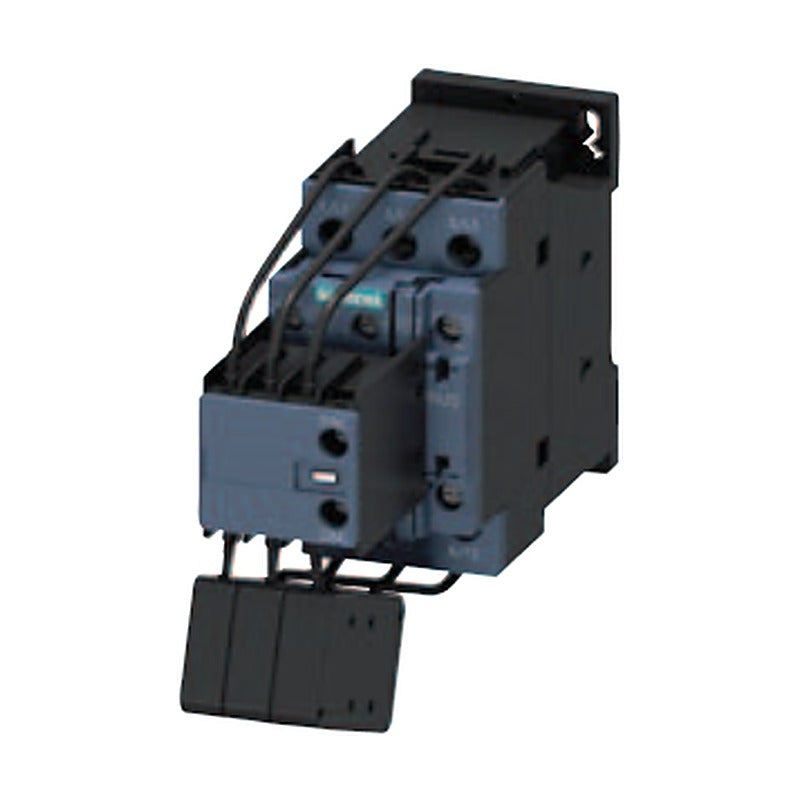

Siemens SIRIUS 3RT26 Capacitor Contactors AC-6b, 3-Pole (S00-S3)

Siemens SIRIUS 3RT26 Capacitor Contactors AC-6b, 3-Pole (S00-S3)

SIRIUS 3RT26 3-pole contactors for switching AC capacitors (utilization category AC-6b) in power factor correction systems, with capacitor ratings up to 100 kvar at 400 V.

Key features

  • Capacitor switching to AC-6b at 60 °C ambient temperature
  • Ratings from 12.5 kvar (S00) to 100 kvar (S3) at 400 V, up to 172 kvar at 690 V
  • Precharge (damping) resistors and leading contacts limit capacitor inrush current
  • AC, DC (S00/S0) or AC/DC electronic coil versions
  • Screw terminals for main, auxiliary and control conductors
  • 3RT2628 with infeed terminal

Specifications

Brand Siemens SIRIUS
Series 3RT26
Poles 3
Utilization category AC-6b
Connection Screw terminals
Ambient temperature Ratings at 60 °C
Source Siemens Catalog IC 10 · 2026, p. 4/47-4/50
3RT2617-1AB03 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50/60 Hz
3RT2617-1AF03 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50/60 Hz
3RT2617-1AP03 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50/60 Hz
3RT2617-1BB43 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 24 V DC
3RT2617-1BF43 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 110 V DC
3RT2617-1AB05 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 24 V AC 50/60 Hz
3RT2617-1AF05 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 110 V AC 50/60 Hz
3RT2617-1AP05 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 230 V AC 50/60 Hz
3RT2617-1BB45 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 24 V DC
3RT2617-1BF45 Size: S00 | Rating 400 V: 12.5 kvar | Rating 690 V: 21 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 110 V DC
3RT2625-1AB05 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2625-1AF05 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2625-1AP05 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2625-1BB45 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V DC
3RT2625-1BF45 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V DC
3RT2625-1NB35 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 21...28 V AC/DC
3RT2625-1NF35 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 95...130 V AC/DC
3RT2625-1NP35 Size: S0 | Rating 400 V: 16.7 kvar | Rating 690 V: 29 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 200...280 V AC/DC
3RT2626-1AB05 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2626-1AF05 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2626-1AP05 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2626-1BB45 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V DC
3RT2626-1BF45 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V DC
3RT2626-1NB35 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 21...28 V AC/DC
3RT2626-1NF35 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 95...130 V AC/DC
3RT2626-1NP35 Size: S0 | Rating 400 V: 20 kvar | Rating 690 V: 34 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 200...280 V AC/DC
3RT2627-1AB05 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2627-1AF05 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2627-1AP05 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2627-1BB45 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V DC
3RT2627-1BF45 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V DC
3RT2627-1NB35 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 21...28 V AC/DC
3RT2627-1NF35 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 95...130 V AC/DC
3RT2627-1NP35 Size: S0 | Rating 400 V: 25 kvar | Rating 690 V: 43 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 200...280 V AC/DC
3RT2628-1AB05 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2628-1AF05 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2628-1AP05 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2628-1BB45 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 24 V DC
3RT2628-1BF45 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 110 V DC
3RT2628-1NB35 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 21...28 V AC/DC
3RT2628-1NF35 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 95...130 V AC/DC
3RT2628-1NP35 Size: S0 | Rating 400 V: 33 kvar | Rating 690 V: 57 kvar | Aux. contacts: 1 NO + 2 NC | Coil: 200...280 V AC/DC
3RT2636-1AB03 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz
3RT2636-1AF03 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz
3RT2636-1AP03 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz
3RT2636-1AB05 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2636-1AF05 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2636-1AP05 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2636-1NB35 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 20...33 V AC/DC
3RT2636-1NF35 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 83...155 V AC/DC
3RT2636-1NP35 Size: S2 | Rating 400 V: 50 kvar | Rating 690 V: 86 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 175...280 V AC/DC
3RT2637-1AB03 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz
3RT2637-1AF03 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz
3RT2637-1AP03 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz
3RT2637-1AB05 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2637-1AF05 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2637-1AP05 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2637-1NB35 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 20...33 V AC/DC
3RT2637-1NF35 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 83...155 V AC/DC
3RT2637-1NP35 Size: S2 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 175...280 V AC/DC
3RT2645-1AB03 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz
3RT2645-1AF03 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz
3RT2645-1AP03 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz
3RT2645-1AB05 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2645-1AF05 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2645-1AP05 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2645-1NB35 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 20...33 V AC/DC
3RT2645-1NF35 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 83...155 V AC/DC
3RT2645-1NP35 Size: S3 | Rating 400 V: 75 kvar | Rating 690 V: 129 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 175...280 V AC/DC
3RT2646-1AB03 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 24 V AC 50 Hz
3RT2646-1AF03 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 110 V AC 50 Hz
3RT2646-1AP03 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 1 NO + 1 NC | Coil: 230 V AC 50 Hz
3RT2646-1AB05 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 24 V AC 50 Hz
3RT2646-1AF05 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 110 V AC 50 Hz
3RT2646-1AP05 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 230 V AC 50 Hz
3RT2646-1NB35 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 20...33 V AC/DC
3RT2646-1NF35 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 83...155 V AC/DC
3RT2646-1NP35 Size: S3 | Rating 400 V: 100 kvar | Rating 690 V: 172 kvar | Aux. contacts: 0 NO + 2 NC | Coil: 175...280 V AC/DC
