• Siemens SIRIUS 3RV2 Covers, Type E Terminal Blocks & Mounting Parts
1 1

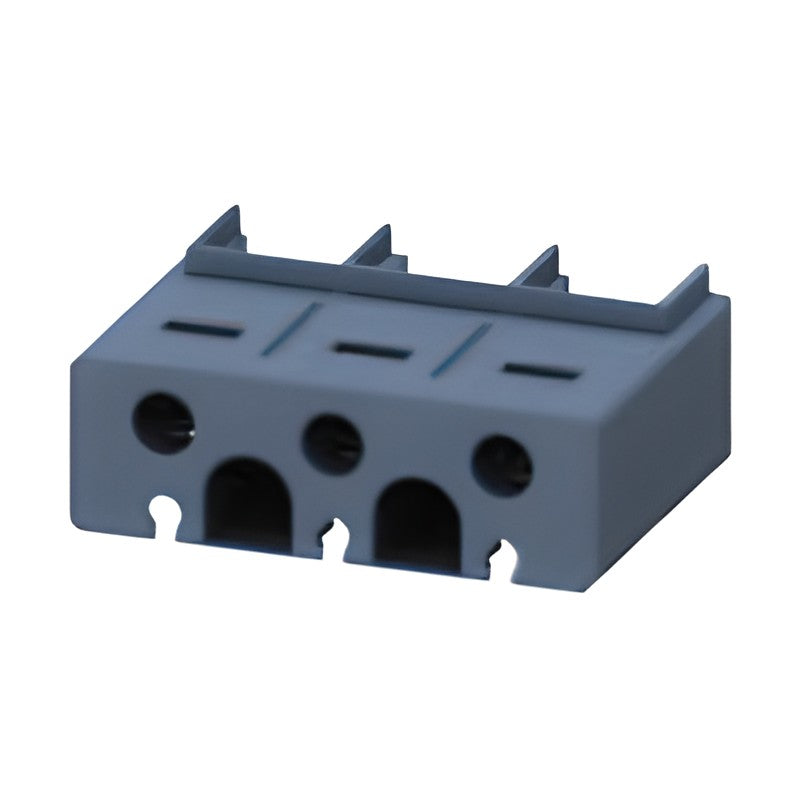

Siemens SIRIUS 3RV2 Covers, Type E Terminal Blocks & Mounting Parts

Siemens SIRIUS 3RV2 Covers, Type E Terminal Blocks & Mounting Parts

Covers, Type E terminal blocks, phase barriers and fixing/labeling accessories for SIRIUS 3RV2 breakers and 3RU2/3RB3 overload relays.

Key features

  • Terminal and box-terminal covers for touch protection and phase clearances
  • Sealable covers for current setting scales
  • Type E terminal blocks and phase barriers for UL 508/UL 60947-4-1 "Self-Protected Combination Motor Controllers"
  • Push-in lugs for screw fixing on mounting plates
  • Screwdriver for spring-loaded terminals and blank labels for SIRIUS devices

Specifications

Product line SIRIUS
Brand Siemens
Catalog section IC 10 ch. 7 Protection equipment
Category Accessories
Compatible with 3RV2 breakers and 3RU2/3RB3 relays
Product group SIRIUS industrial controls accessories
Source Siemens Catalog IC 10 · 2026, p. 7/58-7/59
3RV2908-0P Type: Sealable scale/setting cover (PS 10) | Size: S00–S3 | For: 3RV20, 3RV21, 3RV24, 3RU2
3RV2948-1LA00 Type: Terminal cover for Type E block | Size: S3 | For: 3RV2742 + 3RT2946-4GA07
3RV2948-1K Type: Phase barrier for limiter combination | Size: S3 | For: 3RV2 limiter combinations
3RV2928-0B Type: Push-in lugs for screw fixing (PS 10) | Size: S00, S0 | For: 3RV2
3RV2928-1H Type: Terminal block Type E (UL) | Size: S00, S0 | For: 3RV20 screw terminals
3RT2946-4GA07 Type: Terminal block Type E (UL) | Size: S3 | For: 3RV20 screw terminals
3RV2928-1K Type: Phase barrier Type E (UL) | Size: S00, S0 | For: 3RV20 screw terminals
3RV2938-1K Type: Phase barrier Type E (UL) | Size: S2 | For: 3RV20 screw terminals
AccessoriesSiemens
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RV2 Covers, Type E Terminal Blocks & Mounting Parts

Brand Siemens·Accessories

Available part numbers (8)

3RV2908-0P, 3RV2948-1LA00, 3RV2948-1K, 3RV2928-0B, 3RV2928-1H, 3RT2946-4GA07, 3RV2928-1K, 3RV2938-1K

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RV2908-0PType: Sealable scale/setting cover (PS 10) | Size: S00–S3 | For: 3RV20, 3RV21, 3RV24, 3RU2
3RV2948-1LA00Type: Terminal cover for Type E block | Size: S3 | For: 3RV2742 + 3RT2946-4GA07
3RV2948-1KType: Phase barrier for limiter combination | Size: S3 | For: 3RV2 limiter combinations
3RV2928-0BType: Push-in lugs for screw fixing (PS 10) | Size: S00, S0 | For: 3RV2
3RV2928-1HType: Terminal block Type E (UL) | Size: S00, S0 | For: 3RV20 screw terminals
3RT2946-4GA07Type: Terminal block Type E (UL) | Size: S3 | For: 3RV20 screw terminals
3RV2928-1KType: Phase barrier Type E (UL) | Size: S00, S0 | For: 3RV20 screw terminals
3RV2938-1KType: Phase barrier Type E (UL) | Size: S2 | For: 3RV20 screw terminals
