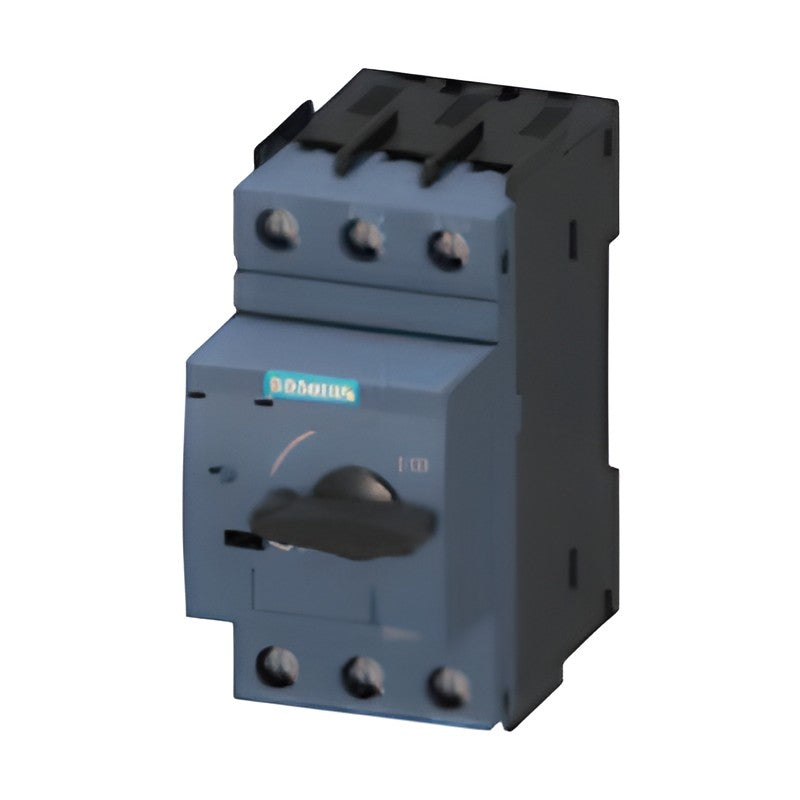

Siemens SIRIUS 3RV23 Breakers for Starter Combinations (S00–S3)

Siemens SIRIUS 3RV23 Breakers for Starter Combinations (S00–S3)

SIRIUS 3RV23 motor starter protectors/circuit breakers provide short-circuit protection only, for starter combinations with separate overload relays.

Key features

  • Without thermal overload release - overload protection by separate overload relay
  • Instantaneous electronic short-circuit release
  • Rated currents 0.16 A to 100 A in sizes S00, S0, S2 and S3
  • Short-circuit breaking capacity up to 100 kA at 400 V AC
  • Screw or spring-loaded terminals (S00/S0)

Specifications

Product line SIRIUS 3RV2
Thermal overload release Without
Aux. switch None (order separately)
Standard IEC 60947-2
Brand Siemens
Catalog section IC 10 ch. 7 Protection equipment
Category Motor Starter Protectors
Poles 3
Rated frequency 50/60 Hz
Mounting DIN rail or screw fixing
Source Siemens Catalog IC 10 · 2026, p. 7/35-7/37
3RV2311-0AC10 Size: S00 | Rated current: 0.16 A | Motor rating: 0.04 kW | Inst. release: 2.1 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0AC20 Size: S00 | Rated current: 0.16 A | Motor rating: 0.04 kW | Inst. release: 2.1 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0BC10 Size: S00 | Rated current: 0.2 A | Motor rating: 0.06 kW | Inst. release: 2.6 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0BC20 Size: S00 | Rated current: 0.2 A | Motor rating: 0.06 kW | Inst. release: 2.6 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0CC10 Size: S00 | Rated current: 0.25 A | Motor rating: 0.06 kW | Inst. release: 3.3 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0CC20 Size: S00 | Rated current: 0.25 A | Motor rating: 0.06 kW | Inst. release: 3.3 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0DC10 Size: S00 | Rated current: 0.32 A | Motor rating: 0.09 kW | Inst. release: 4.2 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0DC20 Size: S00 | Rated current: 0.32 A | Motor rating: 0.09 kW | Inst. release: 4.2 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0EC10 Size: S00 | Rated current: 0.4 A | Motor rating: 0.09 kW | Inst. release: 5.2 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0EC20 Size: S00 | Rated current: 0.4 A | Motor rating: 0.09 kW | Inst. release: 5.2 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0FC10 Size: S00 | Rated current: 0.5 A | Motor rating: 0.12 kW | Inst. release: 6.5 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0FC20 Size: S00 | Rated current: 0.5 A | Motor rating: 0.12 kW | Inst. release: 6.5 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0GC10 Size: S00 | Rated current: 0.63 A | Motor rating: 0.18 kW | Inst. release: 8.2 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0GC20 Size: S00 | Rated current: 0.63 A | Motor rating: 0.18 kW | Inst. release: 8.2 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0HC10 Size: S00 | Rated current: 0.8 A | Motor rating: 0.18 kW | Inst. release: 10 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0HC20 Size: S00 | Rated current: 0.8 A | Motor rating: 0.18 kW | Inst. release: 10 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0JC10 Size: S00 | Rated current: 1 A | Motor rating: 0.25 kW | Inst. release: 13 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0JC20 Size: S00 | Rated current: 1 A | Motor rating: 0.25 kW | Inst. release: 13 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-0KC10 Size: S00 | Rated current: 1.25 A | Motor rating: 0.37 kW | Inst. release: 16 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-0KC20 Size: S00 | Rated current: 1.25 A | Motor rating: 0.37 kW | Inst. release: 16 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1AC10 Size: S00 | Rated current: 1.6 A | Motor rating: 0.55 kW | Inst. release: 21 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1AC20 Size: S00 | Rated current: 1.6 A | Motor rating: 0.55 kW | Inst. release: 21 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1BC10 Size: S00 | Rated current: 2 A | Motor rating: 0.75 kW | Inst. release: 26 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1BC20 Size: S00 | Rated current: 2 A | Motor rating: 0.75 kW | Inst. release: 26 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1CC10 Size: S00 | Rated current: 2.5 A | Motor rating: 0.75 kW | Inst. release: 33 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1CC20 Size: S00 | Rated current: 2.5 A | Motor rating: 0.75 kW | Inst. release: 33 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1DC10 Size: S00 | Rated current: 3.2 A | Motor rating: 1.1 kW | Inst. release: 42 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1DC20 Size: S00 | Rated current: 3.2 A | Motor rating: 1.1 kW | Inst. release: 42 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1EC10 Size: S00 | Rated current: 4 A | Motor rating: 1.5 kW | Inst. release: 52 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1EC20 Size: S00 | Rated current: 4 A | Motor rating: 1.5 kW | Inst. release: 52 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1FC10 Size: S00 | Rated current: 5 A | Motor rating: 1.5 kW | Inst. release: 65 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1FC20 Size: S00 | Rated current: 5 A | Motor rating: 1.5 kW | Inst. release: 65 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1GC10 Size: S00 | Rated current: 6.3 A | Motor rating: 2.2 kW | Inst. release: 82 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1GC20 Size: S00 | Rated current: 6.3 A | Motor rating: 2.2 kW | Inst. release: 82 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1HC10 Size: S00 | Rated current: 8 A | Motor rating: 3 kW | Inst. release: 104 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1HC20 Size: S00 | Rated current: 8 A | Motor rating: 3 kW | Inst. release: 104 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1JC10 Size: S00 | Rated current: 10 A | Motor rating: 4 kW | Inst. release: 130 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1JC20 Size: S00 | Rated current: 10 A | Motor rating: 4 kW | Inst. release: 130 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-1KC10 Size: S00 | Rated current: 12.5 A | Motor rating: 5.5 kW | Inst. release: 163 A | Icu 400 V: 100 kA | Connection: Screw
3RV2311-1KC20 Size: S00 | Rated current: 12.5 A | Motor rating: 5.5 kW | Inst. release: 163 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2311-4AC10 Size: S00 | Rated current: 16 A | Motor rating: 7.5 kW | Inst. release: 208 A | Icu 400 V: 55 kA | Connection: Screw
3RV2311-4AC20 Size: S00 | Rated current: 16 A | Motor rating: 7.5 kW | Inst. release: 208 A | Icu 400 V: 55 kA | Connection: Spring-loaded
3RV2311-4AC20-0BA0 Size: S00 | Rated current: 16 A | Motor rating: 7.5 kW | Inst. release: 208 A | Icu 400 V: 55 kA (-50 °C version) | Connection: Spring-loaded
3RV2321-1AC10 Size: S0 | Rated current: 1.6 A | Motor rating: 0.55 kW | Inst. release: 21 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1AC20 Size: S0 | Rated current: 1.6 A | Motor rating: 0.55 kW | Inst. release: 21 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1BC10 Size: S0 | Rated current: 2 A | Motor rating: 0.75 kW | Inst. release: 26 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1BC20 Size: S0 | Rated current: 2 A | Motor rating: 0.75 kW | Inst. release: 26 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1CC10 Size: S0 | Rated current: 2.5 A | Motor rating: 0.75 kW | Inst. release: 33 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1CC20 Size: S0 | Rated current: 2.5 A | Motor rating: 0.75 kW | Inst. release: 33 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1DC10 Size: S0 | Rated current: 3.2 A | Motor rating: 1.1 kW | Inst. release: 42 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1DC20 Size: S0 | Rated current: 3.2 A | Motor rating: 1.1 kW | Inst. release: 42 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1EC10 Size: S0 | Rated current: 4 A | Motor rating: 1.5 kW | Inst. release: 52 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1EC20 Size: S0 | Rated current: 4 A | Motor rating: 1.5 kW | Inst. release: 52 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1FC10 Size: S0 | Rated current: 5 A | Motor rating: 1.5 kW | Inst. release: 65 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1FC20 Size: S0 | Rated current: 5 A | Motor rating: 1.5 kW | Inst. release: 65 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1GC10 Size: S0 | Rated current: 6.3 A | Motor rating: 2.2 kW | Inst. release: 82 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1GC20 Size: S0 | Rated current: 6.3 A | Motor rating: 2.2 kW | Inst. release: 82 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1HC10 Size: S0 | Rated current: 8 A | Motor rating: 3 kW | Inst. release: 104 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1HC20 Size: S0 | Rated current: 8 A | Motor rating: 3 kW | Inst. release: 104 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1JC10 Size: S0 | Rated current: 10 A | Motor rating: 4 kW | Inst. release: 130 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1JC20 Size: S0 | Rated current: 10 A | Motor rating: 4 kW | Inst. release: 130 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-1KC10 Size: S0 | Rated current: 12.5 A | Motor rating: 5.5 kW | Inst. release: 163 A | Icu 400 V: 100 kA | Connection: Screw
3RV2321-1KC20 Size: S0 | Rated current: 12.5 A | Motor rating: 5.5 kW | Inst. release: 163 A | Icu 400 V: 100 kA | Connection: Spring-loaded
3RV2321-4AC10 Size: S0 | Rated current: 16 A | Motor rating: 7.5 kW | Inst. release: 208 A | Icu 400 V: 55 kA | Connection: Screw
3RV2321-4AC20 Size: S0 | Rated current: 16 A | Motor rating: 7.5 kW | Inst. release: 208 A | Icu 400 V: 55 kA | Connection: Spring-loaded
3RV2321-4BC10 Size: S0 | Rated current: 20 A | Motor rating: 7.5 kW | Inst. release: 260 A | Icu 400 V: 55 kA | Connection: Screw
3RV2321-4BC20 Size: S0 | Rated current: 20 A | Motor rating: 7.5 kW | Inst. release: 260 A | Icu 400 V: 55 kA | Connection: Spring-loaded
3RV2321-4CC10 Size: S0 | Rated current: 22 A | Motor rating: 11 kW | Inst. release: 286 A | Icu 400 V: 55 kA | Connection: Screw
3RV2321-4CC20 Size: S0 | Rated current: 22 A | Motor rating: 11 kW | Inst. release: 286 A | Icu 400 V: 55 kA | Connection: Spring-loaded
3RV2321-4DC10 Size: S0 | Rated current: 25 A | Motor rating: 11 kW | Inst. release: 325 A | Icu 400 V: 55 kA | Connection: Screw
3RV2321-4DC20 Size: S0 | Rated current: 25 A | Motor rating: 11 kW | Inst. release: 325 A | Icu 400 V: 55 kA | Connection: Spring-loaded
3RV2321-4NC10 Size: S0 | Rated current: 28 A | Motor rating: 15 kW | Inst. release: 364 A | Icu 400 V: 55 kA | Connection: Screw
3RV2321-4NC20 Size: S0 | Rated current: 28 A | Motor rating: 15 kW | Inst. release: 364 A | Icu 400 V: 55 kA | Connection: Spring-loaded
3RV2321-4EC10 Size: S0 | Rated current: 32 A | Motor rating: 15 kW | Inst. release: 400 A | Icu 400 V: 55 kA | Connection: Screw
3RV2321-4EC20 Size: S0 | Rated current: 32 A | Motor rating: 15 kW | Inst. release: 400 A | Icu 400 V: 55 kA | Connection: Spring-loaded
3RV2321-4PC10 Size: S0 | Rated current: 36 A | Motor rating: 18.5 kW | Inst. release: 432 A | Icu 400 V: 20 kA | Connection: Screw
3RV2321-4FC10 Size: S0 | Rated current: 40 A | Motor rating: 18.5 kW | Inst. release: 480 A | Icu 400 V: 20 kA | Connection: Screw
3RV2321-4AC20-0BA0 Size: S0 | Rated current: 16 A | Motor rating: 7.5 kW | Inst. release: 208 A | Icu 400 V: 55 kA (-50 °C version) | Connection: Spring-loaded
3RV2331-4SC10 Size: S2 | Rated current: 14 A | Motor rating: 5.5 kW | Inst. release: 208 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4TC10 Size: S2 | Rated current: 17 A | Motor rating: 7.5 kW | Inst. release: 260 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4BC10 Size: S2 | Rated current: 20 A | Motor rating: 7.5 kW | Inst. release: 260 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4DC10 Size: S2 | Rated current: 25 A | Motor rating: 11 kW | Inst. release: 325 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4EC10 Size: S2 | Rated current: 32 A | Motor rating: 15 kW | Inst. release: 416 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4PC10 Size: S2 | Rated current: 36 A | Motor rating: 18.5 kW | Inst. release: 520 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4UC10 Size: S2 | Rated current: 40 A | Motor rating: 18.5 kW | Inst. release: 585 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4VC10 Size: S2 | Rated current: 45 A | Motor rating: 22 kW | Inst. release: 650 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4WC10 Size: S2 | Rated current: 52 A | Motor rating: 22 kW | Inst. release: 741 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4XC10 Size: S2 | Rated current: 59 A | Motor rating: 30 kW | Inst. release: 845 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4JC10 Size: S2 | Rated current: 65 A | Motor rating: 30 kW | Inst. release: 845 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4KC10 Size: S2 | Rated current: 73 A | Motor rating: 37 kW | Inst. release: 949 A | Icu 400 V: 65 kA | Connection: Screw
3RV2331-4RC10 Size: S2 | Rated current: 80 A | Motor rating: 37 kW | Inst. release: 1 040 A | Icu 400 V: 65 kA | Connection: Screw
3RV2332-4SC10 Size: S2 | Rated current: 14 A | Motor rating: 5.5 kW | Inst. release: 208 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4TC10 Size: S2 | Rated current: 17 A | Motor rating: 7.5 kW | Inst. release: 260 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4BC10 Size: S2 | Rated current: 20 A | Motor rating: 7.5 kW | Inst. release: 260 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4DC10 Size: S2 | Rated current: 25 A | Motor rating: 11 kW | Inst. release: 325 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4EC10 Size: S2 | Rated current: 32 A | Motor rating: 15 kW | Inst. release: 416 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4PC10 Size: S2 | Rated current: 36 A | Motor rating: 18.5 kW | Inst. release: 520 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4UC10 Size: S2 | Rated current: 40 A | Motor rating: 18.5 kW | Inst. release: 585 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4VC10 Size: S2 | Rated current: 45 A | Motor rating: 22 kW | Inst. release: 650 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4WC10 Size: S2 | Rated current: 52 A | Motor rating: 22 kW | Inst. release: 741 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4XC10 Size: S2 | Rated current: 59 A | Motor rating: 30 kW | Inst. release: 845 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4JC10 Size: S2 | Rated current: 65 A | Motor rating: 30 kW | Inst. release: 845 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4KC10 Size: S2 | Rated current: 73 A | Motor rating: 37 kW | Inst. release: 949 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2332-4RC10 Size: S2 | Rated current: 80 A | Motor rating: 37 kW | Inst. release: 1 040 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2341-4FC10 Size: S3 | Rated current: 40 A | Motor rating: 18.5 kW | Inst. release: 520 A | Icu 400 V: 65 kA | Connection: Screw
3RV2341-4HC10 Size: S3 | Rated current: 50 A | Motor rating: 22 kW | Inst. release: 650 A | Icu 400 V: 65 kA | Connection: Screw
3RV2341-4JC10 Size: S3 | Rated current: 63 A | Motor rating: 30 kW | Inst. release: 819 A | Icu 400 V: 65 kA | Connection: Screw
3RV2341-4KC10 Size: S3 | Rated current: 75 A | Motor rating: 37 kW | Inst. release: 975 A | Icu 400 V: 65 kA | Connection: Screw
3RV2341-4RC10 Size: S3 | Rated current: 84 A | Motor rating: 45 kW | Inst. release: 1 170 A | Icu 400 V: 65 kA | Connection: Screw
3RV2341-4YC10 Size: S3 | Rated current: 93 A | Motor rating: 45 kW | Inst. release: 1 300 A | Icu 400 V: 65 kA | Connection: Screw
3RV2341-4MC10 Size: S3 | Rated current: 100 A | Motor rating: 45, 55 kW | Inst. release: 1 300 A | Icu 400 V: 65 kA | Connection: Screw
3RV2342-4FC10 Size: S3 | Rated current: 40 A | Motor rating: 18.5 kW | Inst. release: 520 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2342-4HC10 Size: S3 | Rated current: 50 A | Motor rating: 22 kW | Inst. release: 650 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2342-4JC10 Size: S3 | Rated current: 63 A | Motor rating: 30 kW | Inst. release: 819 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2342-4KC10 Size: S3 | Rated current: 75 A | Motor rating: 37 kW | Inst. release: 975 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2342-4RC10 Size: S3 | Rated current: 84 A | Motor rating: 45 kW | Inst. release: 1 170 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2342-4YC10 Size: S3 | Rated current: 93 A | Motor rating: 45 kW | Inst. release: 1 300 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
3RV2342-4MC10 Size: S3 | Rated current: 100 A | Motor rating: 45, 55 kW | Inst. release: 1 300 A | Icu 400 V: 100 kA (high Icu) | Connection: Screw
