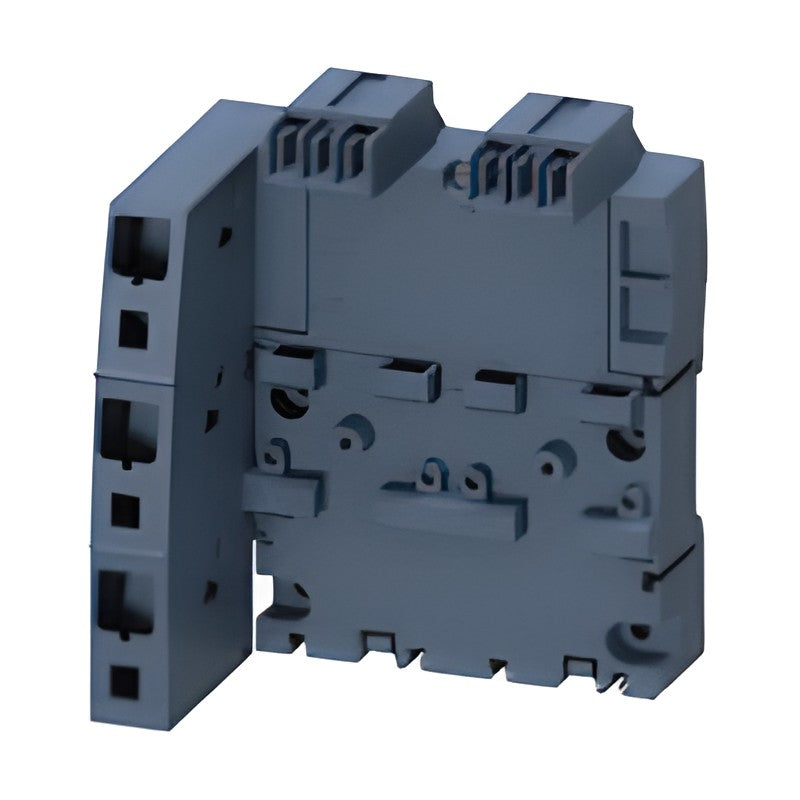

Siemens SIRIUS 3RV29 Infeed System (S00/S0, 63 A)

Siemens SIRIUS 3RV29 Infeed System (S00/S0, 63 A)

The SIRIUS 3RV29 infeed system distributes power to 3RV2 motor starter protectors and load feeders in sizes S00 and S0 up to 63 A without tools.

Key features

  • 3-phase busbars with infeed (left or right) and expansion modules for 2 or 3 breakers
  • Plug-in connectors for breakers with screw or spring-loaded terminals, incl. 3RV1011
  • Contactor bases for direct-on-line and reversing starters
  • Terminal blocks for integrating 1-, 2- and 3-phase components
  • Assembly kits for constructing spring-loaded infeed systems
  • Rated current 63 A, up to 600 V AC (UL/CSA)

Specifications

Product line SIRIUS 3RV2
Rated current 63 A
Brand Siemens
Catalog section IC 10 ch. 7 Protection equipment
Category Accessories
Compatible with 3RV2 motor starter protectors/CBs
Product group SIRIUS industrial controls accessories
Source Siemens Catalog IC 10 · 2026, p. 7/70-7/72
3RV2917-1A Type: 3-phase busbar with infeed, left | Size: S00, S0 | Details: For 2 breakers, incl. end cover
3RV2917-1E Type: 3-phase busbar with infeed, right | Size: S00, S0 | Details: For 2 breakers, incl. end cover
3RV2917-4A Type: 3-phase busbar for expansion | Size: S00, S0 | Details: For 2 breakers, incl. expansion plug
3RV2917-4B Type: 3-phase busbar for expansion | Size: S00, S0 | Details: For 3 breakers, incl. expansion plug
3RV2917-5AA00 Type: Plug-in connector, spring-loaded | Size: S00 | Details: Single-unit packaging
3RV2927-5AA00 Type: Plug-in connector, spring-loaded | Size: S0 | Details: Single-unit packaging
3RV2917-5A Type: Plug-in connector, spring-loaded | Size: S00 | Details: Multi-unit packaging (10)
3RV2927-5A Type: Plug-in connector, spring-loaded | Size: S0 | Details: Multi-unit packaging (10)
3RV2917-5CA00 Type: Plug-in connector, screw | Size: S00 | Details: Single-unit packaging
3RV1927-5AA00 Type: Plug-in connector, screw | Size: S0 | Details: Single-unit packaging
3RV2917-5C Type: Plug-in connector, screw | Size: S00 | Details: Multi-unit packaging (10)
3RV1927-5A Type: Plug-in connector, screw | Size: S0 | Details: Multi-unit packaging (10)
3RV1917-5CA00 Type: Plug-in connector for 3RV1011, screw | Size: S00 | Details: Single-unit packaging
3RV1917-5C Type: Plug-in connector for 3RV1011, screw | Size: S00 | Details: Multi-unit packaging (10)
3RV2917-7AA00 Type: Contactor base | Size: S00 | Details: Direct-on-line or reversing starters
3RV2927-7AA00 Type: Contactor base | Size: S00, S0 | Details: Direct-on-line or reversing starters
3RV2917-5D Type: Terminal block | Size: S00, S0 | Details: 1-, 2- and 3-phase components
3RV2917-5FA00 Type: Terminal block for device infeed | Size: S00, S0 | Details: Single-unit packaging
3RV1917-7B Type: TH 35 DIN rail, 45 mm wide | Size: S00, S0 | Details: For mounting on 3-phase busbars
3RV2917-5E Type: Extra-wide expansion plug | Size: S00, S0 | Details: 10 mm gap for wiring, 63 A
3RV2917-5BA00 Type: Expansion plug (spare part) | Size: S00, S0 | Details: 63 A
3RV2917-6A Type: End cover (spare part) | Size: S00, S0 | Details: Multi-unit packaging (10)
3RV2907-1AB00 Type: Basic set for two feeders | Size: S00, S0 | Details: Busbar w/ infeed, connectors, bases
3RV2907-4AB00 Type: Expansion set for two feeders | Size: S00, S0 | Details: Busbar, connectors, contactor bases
3RV2907-4BB00 Type: Expansion set for three feeders | Size: S00, S0 | Details: Busbar, connectors, contactor bases
AccessoriesSiemens
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIRIUS 3RV29 Infeed System (S00/S0, 63 A)

Brand Siemens·Accessories

Available part numbers (25)

3RV2917-1A, 3RV2917-1E, 3RV2917-4A, 3RV2917-4B, 3RV2917-5AA00, 3RV2927-5AA00, 3RV2917-5A, 3RV2927-5A, 3RV2917-5CA00, 3RV1927-5AA00 + 15 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RV2917-1AType: 3-phase busbar with infeed, left | Size: S00, S0 | Details: For 2 breakers, incl. end cover
3RV2917-1EType: 3-phase busbar with infeed, right | Size: S00, S0 | Details: For 2 breakers, incl. end cover
3RV2917-4AType: 3-phase busbar for expansion | Size: S00, S0 | Details: For 2 breakers, incl. expansion plug
3RV2917-4BType: 3-phase busbar for expansion | Size: S00, S0 | Details: For 3 breakers, incl. expansion plug
3RV2917-5AA00Type: Plug-in connector, spring-loaded | Size: S00 | Details: Single-unit packaging
3RV2927-5AA00Type: Plug-in connector, spring-loaded | Size: S0 | Details: Single-unit packaging
3RV2917-5AType: Plug-in connector, spring-loaded | Size: S00 | Details: Multi-unit packaging (10)
3RV2927-5AType: Plug-in connector, spring-loaded | Size: S0 | Details: Multi-unit packaging (10)
3RV2917-5CA00Type: Plug-in connector, screw | Size: S00 | Details: Single-unit packaging
3RV1927-5AA00Type: Plug-in connector, screw | Size: S0 | Details: Single-unit packaging
3RV2917-5CType: Plug-in connector, screw | Size: S00 | Details: Multi-unit packaging (10)
3RV1927-5AType: Plug-in connector, screw | Size: S0 | Details: Multi-unit packaging (10)
3RV1917-5CA00Type: Plug-in connector for 3RV1011, screw | Size: S00 | Details: Single-unit packaging
3RV1917-5CType: Plug-in connector for 3RV1011, screw | Size: S00 | Details: Multi-unit packaging (10)
3RV2917-7AA00Type: Contactor base | Size: S00 | Details: Direct-on-line or reversing starters
3RV2927-7AA00Type: Contactor base | Size: S00, S0 | Details: Direct-on-line or reversing starters
3RV2917-5DType: Terminal block | Size: S00, S0 | Details: 1-, 2- and 3-phase components
3RV2917-5FA00Type: Terminal block for device infeed | Size: S00, S0 | Details: Single-unit packaging
3RV1917-7BType: TH 35 DIN rail, 45 mm wide | Size: S00, S0 | Details: For mounting on 3-phase busbars
3RV2917-5EType: Extra-wide expansion plug | Size: S00, S0 | Details: 10 mm gap for wiring, 63 A
3RV2917-5BA00Type: Expansion plug (spare part) | Size: S00, S0 | Details: 63 A
3RV2917-6AType: End cover (spare part) | Size: S00, S0 | Details: Multi-unit packaging (10)
3RV2907-1AB00Type: Basic set for two feeders | Size: S00, S0 | Details: Busbar w/ infeed, connectors, bases
3RV2907-4AB00Type: Expansion set for two feeders | Size: S00, S0 | Details: Busbar, connectors, contactor bases
3RV2907-4BB00Type: Expansion set for three feeders | Size: S00, S0 | Details: Busbar, connectors, contactor bases
